EB-701JK
Mounting Bracket for Ingenico
LANE3000 or Square Terminal
Quick Installation Guide
EB-701JK Mounting Bracket for Square Terminal
1.

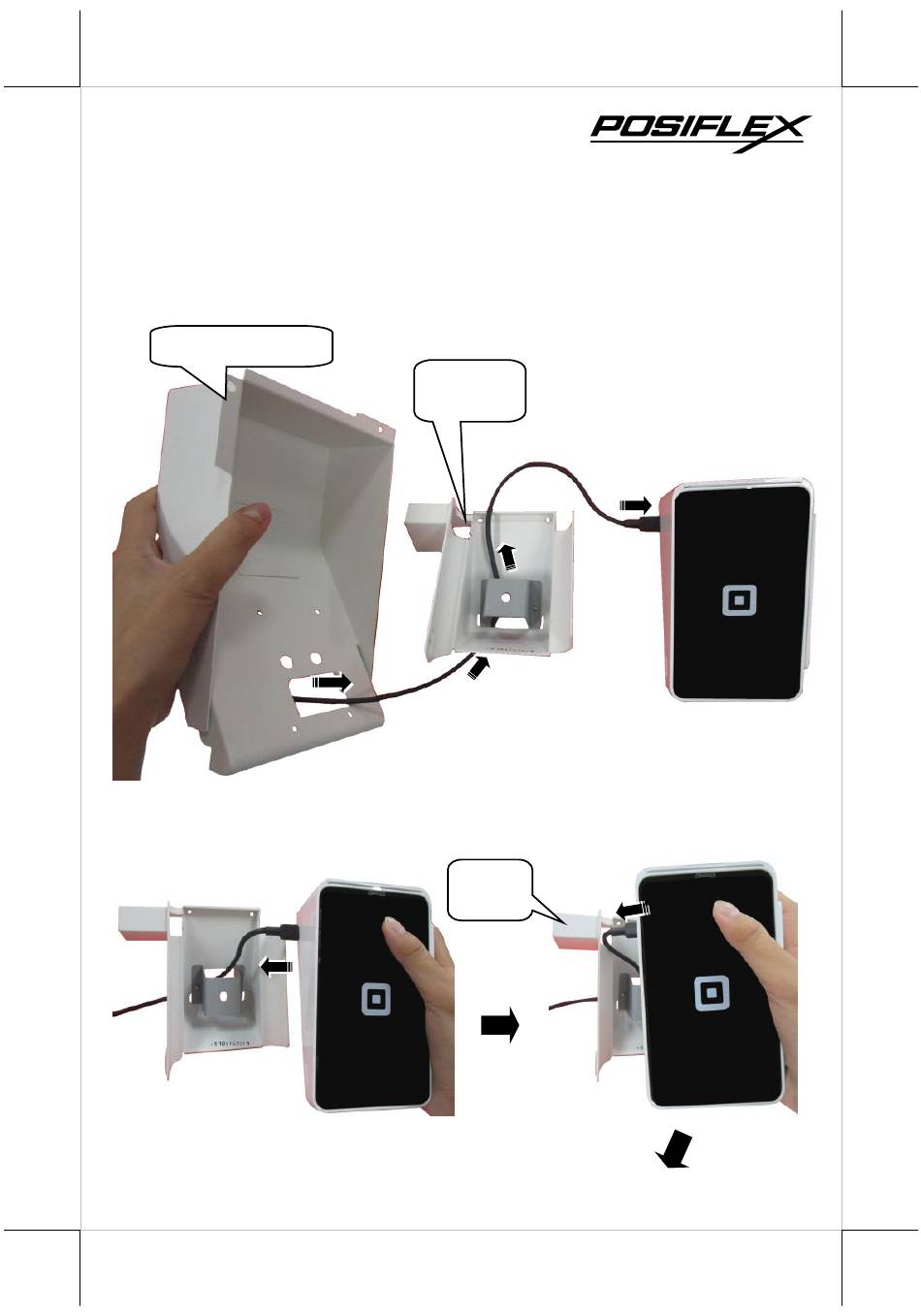

Pass the type-C cable through the payment bracket 1 and payment
bracket, and then connect the cable to the Square terminal.
Payment bracket 1
2.
Install the Square terminal into the payment bracket 2. Make sure the
cable hide into the cable cover like the below picture.
Payment
bracket 2
Cable
Cover
1
