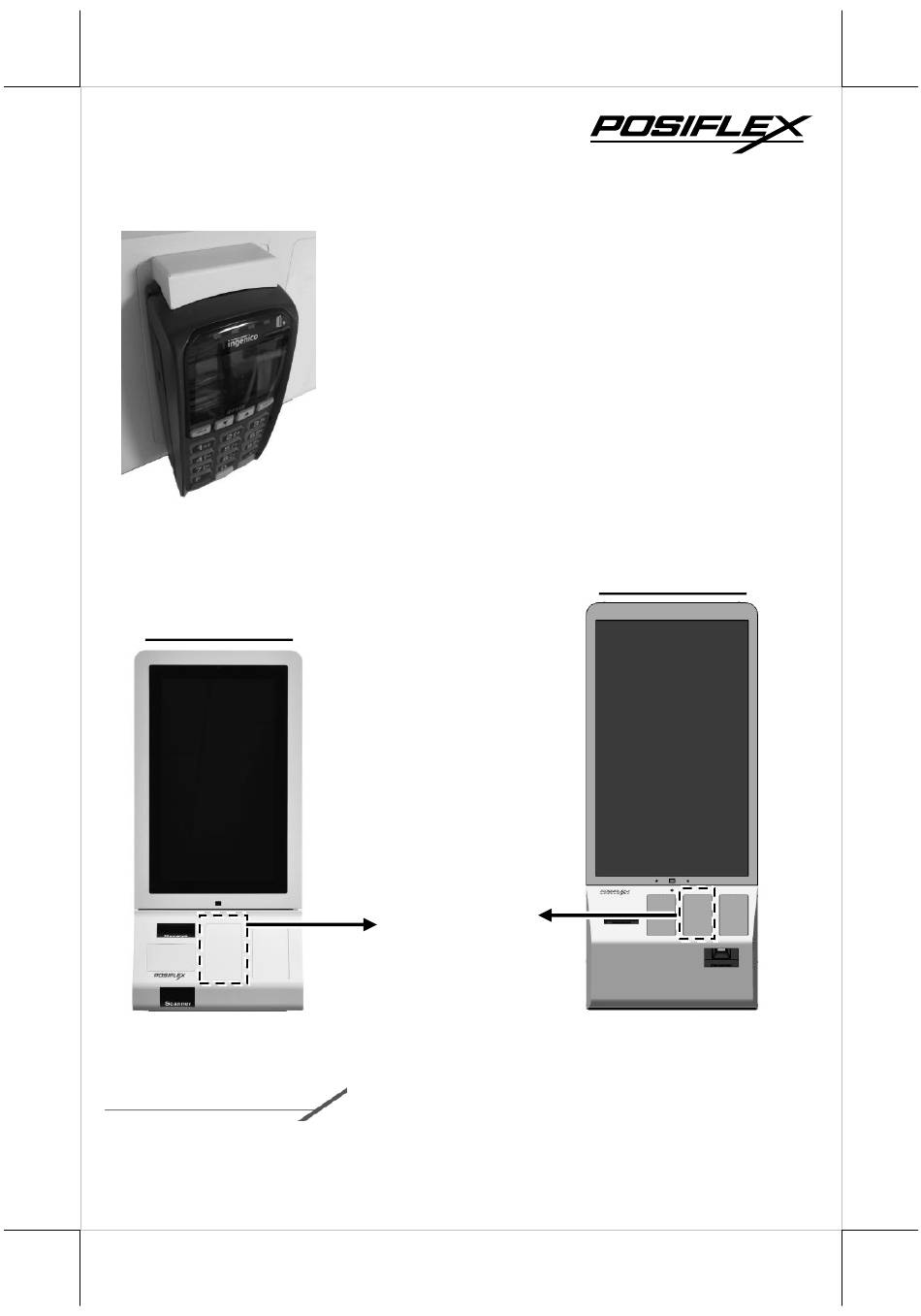

EB-100
Mounting Bracket for Ingenico
Payment Device IPP-350
Quick Installation Guide
Ingenico Payment Device IPP-350 (for TK-21xx/32xx Series)
TK-21xx Series
EB-100 Ver. A0
Package Contents
EB-100 Mounting Bracket Kits..........(x 1)
Ingenico Payment
Device IPP-350
1
TK-32xx Series
Advertisement
Related Manuals for POSIFLEX EB-100
Summary of Contents for POSIFLEX EB-100
- Page 1 EB-100 Mounting Bracket for Ingenico Payment Device IPP-350 Quick Installation Guide Package Contents EB-100 Mounting Bracket Kits……….(x 1) Ingenico Payment Device IPP-350 (for TK-21xx/32xx Series) TK-32xx Series TK-21xx Series Ingenico Payment Device IPP-350 EB-100 Ver. A0...
- Page 2 IPP3XX Cradle from Ingenico Before installing, make sure you have IPP3XX cradle for this EB-100 mounting bracket kits. And this is not made or sold by Posiflex. Please contact your contact window in Ingenico for this IPP3XX cradle. The ordering information as shown in below table.
- Page 3 EB-100 Mounting Bracket for Ingenico Payment Device IPP-350 (for TK-21xx/32xx Series) ✽ If you receive the TK-21xx/32xx Series with metal plate pre-installed, you can skip directly to Step 4. Turn key to the right to open the front door of the kiosk.
- Page 4 Put the black Velcro tape pass through the metal plate like the below picture. Fix the ivory front plate to the metal plate of the kiosk with four Nylon hex nuts. Fix the IPP3XX cradle to the ivory front plate of the kiosk with four M4- 8L screws.
- Page 5 Make the cable of Ingenico payment device pass through the IPP3XX cradle into the belly system unit like the below picture. There is a hook on the bottom side of IPP3XX cradle. Install the Ingenico payment device to the IPP3XX cradle from bottom side. Make sure the small hook of the IPP3XX cradle insert into the slot of the IPP-350 and then push the IPP-350 to the end.
- Page 6 Fix the ivory cable cap to the Ingenico payment device with two M4-8L screws. The cable can be sorted out like the below picture. 10. Installation complete.
