EB-103EK
Mounting Bracket for Ingenico
Payment Device MOVE 5000F
Quick Installation Guide
EB-103EK Mounting Bracket for Ingenico Payment Device
MOVE 5000F
1.

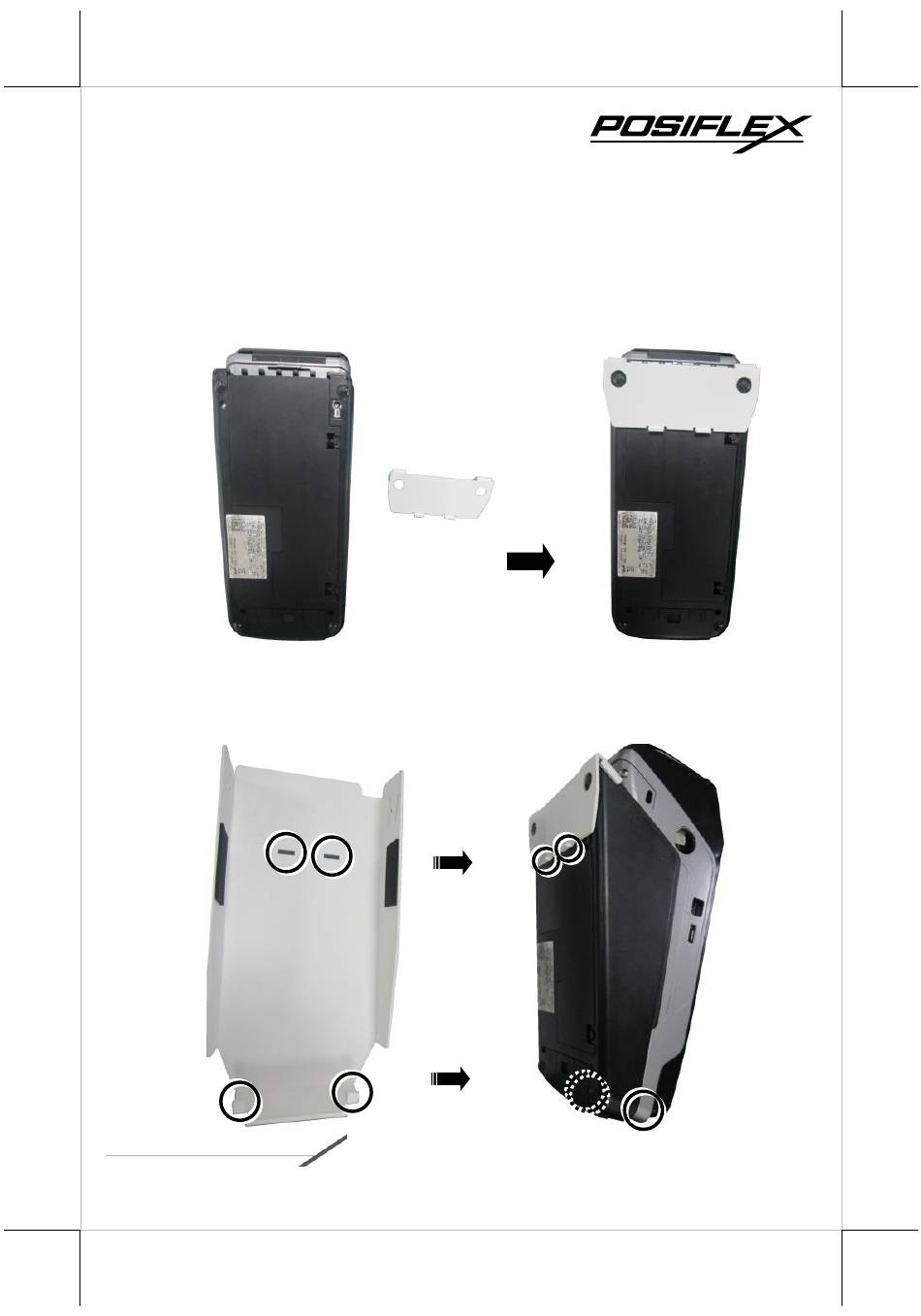

Make the rear side of the MOVE 5000F device face to you, and then put
the support bracket onto the payment device like the below pictures.
2.
Install the payment bracket onto the MOVE 5000F device. Make sure the
two small protruding parts are insert into the two slots of the payment
bracket. And the bottom of the MOVE 5000F device is hooked by the
hooks of the payment bracket.
EB-103EK Ver. A0
1
Advertisement
Related Manuals for POSIFLEX EB-103EK
Summary of Contents for POSIFLEX EB-103EK
- Page 1 Mounting Bracket for Ingenico Payment Device MOVE 5000F Quick Installation Guide EB-103EK Mounting Bracket for Ingenico Payment Device MOVE 5000F Make the rear side of the MOVE 5000F device face to you, and then put the support bracket onto the payment device like the below pictures.
- Page 2 Fix the two side brackets on both sides with two countersunk screws. Please make sure the longer side be put into the inner slot, and the shorter side be put into the outer slot. Fix the two countersunk screws on both sides. Shorter side Longer...
- Page 3 Fix the middle bracket to the payment bracket with four hex nuts. Put the payment device onto the holder bracket, and make sure the two small protruding parts insert into the two slots of the holder bracket like the below pictures.
- Page 4 Fix the bracket with two M3 screws. Unlock and open the front door. 90゜ 1) Lift the lever on the left side of the touch monitor, and then 2) gently tilt the touch monitor up. 3) Then use the touch monitor support bracket to support the touch monitor.
- Page 5 2) While lifting the lever, gently tilt the touch monitor up. 3) Use the touch monitor support bracket to support the touch monitor.
- Page 6 There are two hex nuts on the right side of the kiosk. Loosen the two hex nuts and then remove the side cover bracket.
- Page 7 10. Fix the MOVE 5000F device with the mounting bracket onto the rear side of the touch monitor with four #6/32 screws.
- Page 8 This picture is taking the 15.6” touch monitor as an example. 11. Installation completed. ※ The product information and specifications are subject to change without prior notice. To get more detailed information of EB-103EK, please contact the service team of Posiflex.
