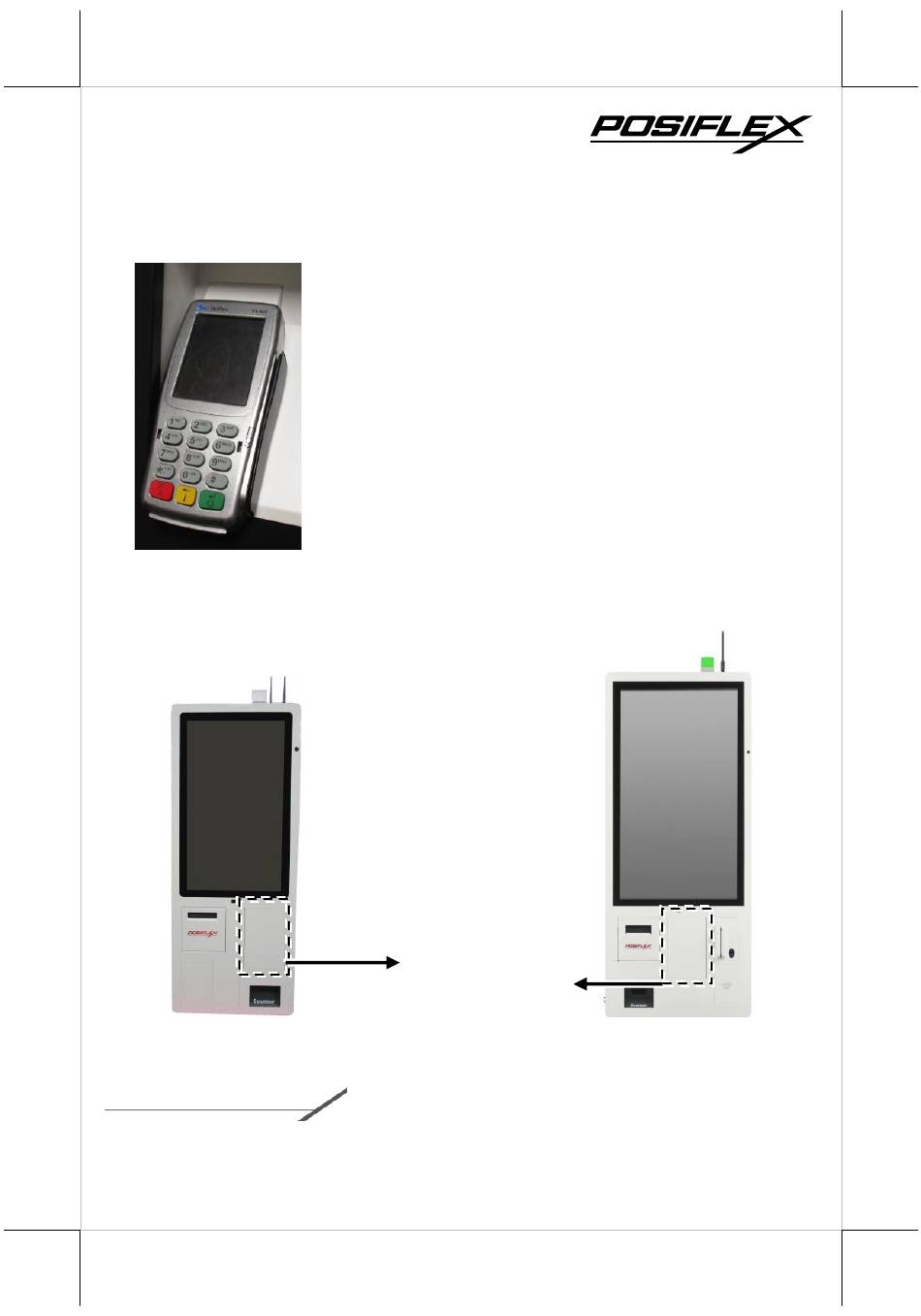

- Page 1 EB-200JK Mounting Bracket for VeriFone Payment Device VX820 Quick Installation Guide Package Contents EB-200JK Mounting Bracket Kit….….(x 1) Ingenico Payment Device VX820 Custom Bracket for Ingenico Payment Device IPP-350 EB-200JK Ver. A0...
- Page 2 Support bracket (x 1) hex nut (x 1), M2 screws (x 2), M4 screws (x 2) EB-200JK Mounting Bracket for VeriFone Payment Device VX820 Open the touch monitor. For JK-24xx/27xx, unlock the touch monitor. Then you can open the...
- Page 3 For JK-32xx, unlock the touch monitor. Hold two sides of the touch monitor and then gently pull it out towards you slowly. Once the crank rod stopper drops down slowly begin to release the touch monitor until it stops. Crank Rod Stopper for Touch Monitor...
- Page 4 There are four hex nuts in old version of JK series touch monitor. Remove the middle ivory metal plate of the belly system unit of the kiosk by removing four nuts. Then install the card reader holder on the empty space of the belly system unit of the kiosk with four nuts.
- Page 5 Fix the support bracket to the kiosk with two M4 screws.
- Page 6 Make the VX820 payment device cable pass through the hole and then put the payment device to the kiosk from bottom side like the below picture. Put the payment device to the kiosk from bottom side.
- Page 7 Fix the payment device with the metal plate with two M2 screws.
- Page 8 Fix the cable cover bracket back with one hex nut. Sort the payment device cable like the below picture.
