To stop datalogging, press the LOGGER button for >2 seconds. "DATALOGGER" will change
3.
to "DATA" and the meter will count down through the recorded data.
NOTE: To avoid corrupting any data, do not remove the memory card without properly ending
the record function.
Time/Date/Sample Rate Check
Press and Hold the TIME button for >2 seconds and the display will cycle through the date, time and
sample rate information.
SD Card Data Structure
1. When the SD card if first inserted into the datalogger the folder TMC01 is created.
2. The first datalogging session will then create a file TMC01001.XLS. All data will be saved to
this file until the number of columns reaches 30,000.
3. After 30, 000 columns a new file, TMC01002.XLS is created. This is repeated every 30,000
columns until TMC01099.XLS. At this point a new folder, TMC02 is created and the process is
repeated. TMC10 is the final folder.
Transferring Data to a PC
1. Remove the memory card from the datalogger and plug it into the SD card slot on the PC.

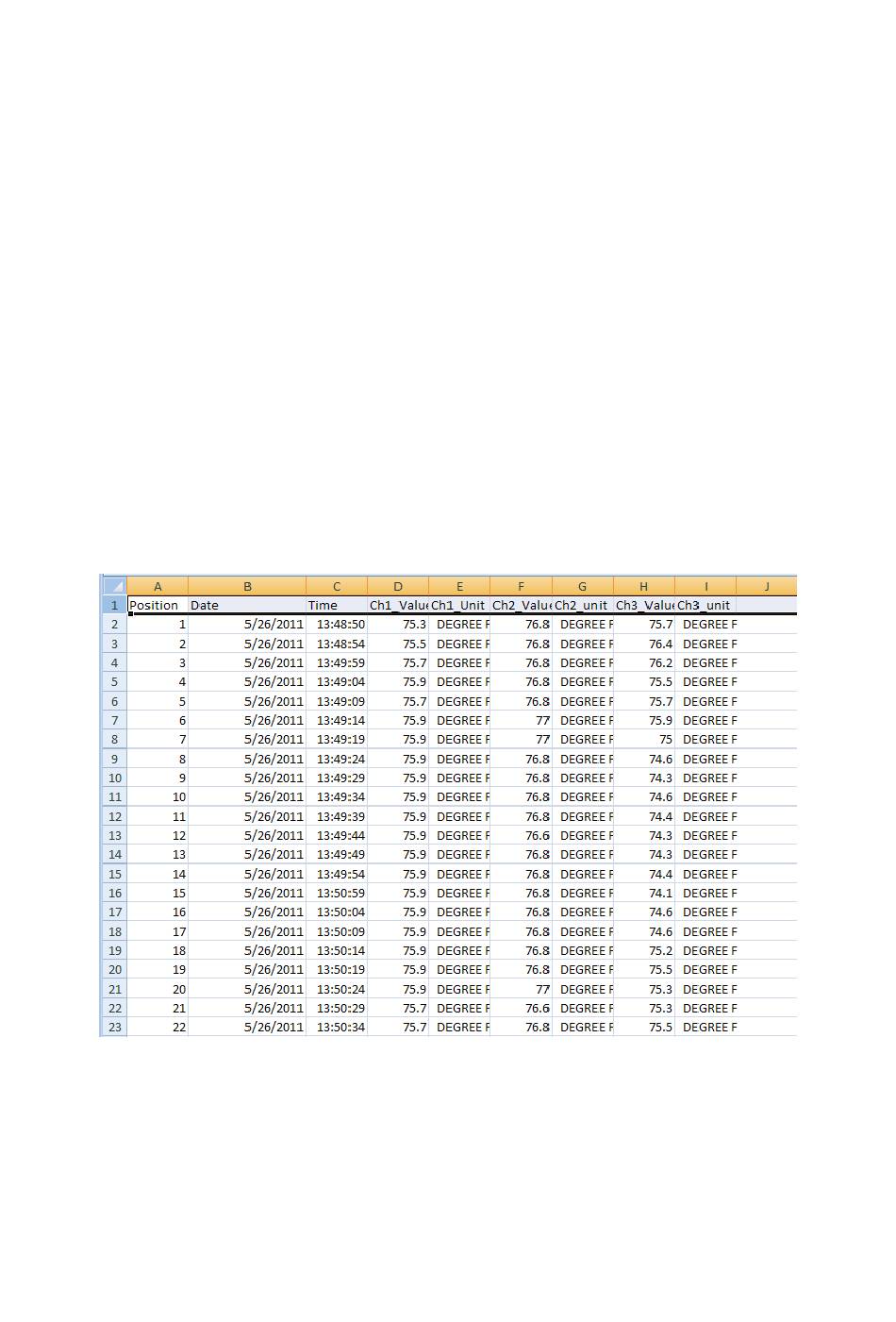

2. Launch Excel and open the data file on the memory card. The file will appear similar to the
figure below.
5 SD200-EN v1.9 08/13
