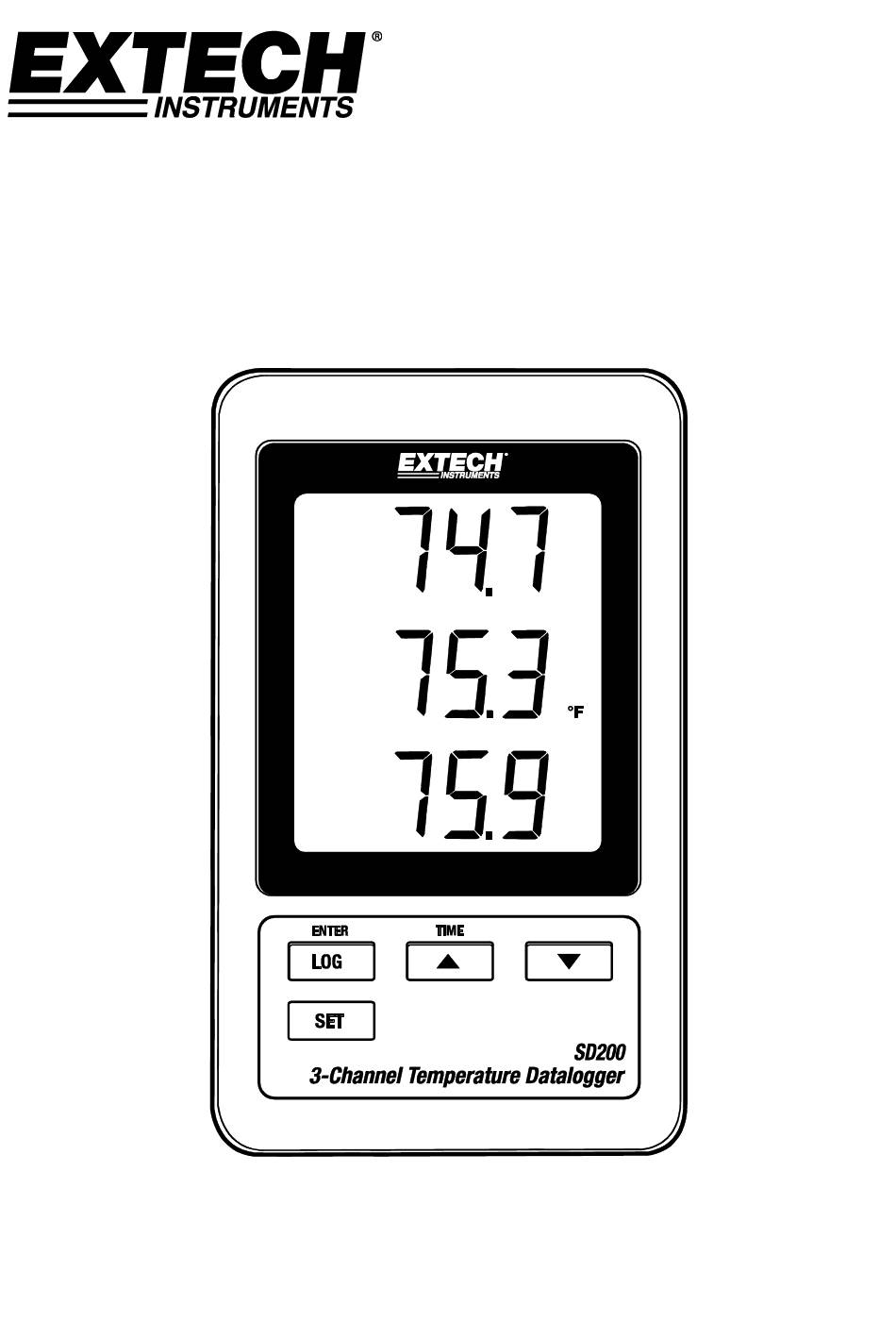

- Page 1 USER GUIDE 3 Channel Datalogging Thermometer Model SD200...
- Page 2 Introduction Congratulations on your purchase of the Extech SD200 3-Channel Temperature Datalogger. This meter displays and stores temperature readings from one to three type k thermocouple temperature probes. Data is stored on a SD card for transfer to a PC. This meter is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.
- Page 3 10. Reset button 11. RS-232 output 12. SD memory card socket 13. T1 thermocouple input 14. T2 Thermocouple input 15. T3 thermocouple input Note: Battery Compartment and Tilt Stand are located on the back of the meter. SD200-EN v1.9 08/13...
- Page 4 Press the LOGGER button for >2 seconds to begin logging. “DATALOGGER” will appear in the display (between T2 and T3 displays) and the meter will beep each time the data is recorded (if the beeper is enabled). SD200-EN v1.9 08/13...
- Page 5 Remove the memory card from the datalogger and plug it into the SD card slot on the PC. Launch Excel and open the data file on the memory card. The file will appear similar to the figure below. SD200-EN v1.9 08/13...
- Page 6 RS232 Interface For streaming of data to a PC via the RS232 Output jack, the optional 407001-USB kit (RS232 to USB cable and driver CD) along with the 407001 software (available free at www.extech.com) are required. SD200-EN v1.9 08/13...
- Page 7 Please dispose of batteries responsibly; always observe local, state, and federal regulations with regard to battery disposal. Never dispose of batteries in a fire. Batteries may explode or leak. Never mix battery types. Always install new batteries of the same type. SD200-EN v1.9 08/13...
- Page 8 Warranty FLIR Systems, Inc. warrants this Extech Instruments brand device to be free of defects in parts and workmanship for one year from date of shipment (a six month limited warranty applies to sensors and cables). If it should become necessary to return the instrument for service during or beyond the warranty period, contact the Customer Service Department for authorization.
- Page 9 Garantie FLIR Systems, Inc. garantit que cet appareil Extech Instruments est exempt de défauts matériaux et de fabrication pendant un an à partir de la date d’envoi (une garantie limitée de six mois s’applique aux capteurs et aux câbles). Si le renvoi de l’appareil pour réparation devient nécessaire durant ou après la période de garantie, contactez le service client pour autorisation.
- Page 10 Garantía FLIR Systems, Inc., garantiza este dispositivo marca Extech Instruments para estar libre de defectos en partes o mano de obra durante un año a partir de la fecha de embarque (se aplica una garantía limitada de seis meses para cables y sensores). Si fuera necesario regresar el instrumento para servicio durante o después del periodo de garantía, llame al Departamento de Servicio a...
