Plug
Ø 8

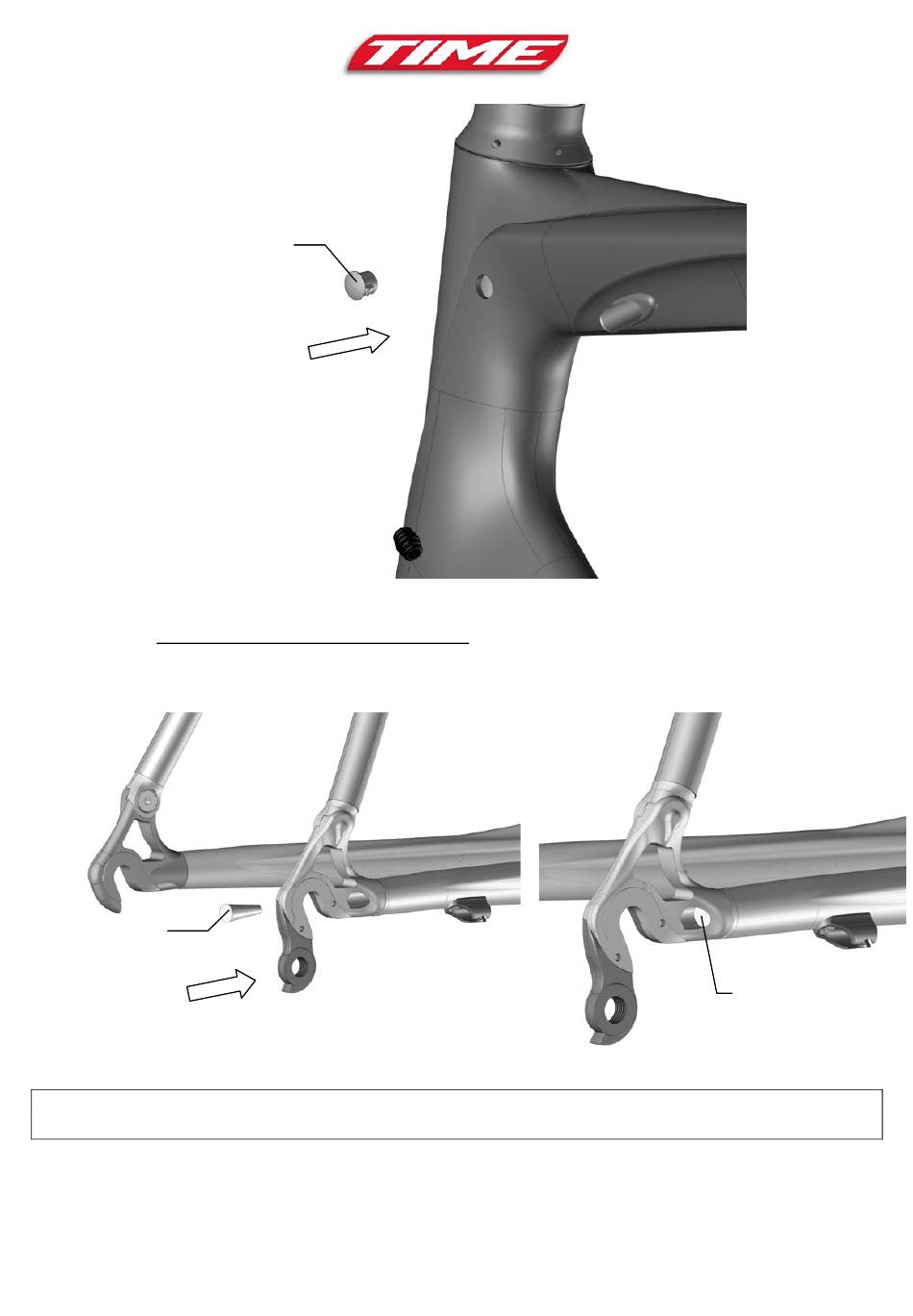

c) Installing the right-hand chain stay plug
To prevent water building up inside the frame, a tapered plug must be inserted in the rear right dropout
The plug must be installed in the hole used for the derailleur cable for electronic versions
Tapered
plug
Important: the plug must not be driven in too far in the rear right hand dropout, otherwise it will not be
efficient
Fluidity 2014-2015
Figure 11
Figure 12
- 13 -
(Fig 12)
Plug in
place
