www.event-lighting.com.au

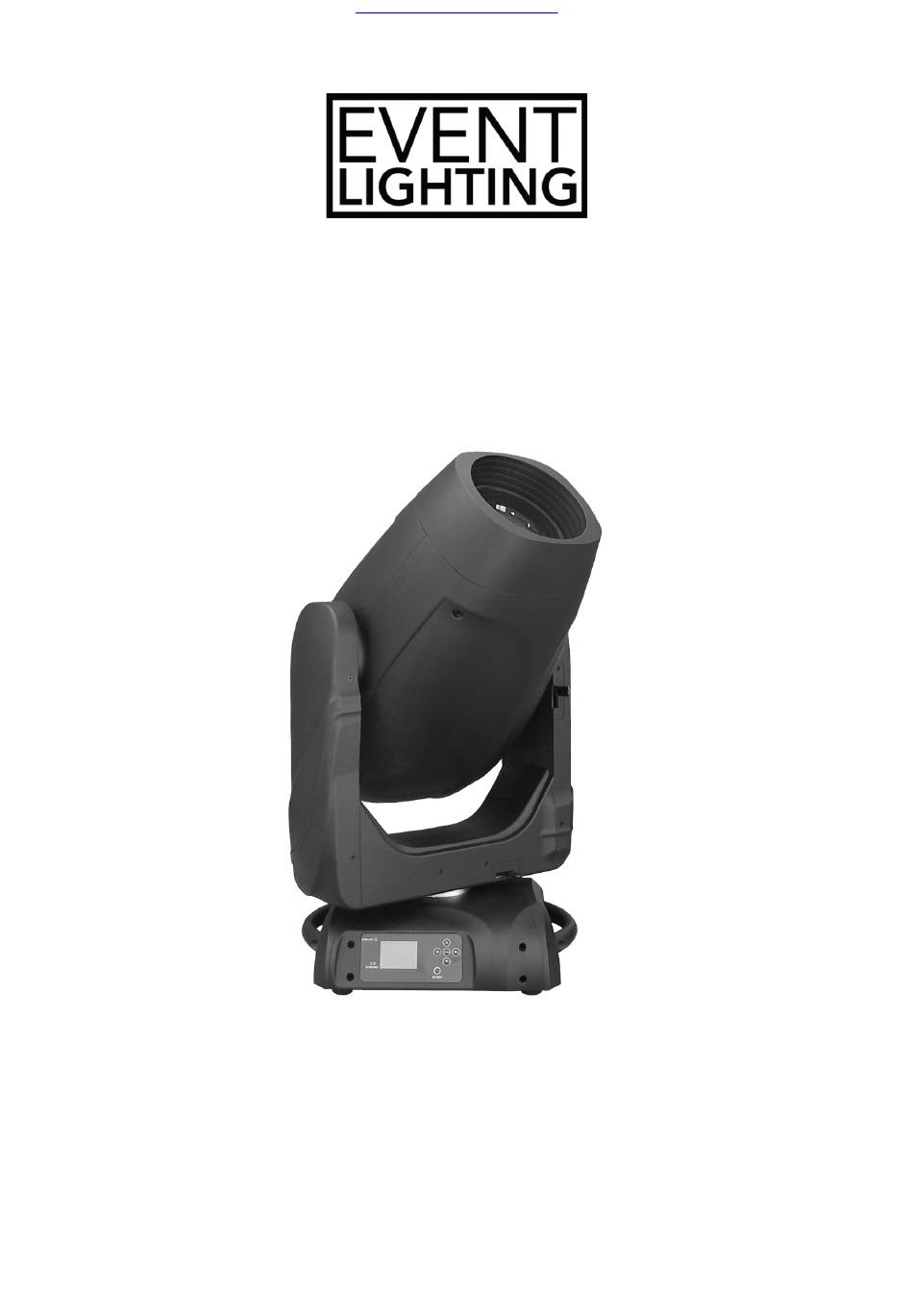

HAVOCH600F
600W LED Moving Head Hybrid with Framing
USER MANUAL
For your safety, please read this user manual carefully before use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
Version 1.3 (April 2024)
1
Advertisement
Related Manuals for Event Lighting HAVOCH600F-WH
Summary of Contents for Event Lighting HAVOCH600F-WH
- Page 1 For your safety, please read this user manual carefully before use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
- Page 2 www.event-lighting.com.au 1. Product Introduction: 1.1 Before unpack the fixture, pls make sure that the packing is in good condition, following items will be found in the box: -The fixture -This users guide -3m DMX cable -1.5m power cable with powercon -Omega bracket for hanging installation -Safety chain 1.2 Specification...
- Page 3 www.event-lighting.com.au Features DMX channels: 39 Ÿ Linear CMY+CTO Ÿ Motorized focus Ÿ Full range 0-100% dimmer Ÿ Various strobe Ÿ Rotating 4 facets prism Ÿ Frost Ÿ Fast speed iris Ÿ Beam from 4° to 50 ° Ÿ 4 individually prositionable Shutter blades rotating +/- 45° Ÿ...
- Page 4 www.event-lighting.com.au 9. Wireless indicator 10. Ethernet 11. Battery indicator 12. Left button 13. Down button 14. Enter button 15. Up button 16. Right button 17. 5-pin DMX in 18. 5-pin DMX out 19.ETHERNET Power in 22.Fuse 1.4 CMY, CTO flags...
- Page 5 www.event-lighting.com.au Colors and Gobos Open Color temperature correction green blue Pale yellow Pink Orange red CRI-17 Rotating Gobo Wheel Static gobo wheel...
- Page 6 www.event-lighting.com.au 2. Safety and maintenance Information 2.1 Safety Info Before operate this unit, please carefully read this users guide and keep if needed in future. It’s necessary to respect following rules. The disposal of the device after lifecycle could damage the environment, need to take it to special company for recycling or return to authorized dealer.
-
Page 7: Troubleshooting
www.event-lighting.com.au 2.2.5. Trouble Shooting Problems Possible reasons Checking or solutions Device not power up Powercon or power cable damaged Change a good power cable to try Faulty power supply Replace new power supply Pan/Tilt error or vibrate Faulty Pan/Tilt PCB Replace PT013 PCB Faulty opto sensor Replace opto sensor OP005... - Page 8 www.event-lighting.com.au 3.3 How to do mounting installation. Step one: Installation the clamp onto the omega bracket; Step two: Install the clamp and bracket on the bottom of panel, fasten the quick-locks; Step three: Install the whole device onto appropriate truss and fasten the clamps, tight the safety rope with the truss or other fixing point at a suitable position that drop down distance not exceed 20 cm.
- Page 9 www.event-lighting.com.au Merge Mode Off/Htp/Ltp Ethernet To DMX On/Off(On) Hold/Blackout(Hold) Dmx Fault① Temprature Unit Fahrenheit /Celsius(Celsius) Hibernation Off, 01M~99M Fan Mode AUTO/HIGH/SILENT(AUTO) Dimmer Curve LINEAR/S-CURVE/SQUARE LAW/ INVERSE SQUARE LAW Fixture Settings Dimmer Speed AUTO/FAST/MEDIUM/SLOW 600HZ/1200 HZ/2000 HZ/4000 LED Frequency HZ/6000HZ/25KHZ/50KHz Menu Language En/Fr/Sp/简/繁...
- Page 10 www.event-lighting.com.au Focus =xxx Gobo 1 Focus Gobo 8 Focus Encoder Reset clean value in encoder pcb Manual Control Basic Reload(①) On/Off (Off) Reload Default Factory Reload On/Off(Off) DMX Receive Slave Receive Slave Receive 1,2,3 Play① Sequence Master / Alone Music Master / Alone Chase Part 1 Chase 1 ~ 8 Chase 1...
- Page 11 www.event-lighting.com.au 5. DMX connection and DMX protocol 5.1 DMX addressing: 5.1.1 The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive instructions from the external controller. For independent control, each fixture must be assigned its unique address control channels.
- Page 12 www.event-lighting.com.au 5.2 DMX chart CHANNEL name function STANDARD Lineary from 0% to 100% Pan fine Lineary from 0% to 100% Tilt Lineary from 0% to 100% Tilt fine Lineary from 0% to 100% XY Speed Fast to Slow Close Strobe from slow to fast Open Pulse in from slow to fast Shutter...
- Page 13 www.event-lighting.com.au Reverse Spin From slow to fast Indexed Open GOBO 1 GOBO 2 GOBO 3 GOBO 4 GOBO 5 GOBO 6 GOBO 7 Forward Spin From fast to slow Rot Gobo Stop Stop Reverse Spin From slow to fast Shake GOBO 1 from slow to fast GOBO 2 from slow to fast GOBO 3 from slow to fast...
- Page 14 www.event-lighting.com.au From fast to slow Stop Stop Reverse Spin From slow to fast Shake GOBO 1 from slow to fast GOBO 2 from slow to fast GOBO 3 from slow to fast GOBO 4 from slow to fast GOBO 5 from slow to fast GOBO 6 from slow to fast GOBO 7 from slow to fast GOBO 8 from slow to fast...
- Page 15 www.event-lighting.com.au Blade1 Blade1 Position 0->100% Position Blade1 Rot Blade1 Rot Blade2 Blade2 Position 0->100% Position Blade2 Rot Blade2 Rot Blade3 Blade3 Position 0->100% Position Blade3 Rot Blade3 Rot Blade4 Blade4 Position 0->100% Position Blade4 Rot Blade4 Rot Blade Rot Blade All Rotation No Function Macro 1 Macro 2...
- Page 16 www.event-lighting.com.au Macro 33 Macro 34 Macro 35 Macro 36 Frame macros Lineary from 0 to 100% speed No Function/Safe PAN REVERSE ON PAN REVERSE OFF TILT REVERSE ON TILT REVERSE OFF PAN/TILT MODE FAST PAN/TILT MODE MEDIUM PAN/TILT MODE SLOW HOME MODE STANDARD HOME MODE CUSTOM MOVEMENT IN BLACKOUT ON...
- Page 17 www.event-lighting.com.au DIMMER SPEED FAST DIMMER SPEED MEDIUM DIMMER SPEED SLOW LED FREQUENCY 600HZ LED FREQUENCY 1200HZ LED FREQUENCY 2000HZ LED FREQUENCY 4000HZ LED FREQUENCY 6000HZ LED FREQUENCY 25KHZ LED FREQUENCY 50KHZ INVERT ZOOM OFF INVERT ZOOM ON RESET ALL RESET PAN RESET TILT RESET PAN &...
- Page 18 www.event-lighting.com.au 6. Unique Features 6.1 RDM, stand for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature, power consumption, fan speed.
-
Page 19: Warranty
DMX channels 39 channels Beam angle 4° to 50 ° Luminous flux 83800 lux@5m Fuse T10A , 250 V Device dimensions 748x443x305mm Net Weight 37.2KG Gross Weight 40.7KG Warranty Please refer to your local dealer or contact Event Lighting. www.event-lighting.com.au...
