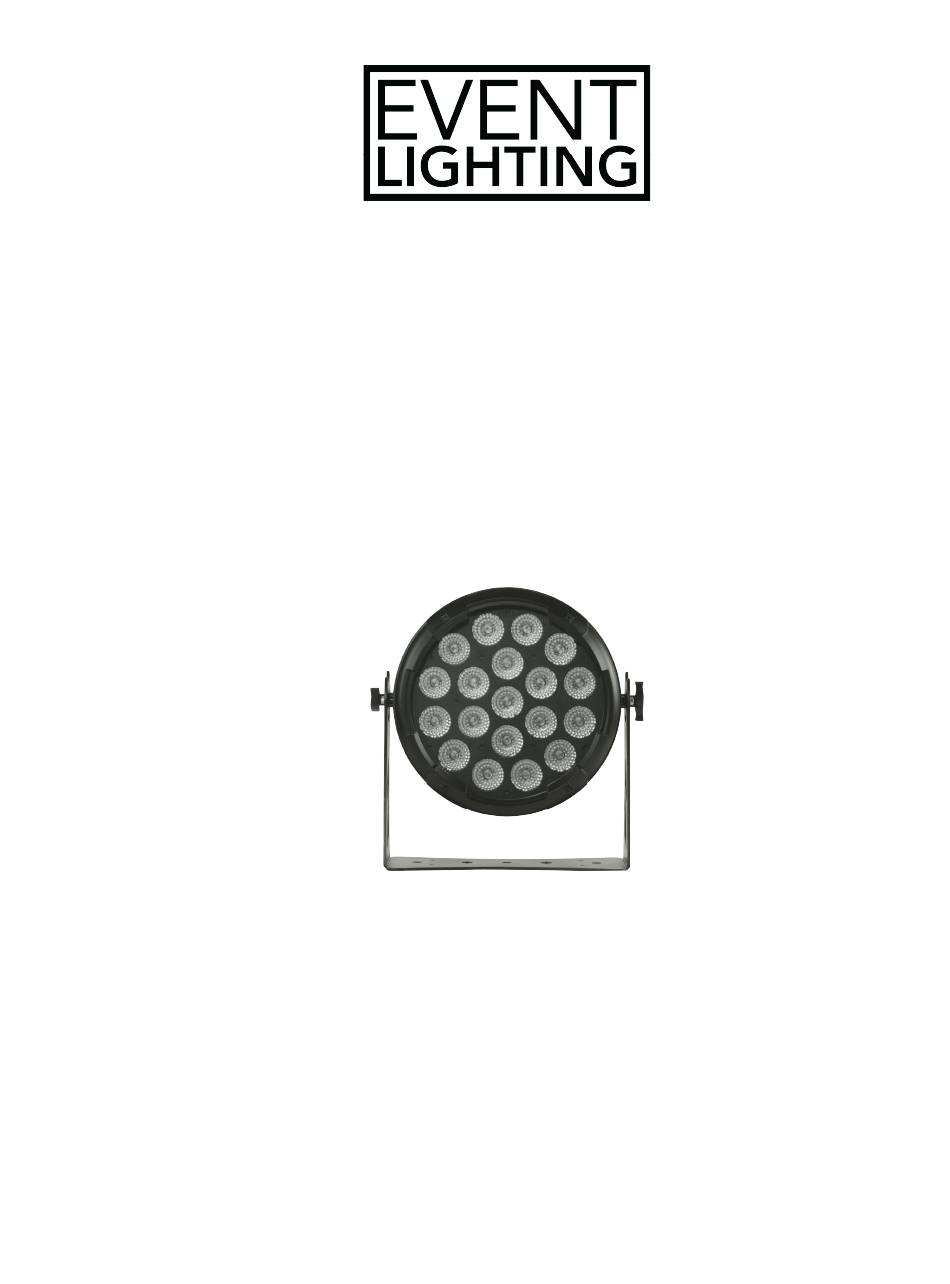

PRO PAR
Model No. PAR19x15, PAR19x15O
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this
manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any
errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
www.event-lighting.com.au
Ver 3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO PAR19x15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Event Lighting PRO PAR19x15

Summary of Contents for Event Lighting PRO PAR19x15

  • Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.

  • Page 2: Table Of Contents

    www.event-lighting.com.au CONTENTS Safety Instructions Power input & power Linking Product Installation Fuse replacement Diagrams Lux chart Dimensions Fade Mode Chart Control Board Operation DMX address setting DMX modes setting Dimmer Speed Setting Static colour setting Manual colour setting Auto run and sound active setting Master/slave setting DMX chart Technical specifications...

  • Page 3: Safety Instructions

    www.event-lighting.com.au Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •...

  • Page 4: Lux Chart

    www.event-lighting.com.au Lux Chart Dimensions...

  • Page 5: Fade Mode Chart

    www.event-lighting.com.au CONTROL BOARD OPERATION Display Options / Values Function DMX Add <001> - <512> To set DMX address DMX Cha <03>, <04>, <06>,<07>, <10>, <12>,<14>, To set DMX channel modes <24> DimMode Standard, Stage, TV, Architec, Theater To set fade time. Standard, Stage, TV, Architecture, Theater StaticC R, G, B, W, GB, RB, RG, RGB, RW, GW,...

  • Page 6: White

    www.event-lighting.com.au Set Static Colour Select "Static C" in main menu and press “ENTER”, use the “UP” and “DOWN” buttons to select the desired solid colour. Value: Function: Green Blue White Green + Blue Red + Blue Red + Green Red + Green + Blue Red + White Green + White Blue + White...

  • Page 7: Master/Slave Setting

    www.event-lighting.com.au should be set to 20. It is possible to double up fixture positions as well as fixture 1. 5. On each slave, go to the master/slave menu setting and set it to slave. Sound Mode Select "Sound" in main menu and press “ENTER”, use the “UP” and “DOWN” buttons to set the sensitivity (SEN000-SEN100), press “ENTER"...

  • Page 8: Master Dimmer Fine: 0

    www.event-lighting.com.au 6 channels Mode Channel Value Function 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Master dimmer: 0% ~ 100% 000-007 Shutter closed ( No light) 008-015 Shutter on 016-119 Strobe slow to fast (1-25Hz)
  • Page 9 www.event-lighting.com.au 010-255 Strobe (slow-fast 1-25Hz) 000-009 No Function 010-031 White 1 032-054 White 2 055-077 White 3 078-100 White 4 101-123 White 5 124-146 White 6 147-169 White 7 170-192 White 8 193-215 White 9 216-238 White 10 239-255 White 11 000-009 No Function 010-020...
  • Page 10 www.event-lighting.com.au 12 Channels Mode Channel Value Function 000-255 Centre Red: 0% ~ 100% 000-255 Centre Green: 0% ~ 100% 000-255 Centre Blue: 0% ~ 100% 000-255 Centre White: 0% ~ 100% 000-255 Inner ring Red: 0% ~ 100% 000-255 Inner ring Red: 0% ~ 100% 000-255 Inner ring Blue: 0% ~ 100% 000-255...
  • Page 11 www.event-lighting.com.au 24 Channels Mode Channel Value Function Section 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Master dimmer coarse: 0% ~ 100% 000-255 Master dimmer fine: 0% ~ 100% 000-007 Shutter closed ( No light) 008-015...
  • Page 12 www.event-lighting.com.au 000-255 Red: 0% ~ 100% 000-255 Green: 0% ~ 100% 000-255 Blue: 0% ~ 100% 000-255 White: 0% ~ 100% 000-255 Master dimmer coarse: 0% ~ 100% 000-255 Master dimmer fine: 0% ~ 100% 000-007 Shutter closed ( No light) 008-015 Shutter on 016-119...

  • Page 13: Technical Specifications

    3, 4, 6, 7, 10, 12, 14, 24 Power Input Seetronic® Outdoor Powerkon Neutrik® Powercon DMX Connector Seetronic® 3 Pin Outdoor DMX socket 3 / 5 Pin DMX socket WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au.

This manual is also suitable for:

Pro par19x15o
