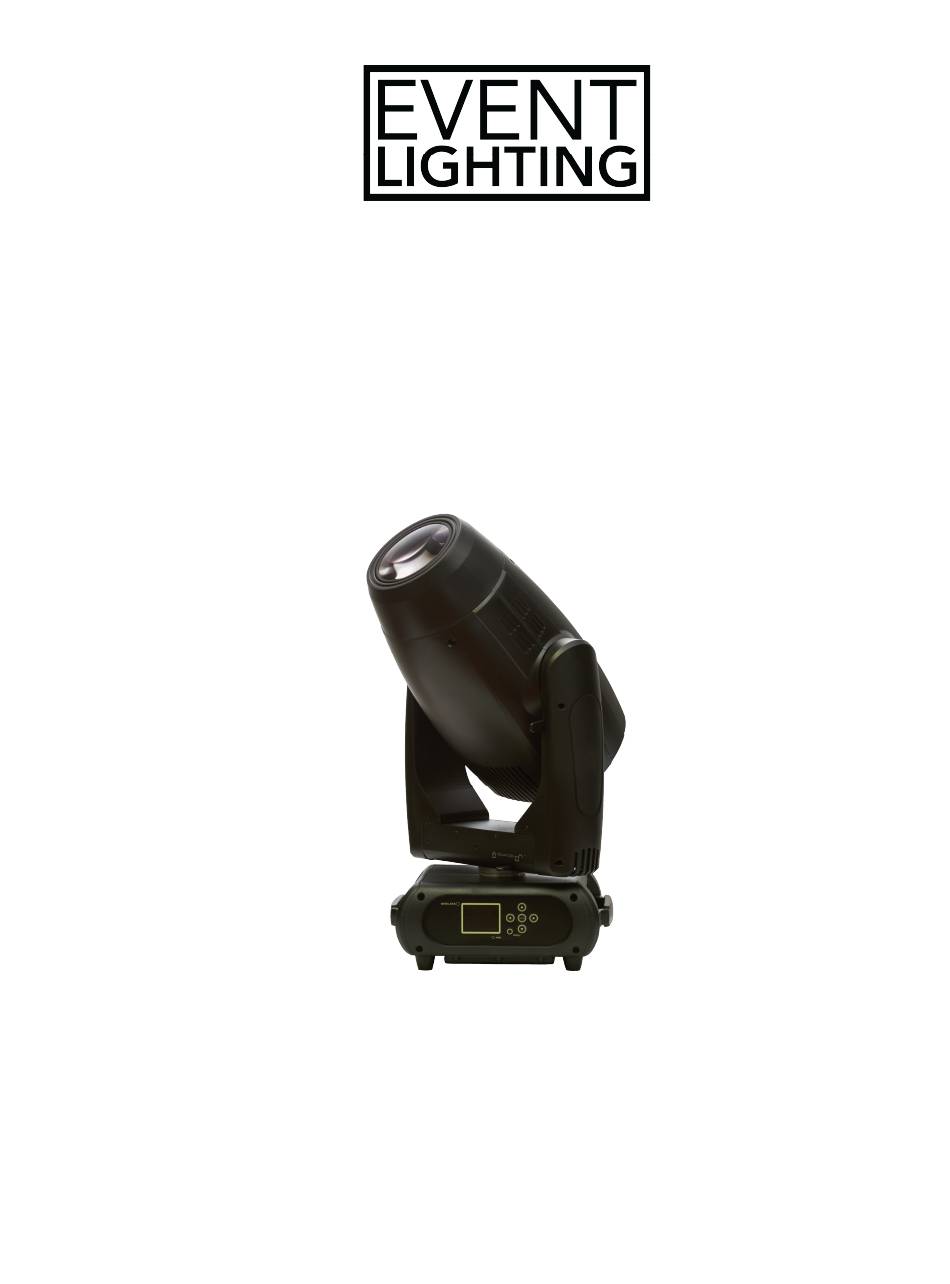

M1H300W
Hybrid Moving Head with CMY, CTO and Zoom
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
V1.0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting M1H300W
Summary of Contents for Event Lighting M1H300W
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting for any clarification or information regarding this item.
-
Page 2: Safety Instructions
Safety Instructions WARNING • Do not open this device, there is no user-serviceable parts inside. Risk of electric shock. • Do not look at the light source when the device is on. • CAUTION: This unit's housing may be hot during and after operation. •... - Page 3 Product appearance, LUX chart, Dimensions Project lens Head Base Display Foot stand Operation button Handle Wireless indicator 10. Mic 11. Left button 12. Battery indicator 13. Up button 14. Down button 15. Enter button 16. Right button 17. 3-pin DMX in 18.
- Page 4 www.event-lighting.com.au...
-
Page 5: Colour Wheel
Colour wheel Open Magenta Orange Sky blue Pink Yellow Green Blue Gobo wheel Static gobo wheel Rotating gobo wheel (slot-in-out gobos) www.event-lighting.com.au... -
Page 6: Rotating Gobo Wheel
Rotating gobo wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au... -
Page 7: Static Gobo Wheel
Static gobo wheel Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8 www.event-lighting.com.au... -
Page 8: Menu Operation
Menu operation Description of icons in the menu CONNECT LIGHT INFOMATION PROGRAM Menu Default setting shadowed. Mark with ①can be basic reloaded, ② be program reloaded, ③can be private reloaded. DMX Address① DMX address setting Wireless① Wireless Enabled ℃80℃ /176~282℉176℉ Lamp off if temperature Temperature①... - Page 9 00~31 10 Display Bright ③ Display Brightness Brand Show ON/OFF Show brand or not ① Key Lock ON/OFF Key lock on/off ① Language En/简/繁/Fr/Sp Language Select ③ Users User Mode① Standard Standard mode Extended Extended mode Basic-8bit Basic-8bit mode Basic-16bit Basic-16bit mode User User program mode...
-
Page 10: Dmx Chart
DMX Chart Channel name function Ex Ba1 Pan Coarse Pan fine Pan Fine Tilt Tilt Coarse Tilt fine Tilt Fine Movement fastest to Slowest Speed Normal Movement Movement With Blackout Function Normal Shutter Functions Pulse-effect Forward Shutter Pulse-effect Reverse Function Random Strobe Normal Shutter Functions Close... - Page 11 Indexed Indexed With Blackout Forward Spin Colour Reverse Spin Function Continuous Colour Bounce Indexed & Indexed With Blackout & Colour Bounce Position 1 (Open) Position 2 ~ Position 18 Forward Spin Colour Stop to fastest Reverse Spin Stop to fastest Continuous Positioning from 0-360 degrees Indexed...
- Page 12 Stop to fastest Reverse Wheel Spin Stop to fastest Continuous Positioning from 0-360 degrees Indexed Position 1 (Open) Position 2 ~ Position 8 Indexed With Blackout Position 1 (Open) Position 2 ~ Position 8 Rot Gobo Indexed With Shake Position 2 Position 3 ~ Position 8 Forward Wheel Spin Stop to fastest...
- Page 13 Forward Spin Stop to fastest Reverse Spin Stop to fastest Indexed Indexed With Blackout Forward Spin Gobo Reverse Spin Function Continuous Shake Indexed & Indexed With Blackout & Shake Position 1 (Open) Position 2 ~ Position 8 Forward Wheel Spin Fixed Stop to fastest Gobo...
- Page 14 10m Auto Focus 15m Auto Focus >20m Auto Focus Continuous Focus In to Focus Out Focus Auto Focus Focus In to Focus Out Fine Continuous Zoom Zoom Small to Big Indexed Pulse opening With Forward Blackout Iris Pulse opening With Reverse Blackout Function Pulse closing With Forward Blackout Pulse closing With Reverse Blackout...
-
Page 15: More Functions
If the devices have the same address, they will behave synchronically. Display is flashing when no DMX signal is received. More functions RDM. RDM stands for “Remote Device Management”, with this function, users can realize remote control of the device, such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature, power consumption, fan speed. -
Page 16: Warranty
Net Weight: 18 kg Rigging: 2pcs Omega Brackets with 1/4-turn Quick Locks MISC Road case: MCASE1LS (fit 1 unit) MCASE2VLS (fit 2 units) WARRANTY Please refer to your local dealer or please contact Event Lighting Pty Ltd Website: www.event-lighting.com.au. www.event-lighting.com.au...
