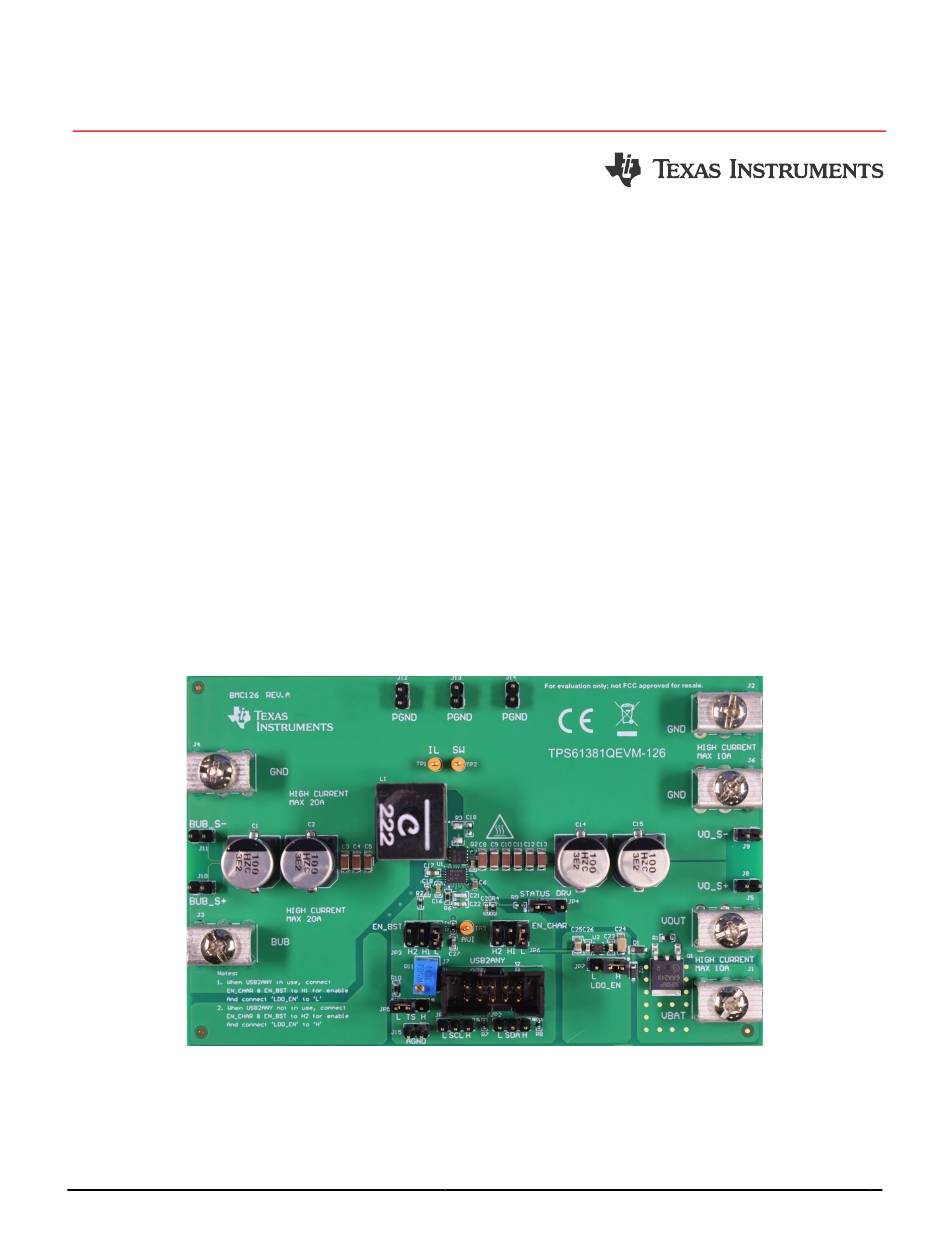

EVM User's Guide: TPS61381-Q1EVM-126
TPS61381-Q1EVM-126 Evaluation Module
Description
The TPS61381QEVM-126 operates over a wide
back up battery voltage range of 0V to 12V and
main battery (VBAT port) voltage range of 0V-40V
to achieve a bi-directional operation. The EVM
supports an output up to 7.5A load at 3.6V BUB
and 6.2V output in boost mode, and supports
50-100mA charging current in charger mode. The
TPS61381QEVM-126 can support output voltage
regulation accuracy better than 2.5% in boost mode
and support better than 1% voltage accuracy in
charger mode. The device functions are adjustable
using I2C interface.
Features
AEC-Q100 qualified for automotive applications
Back-up battery (BUB) voltage in boost mode:
0.5V to 12V, 3V minimum voltage for start up
Support absmax (VOUT pin) up to 40V
Boost output voltage: up to 12V
Adjustable boost average input current limit from
5A to 15A
SLVUCV8 – MARCH 2025
Submit Document Feedback
Integrated 20mΩ high-side MOSFET and 6mΩ ISO
FET to support true disconnection
I2C programmable CC, CV charger with integrated
charging strategy
Auto detection on system voltage and automatic
transition into boost mode when car battery
malfunction occurs
Fault or operation status indication by STATUS pin
and I2C
Backup battery State-of-Health(SOH) detection
20μA quiescent current in standby mode
< 1μA shutdown current
< 1μA leakage current for pins connected to the
back up battery (at Tj up to 60°C)
Frequency: 400kHz for automotive applications
Programmable spread spectrum for optimizing EMI
3mm × 4mm 25-pin package with wettable flank
Applications
Emergency call (eCall)
Door handle module
Fault indicator (FI)
TPS61381QEVM-126
Copyright © 2025 Texas Instruments Incorporated
TPS61381-Q1EVM-126 Evaluation Module
Description
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TPS61381-Q1EVM-126 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments TPS61381-Q1EVM-126

  • Page 1 Boost output voltage: up to 12V • Door handle module • Adjustable boost average input current limit from • Fault indicator (FI) 5A to 15A TPS61381QEVM-126 SLVUCV8 – MARCH 2025 TPS61381-Q1EVM-126 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    TPS61381-Q1 monitors system voltage and automatically switches to boost mode when car battery malfunction occurs and voltage drop on the system side is detected. TPS61381-Q1EVM-126 Evaluation Module SLVUCV8 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 3: Reference Designator

    The JP4 jumper is used to configure Status or DRV pin. By default, this jumper is set to the STATUS position, which enables the pull-up circuit for the STATUS indicator function. Put this jumper in the DRV position to connect the PMOS driver. SLVUCV8 – MARCH 2025 TPS61381-Q1EVM-126 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 4: Test Procedure

    7. Close the power supply output and verify if Vout voltage is approximately 6.2V when Vbat drops below 6.2V. E-Load Battery Boost Simulater Power Supply Figure 2-1. Verifying Boost Function TPS61381-Q1EVM-126 Evaluation Module SLVUCV8 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 5 5. Set Enable AVI Pin Output to Discharge Current and check if the AVI pin voltage is approximately 0.5V. E-Load Battery Simulater Power Supply Figure 2-3. Verifying SOH Function SLVUCV8 – MARCH 2025 TPS61381-Q1EVM-126 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 6 3. Click the connect button on the bottom bar, as shown in Figure 3-2. After the GUI and device are connected, the GUI reads all registers and shows a notification. TPS61381-Q1EVM-126 Evaluation Module SLVUCV8 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 7 1.Select 3.Boost is already Boost enabled by default Setting 2.Configure 4.TI recommend enable Boost short protection Settings Figure 3-3. Boost Settings Sheet SLVUCV8 – MARCH 2025 TPS61381-Q1EVM-126 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 8 AVI pin output ratio, AVI output, and so forth according to the design target. 3.Enable 1.Select Setting 2.Configure Settings Figure 3-5. SOH Settings Sheet TPS61381-Q1EVM-126 Evaluation Module SLVUCV8 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 9 Figure 3-7. GUI Register Map Screen 3.2 Modification This EVM requires an appropriate I C interface, such as the TI USB2ANY, to configure the TPS61381-Q1. SLVUCV8 – MARCH 2025 TPS61381-Q1EVM-126 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 10 AGND AGND AGND LDO_EN LDO_IN 10.0k LDO_3V3 USB2ANY_3V3 USB2ANY_3V3 EN_CHAR PV37W503C01B00 50k Ohm 1µF AGND AGND AGND AGND AGND Figure 4-1. TPS61381-Q1 EVM Schematic TPS61381-Q1EVM-126 Evaluation Module SLVUCV8 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 11: Pcb Layout

    Hardware Design Files 4.2 PCB Layout Figure 4-2. TPS61381-Q1 EVM Top-Side Layout Figure 4-3. TPS61381-Q1 EVM Inner Layer1 SLVUCV8 – MARCH 2025 TPS61381-Q1EVM-126 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 12 Hardware Design Files www.ti.com Figure 4-4. TPS61381-Q1 EVM Inner Layer2 Figure 4-5. TPS61381-Q1 EVM Bottom-Side Layout TPS61381-Q1EVM-126 Evaluation Module SLVUCV8 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 13 JP1, JP2, JP4, JP5, Header, 100mil, 3x1, Tin, TH CONN_PEC03SAAN PEC03SAAN Sullins Connector Solutions JP3, JP6 Header, 100mil, 3x2, Tin, TH SULLINS_PEC03DAAN PEC03DAAN Sullins Connector Solutions SLVUCV8 – MARCH 2025 TPS61381-Q1EVM-126 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 14 Bi-directional Boost Converter with LDO CC/CV RAV0024A-MFG TPS61381QRAVRQ1 Texas Instruments and Battery Health Detection Automotive 150mA high-voltage ultra-low-IQ DRV0006A TPS7B8133QDRVRQ1 Texas Instruments low-dropout (LDO) linear regulator, DRV0006A (WSON-6) TPS61381-Q1EVM-126 Evaluation Module SLVUCV8 – MARCH 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 15: Additional Information

    Additional Information 5 Additional Information 5.1 Trademarks All trademarks are the property of their respective owners. SLVUCV8 – MARCH 2025 TPS61381-Q1EVM-126 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
