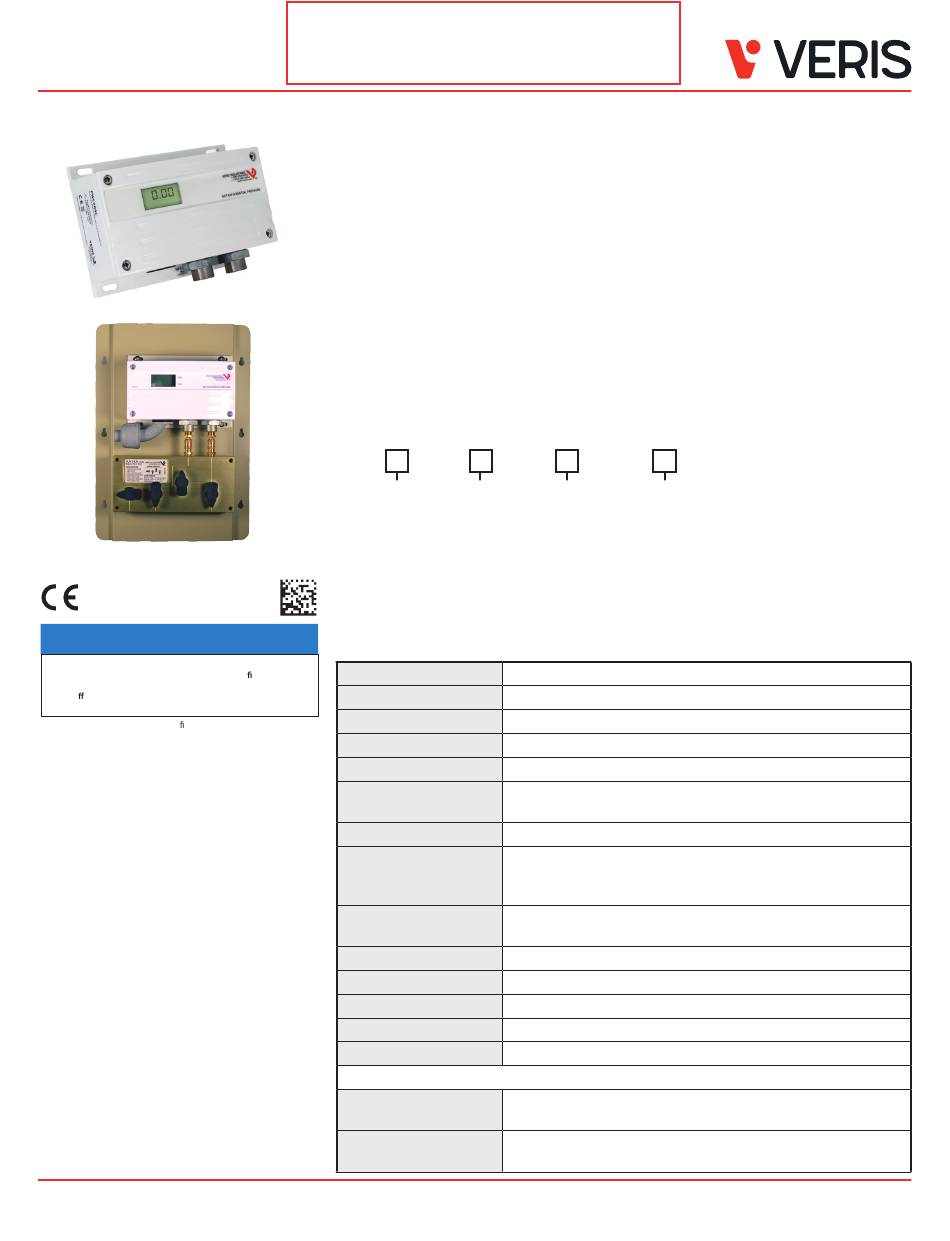

Installation Guide
Pressure
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classi ed locations.
• Read and understand the instructions before installing this product.
• Turn o all power supplying equipment before working on it.
• The installer is responsible for conformance to all applicable codes.
If this product is used in a manner not speci ed by the manufacturer, the protection
provided by the product may be impaired. No responsibility is assumed by the
manufacturer for any consequences arising out of the use of this material.
Z204201-0K
Page 1 of 4
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
NOTICE:
As a result of a temporary parts shortage, the 4-position slide switch
used for range selection has been replaced with a 5-position slide
switch in a limited period of production runs. See page 3 for details.
Wet Media Differential Pressure Transducer
Product Overview
The PW2 Series sensor is designed to accept high differential pressure. Install the sensor on a duct or pipe across a
PW2xxxS
pump, filter, heat exchanger, compressor, or other non-corrosive wet media. The dual sensor design eliminates the
need for a bypass valve, and the bi-directional capability reduces installation errors. A pushbutton allows easy zero
adjustment.
Product Identification
Local Display
PW2
L = LCD Display
X = No Display
* IMPORTANT!
PW2xxxBP
Select operational range according to maximum gauge pressure, NOT differential pressure.
Example: High gauge pressure=90 psig, select 100 psig model (04).
Specifications
Media Compatibility 17-4 PH stainless steel
Input Power Class 2; 12 to 24 Vdc, loop powered (polarity insensitive)
Proof Pressure 2x max. F.S. range
Burst Pressure 5x max. F.S. range
Accuracy at 25 °C* Ranges A, B, C: ±1% F.S.**
Surge Damping Electronic; 5-second averaging
Temperature
Compensated Range
Sensor Operating
Long Term Stability ±0.25% per year
Zero Adjust Pushbutton auto-zero
Operating Environment -10 to 55 °C (14 to 131 °F); 10 to 90% RH non-condensing
0 to 50 psi (0 to 3.45
0 to 100 psi (0 to 6.89
©2025 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com
Other companies' trademarks are hereby acknowledged to belong to their respective owners.
PW2 Series
NIST
Operational Range*
N = NIST
03 = 0 to 50 psig
X = None
04 = 0 to 100 psig
05 = 0 to 250 psig
Output 2-wire transmitter; 4 to 20 mA (clipped and capped)
Range D: ±2% F.S.**
0 to 50 °C (32 to 122 °F);
TC Zero <1.5% of product F.S. per sensor
TC Span <1.5% of product F.S. per sensor
-20 to 85 °C (-4 to 185 °F)
Range
Fittings 1/8" NPT female thread, stainless steel 17-4 PH
Physical White powder-coated aluminum
PRESSURE RANGES
5/10/25/50 psid (0 to 0.34/0.69/1.72/3.45 bar)
bar)
10/20/50/100 psid (0 to 0.69/1.38/3.45/6.89 bar)
bar)
Options
S = Standard
BP = With mounted bypass assembly
0125
