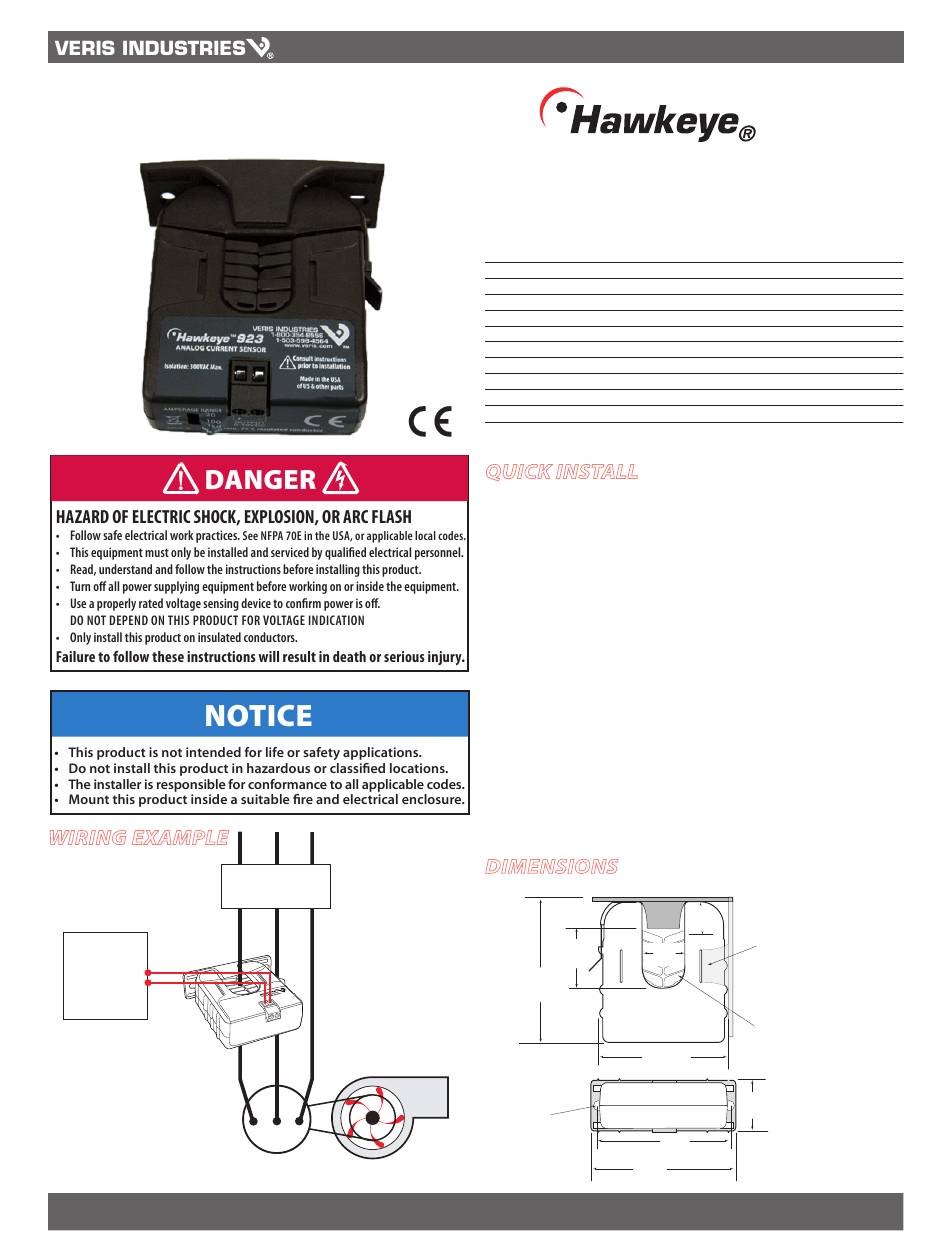

Veris Hawkeye 923 Installation Manual

H923
Wiring ExamplE
CONTROLLER
AI
–
COMMON
+
0-10VDC
Z202365-0G PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
CURRENT MONITORING
CONTACTOR
Fan or Pump
©2009 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com
INSTALLATION GUIDE
Split-Core Current Transducer,
0-10VDC Output
Installer's Specifications
Amperage Range
Sensor Power
Insulation Class
Frequency Range
Temperature Range
Humidity Range
Accuracy
Response Time
Terminal Block Maximum Wire Size
Terminal Block Torque (nominal)
Agency Approvals
For applications requiring double or reinforced insulation, please contact the factory

quick install

1. Disconnect and lock out power to the conductor to be monitored.
2. Plan the installation:
Locate a mounting surface for the removable mounting bracket that will allow
the monitored conductor to pass through the iris, or "window" when it is installed
and keep the product at least 1/2" (13mm) from any uninsulated conductors (CE).
Determine cable routing for the controller connection, allowing wiring to reach
the mounting location.
3. Install mounting bracket
Drill holes to mount the bracket to the chosen surface using the included screws.
4. Set the desired amperage range (20, 100, or 150 Amps).
5. Wire the output connections between the sensor and the controller (0-10VDC).
6. Snap thesensor over the wire to be monitored and clip the assembly to the
mounting bracket.
7. Scale the controller software to match the sensor output.
8. Close up and power up.

DimEnsions

Removable Mounting Bracket
1.1"
0.8"
(26 mm)
(21 mm)
3.1"
(79 mm)
2.8"
(70 mm)
Ø = 0.3"
(8 mm)
(64 mm)
3.0"
(76 mm)
923
0-20/100/150A (slide-switch selectable)
Induced from monitored current
300VAC RMS
-15° to 60°C (5° to 140°F)
10 - 90% RH, non-condensing
±2% full scale from 10% to 100% (selected range)
4 in-lbs (0.45 N-m)
CE: EN61010-1:2001-2, CAT III, deg. 2, basic insulation
1.0"
(25 mm)
Bracket can be mounted
on either side for added
installation flexibility.
Self-gripping
Iris
Use DIN Rail
1.4"
Mounting clip
(36 mm)
(Veris part
2.5"
number AH01) to
mount on stan-
dard DIN rail.
50/60Hz
2 sec.
14 AWG
05092
