Samsung t139 Manual

OVERVIEW

This guide provides you with everything you need to get started. If you need additional information on features and services, please select one of these helpful options:

• Refer to your User Guide.
• Visit www.forums.t-mobile.com.
• On your phone, select Menu>MyAccount> Help & Support>More Help.

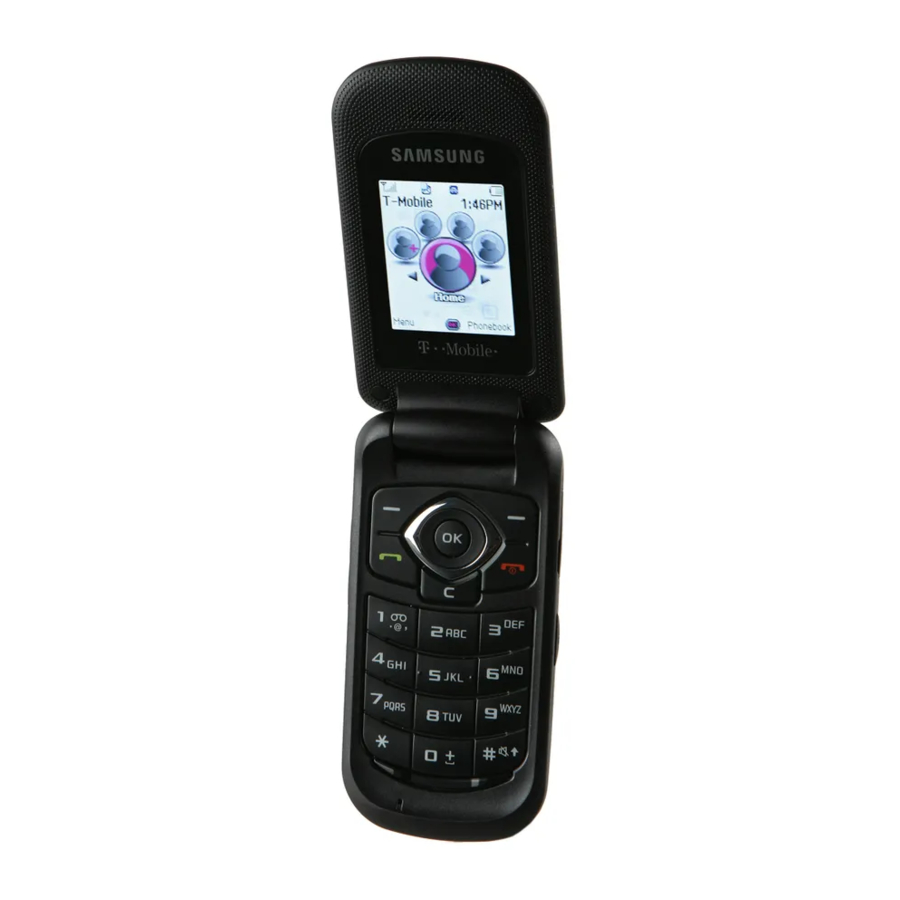

INTRODUCING YOUR PHONE

SERVICE ACTIVATION

If you are a new T-Mobile^® customer and your service has not been activated, simply call Customer Care at 1-800-937-8997 from your landline phone and a T-Mobile Activations representative will assist you.
You will need the following information when activating service:

• Service Agreement and agent code on your Agreement Your name, home address, home phone, and billing address
  NOTE: For business and government accounts, please provide the name of your company or government agency, address, and tax ID.
• Your Social Security number, current driver's license number, and date of birth for credit check purposes
• Your choice of T-Mobile rate plan and services
  (see www.t-mobile.com for latest plan information) SIM serial number and IMEI number (located on the box bar code label)
  By activating service, you acknowledge that you have read, understand, and agree to be bound by each of T-Mobile's Terms and Conditions and your Service Agreement.

SIM CARD AND BATTERY

Your Subscriber Identity Module (SIM) card identifies you to the wireless network. Your phone will not work without the SIM card. To insert the SIM card and battery:

1. Detach your SIM card.

2. Press down on the middle of the battery cover and slide the cover away. Lift and remove the battery.

3. Slide the SIM card into the SIM card holder with the gold contacts facing down and the notched corner facing the side of the phone.

4. Replace the battery by aligning the gold contacts on the battery with the gold contacts in the battery compartment. Replace the battery cover and snap into place.

5. Plug the charger into the phone and into an electrical outlet. When charging is complete, disconnect the charger from the phone.


POWER

Press and hold the red End key to turn on the phone.

CALL FUNCTION

Make calls
Enter the number and press the green Send key to make a call.

Answer calls
Open the flip. If the flip is already open, select Accept or press the green Send key to accept a call.

End calls
Press the red End key to end a call.

Call and set up voicemail
To set up voicemail, press and hold the 1 key and follow the tutorial.
To reset the password to the last four-digits of your phone number, enter #793# and press the green Send key.
To call voicemail, press and hold the 1 key.

MOBILE BACKUP

Mobile Backup is a free service that lets you store contact information on your phone and on www.my.t-mobile.com. You can manage contacts on your phone or on the Web and the changes are synchronized. With Mobile Backup, you don't have to worry about losing your contact information if you lose your phone.
Your phone contacts are backed up by T-Mobile the first time you turn on your phone and each time you make a change to your contacts. Your contacts are available to view and manage on www.my.t-mobile.com. You may opt out of this service. However, if you have certain services, your address book may be backed up in order to deliver those services. See the FAQ section on www.my.t-mobile.com for more details.

CONTACTS

Add contacts using your phone

1. From the main screen, enter the phone number.
2. SelectOptions.
3. SelectSave to phonebook.
4. SelectNew contact.
5. SelectMobile, Home, Office, Fax, Other.
6. Enter the contact's first and last name.
7. If desired, scroll down and enter an alternative phone number, e-mail address, or picture ID.
8. SelectSave when finished.

Call contacts

1. From the main screen, press theNavigation key down.
2. Scroll to the contact you wish to call and press the greenSend key.

MY ACCOUNT

Access account information
You can view your monthly usage, bill summary, and other account information on your phone. To view:

1. From the main screen, selectMenu.
2. Scroll to and selectMy Account.
3. View minutes and messages used this month.
4. Scroll down and selectBilling Summary, Pay Now, Plan & Services, Add Callertunes, or Help & Support.

BLUETOOTH^® SETUP

Your phone comes with Bluetooth technology, which is a wireless technology that enables a data connection between your phone and a Bluetooth wireless headset (headset sold separately).

Prepare a Bluetooth wireless headset
To pair your phone with a Bluetooth headset, make sure that your headset is fully charged and that you put the headset into pairing mode. See your Bluetooth headset's manual for more information.

Turn on Bluetooth and pair with a headset

1. From the main screen, selectMenu.
2. Scroll to and selectSettings.
3. Scroll to and selectBluetooth.
4. Scroll to and selectMy devices.
5. SelectSearch new device.
6. SelectYes to turn on Bluetooth. Your phone scans for Bluetooth devices.

7. Scroll to and select the headset.
8. Enter the passcode, if required, and selectOK.
   Note: The default passcode is usually 0000 or 1234.

EMERGENCY DIALING

While all phones are equipped with 911 emergency calling, this phone may or may not permit its location to be approximated during a 911 call.*
* Availability of this feature depends on upgrades to the

1. wireless network and
2. 911 calling system that are required to be installed by the local 911 response agency or public safety answering point (PSAP); these upgrades may not be available everywhere within our wireless coverage area or your roaming area. This approximation of the phone's location and the transmittal of location information are subject to emergency situations, transmission limits, network problems/limitations, interconnecting carrier problems, your phone, buildings/tunnels, signal strength and atmospheric/ topographical conditions, and may be curtailed, interrupted, dropped or refused. The phone's approximate location is transmitted to the local 911 response agency or PSAP while the call is in progress; this approximation is intended solely to aid the PSAP in dispatching emergency assistance or to limit the search area for emergency services personnel. You should not rely solely on a phone for essential communications (such as a medical or other emergency). Please see T-Mobile's Terms and Conditions and Privacy Policy for additional service restrictions and details.

CARING FOR YOUR PHONE

Making it last
Your phone is a complex electronic device; think of it as a mini-computer. Here are some hints that will help you extend the life of your new phone.
Phones aren't cheap, so keep yours in a safe place. Keep the phone away from children who want to see if the phone sinks or floats, and away from dogs that find plastic-coated products to be irresistible chew toys.
Water will damage your phone and accessories. Even a small amount of water from a soda in your car cup-holder, melting snowflakes, tears of joy, squirt-gun crossfire, or steam from the kitchen or bathroom can damage your phone.
Use only batteries and accessories from the original manufacturer of your phone. Non-approved accessories can damage you or your phone and shorten the phone's life. Hint: If it's being sold out of someone's car trunk, walk away.
If your charger or any other accessory is damaged, replace it or take it to a qualified service dealer. Do not attempt to operate your phone charger if it has received a sharp blow, been dropped, thrown from a speeding motorcycle, or is otherwise damaged; doing so may damage your phone.

TIPS FOR SAFETY

Check with your doctor if you have a pacemaker or hearing aid to ensure that cell phone usage is safe with your device. If you have questions about the interaction of cellular radio frequency and any other electronic equipment, ask the manufacturer of the equipment if cell phone radio frequencies will disrupt the equipment's performance.

When you are driving, T-Mobile encourages you to use your phone in a safe and sensible manner. Here are a few tips:

• Assess road conditions before answering. Your safety is more important than any call.
• Prepare your hands-free headset, if you have one, or turn on your speakerphone option before you start moving.
• If your phone rings and you discover it's in the back seat, do NOT crawl over the seat to answer it while driving.
• Program frequently used numbers into your speed dial for easy one-Select dialing.
• Remember that laws prohibiting or restricting the use of a mobile phone while driving may apply in your area.

Text Messaging

Your phone supports four text modes:

• T9 ® mode: This mode allows you to enter words with only one keystroke per letter and the phone predicts the word you want. For example, to enter run, you enter 7, 8, 6 and press the Navigation key right to select the word, or press the 0 key to select the word and add a space.
• ABC mode: This mode allows you to enter letters by pressing the same key until the correct letter displays. For example, to enter run, you press 7 three times, 8 two times, and 6 two times.
• Number mode: This mode allows you to enter numbers.
• Symbol mode: This mode allows you to enter symbols, such as punctuation marks.

Tips:
When entering a message, press and hold the Pound (#) key to select T9 ® mode or ABC mode.
To enter symbols, press and hold the Star (*) key to open the symbol menu. Scroll to the desired symbol. Enter the number associated with that symbol. Select OK.

Separate charges may apply to send/receive domestic/international text messages.

Send text messages

1. From the main screen, select Menu.
2. Select Messages.
3. Select Create message.
4. Select Text Message.
5. Enter your message.
6. Select Send to.
7. Select one of the following:
   • Recent recipients: Select the desired contact(s) and select Add.
   • Phonebook: Select the desired contact(s) and select Add.
   • New recipient: Enter the phone number and select Add.
8. Select Send.

Read text messages
Your phone notifies you when you have a new text message. To read, select View. To read by going to the Menu:

1. From the main screen, select Menu.
2. Select Messages.
3. Scroll to and select Inbox.
4. Scroll to the message and select View.
   TIP: Select Options to Reply, Delete, and Forward.

Picture Messaging

Send picture messages

1. From the main screen, press the Camera key on the right side of the phone.
2. Frame your subject and press the OK key to take a picture.
3. Select Options.
4. Scroll to and select Send to.
5. Select one of the following:
   • Recent recipients: Select the desired contact(s) and select Add.
   • Phonebook: Select the desired contact(s) and select Add.
   • New recipient: Select Phone number or Email address. Enter the phone number or e-mail address and select Add.
   • My Album: Select to send to My Album.
6. Select Send.

Separate charges may apply to send/receive domestic/international picture messages.

Instant Messaging

Access and send instant messages

1. From the main screen, select Menu.
2. Scroll to and select IM.
3. Scroll to and select AIM, Windows Live, or Yahoo!.
4. Select Sign in.
5. Enter your username and password.
6. Select Sign in to sign in and send instant messages to your contacts.

Browsing

Experience the mobile Web like never before with T-Mobile's new web2go SM experience. New features include access to a browser optimized for viewing on your phone, a customizable start page for easy access to information, a powerful built-in Web search engine, and account information viewable on your phone.
For more information about these services, see the web2go section of your services guide or visit t-mobile.com/shop/addons.

Full access to the Web requires the purchase of a qualifying data plan. Separate additional charges may apply for downloads; actual content available for download may vary.

Access web2go

1. From the main screen, select Menu.
2. Scroll to and select web2go.
3. Select Home.

Download content
You can download ringtones, wallpaper, games, applications, and CallerTunes ® from your phone. To download:

1. From the main screen, select Menu.
2. Scroll to and select web2go.
3. Select Home.
4. From the Downloads tab, scroll to and select the desired content.
5. Scroll to and select the desired category and file.
6. Select BUY NOW to purchase and download your file.

Audio Postcards ^SM

Create and send Audio Postcards

1. From the main screen, select Menu.
2. Scroll to and select Audio postcard.
3. Press the Navigation key left or right to select a frame.
4. Frame your subject and press the OK key to take a picture.
5. Select Add voice.
6. Speak your message.
7. Select Stop.
8. Select Send to.

9. Select one of the following:
   • Recent recipients: Select the desired contact(s) and select Add.
   • Phonebook: Select the desired contact(s) and select Add.
   • New recipient: Select Phone number or Email address. Enter the phone number or e-mail address and select Add.
   • My Album: Select to send to My Album.
10. Select Send.

Ringtones

Change the ringtone

1. From the main screen, select Menu.
2. Scroll to and select Fun & Apps.
3. Select Files.
4. Select Sounds.
5. Scroll to and select Sounds.
6. Scroll to the desired ringtone and select Play.
7. Select Options.
8. Scroll to and select Set as...
9. Scroll to and select Ringtone.
10. Select Yes to confirm.

Accessories for Your Phone

Whether you are looking for a charger, a fashionable carrying case, a Bluetooth ® headset or just want to browse for fun extras for your phone, T-Mobile is the place to shop for accessories. Here are a few examples....

To purchase accessories for your phone, visit T-Mobile.com, call 1.800.204.2449 or visit your nearest T-Mobile store.

Additional Information

Messaging Plans/Features: You will be charged for all data sent by or to you through the network, regardless of whether received. Character length/ file size of messages/attachments may be limited. T-Mobile is not liable for content of messages/attachments or for any failures, delays or errors in any T-Mobile generated alerts or notifications.
Downloads: Additional charges apply; not all downloads available on all devices. You obtain no rights in downloads; duration of use may be limited; may be stored solely for use with your device. T-Mobile is not responsible for any download lost due to your error; T-Mobile is not responsible for any third party content or Web site you may be able to access using your device. See brochures and T-Mobile's Terms and Conditions (including arbitration provision) at T-Mobile.com, for rate plan information, charges for features and services, and restrictions and details.
