Aurus 48FA63 OLED twin
Notwendige Werkzeuge:
Nessesary tools:
Torx T10
Torx T15
Torx T30
1 Demontage der Rückwand
Schrauben mit einem Schraubendreher
Torx T10, T15, T30 entfernen.
1 Disassembly the rear panel
Remove screws with a screw driver
Torx T10, T15, T30.
2 Demontage der Leiterplatten
Elkos können Restladung
enthalten.
Elkos may contain residual
charges.
Schrauben mit einem Schraubendreher
Torx T10 entfernen.
2 Disassembly of the printed
circuit boards
Remove screws with a screw driver
Torx T10.
T10
Technische Änderungen und Irrtümer vorbehalten!
Technical changes and errors excepted!

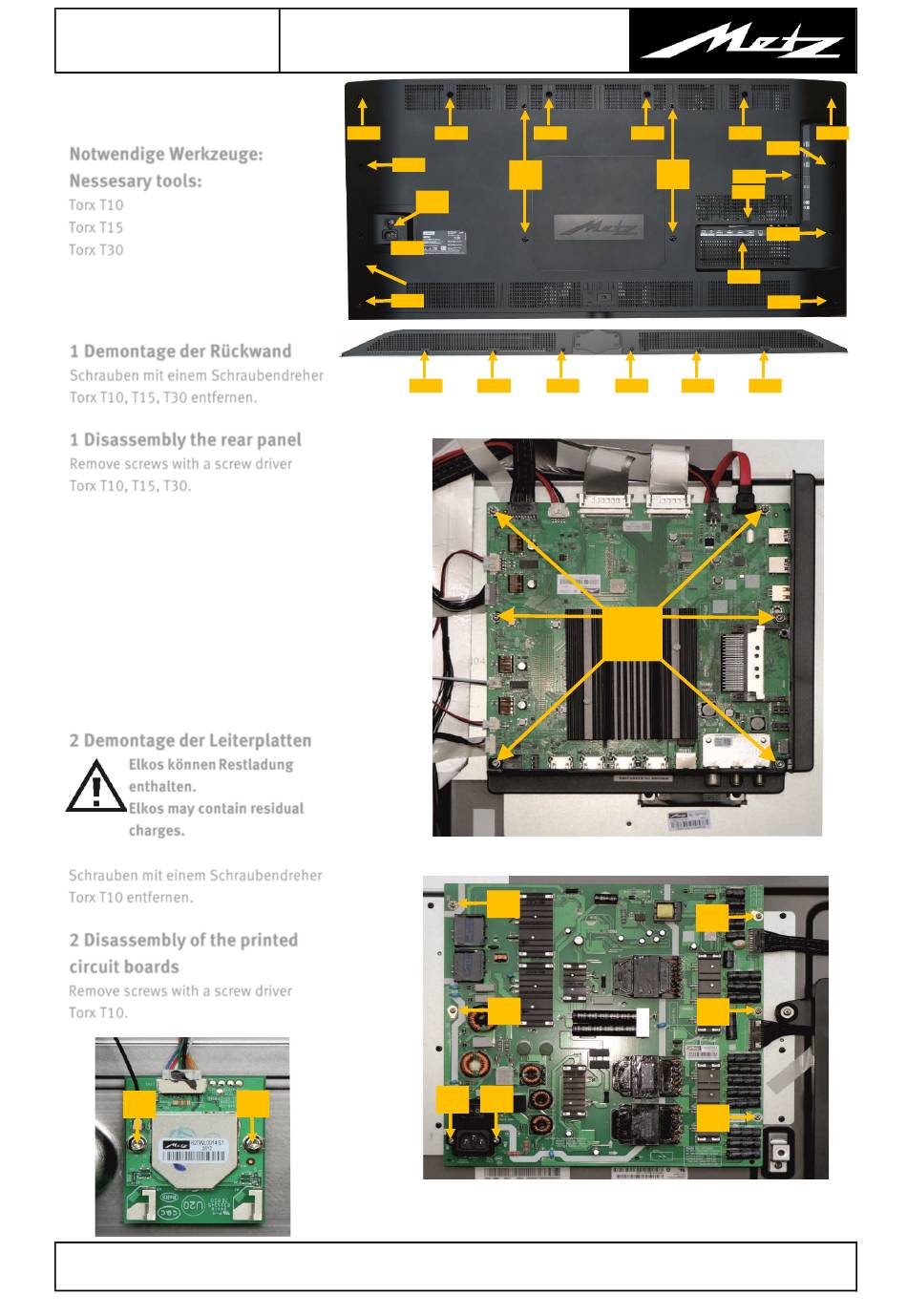

Demontageanleitung
Disassembly instructions
T10
T10
T10
T10
T10
T10
T10
T30
T15
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
T30
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
U2210_40200_00
T10
