ASSEMBLY GUIDE

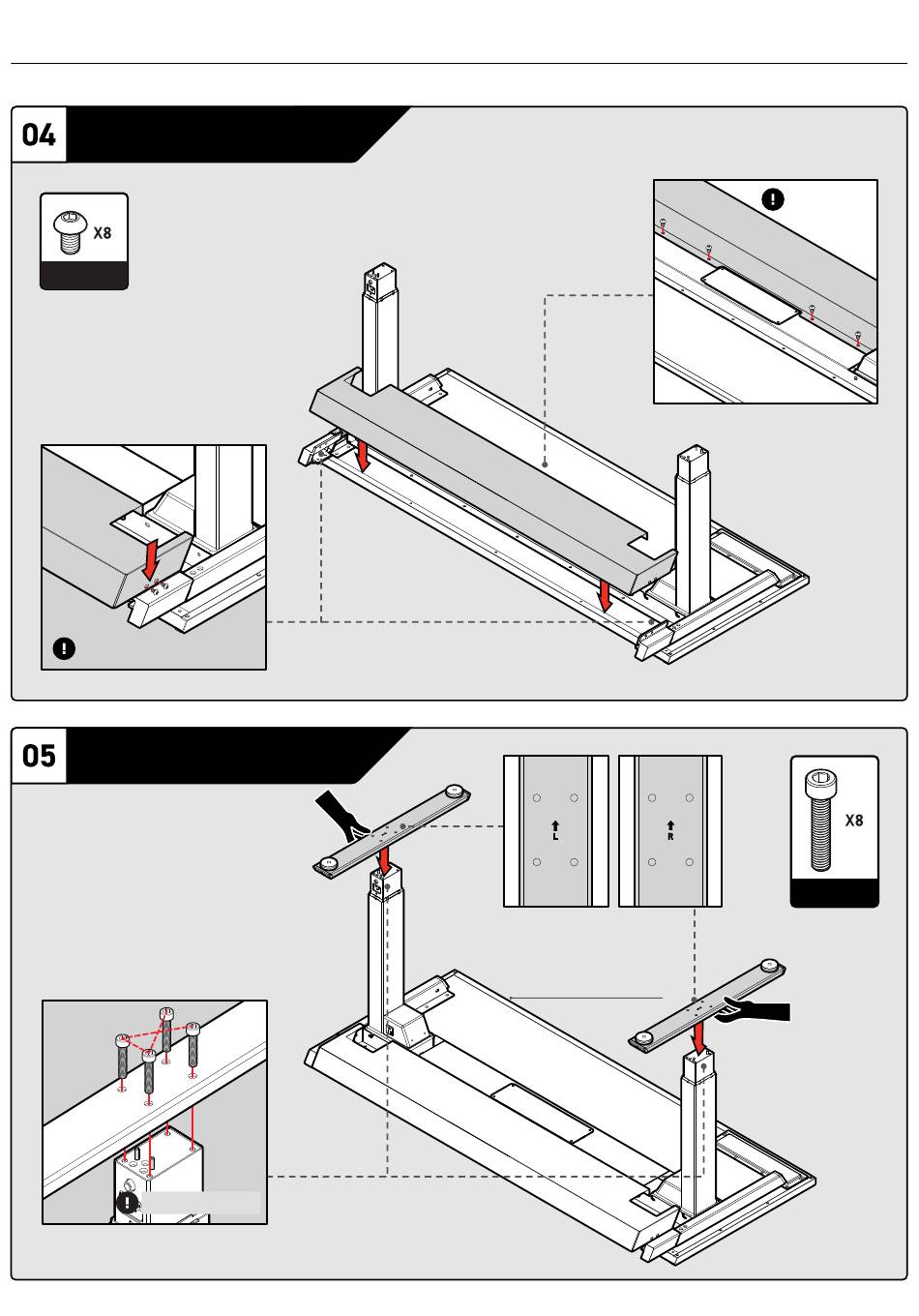

Assembling the Cable Tray
PAN HEAD SCREW
Place the Cable Tray over the
Mounting Blocks. Align the screw
holes on the Cable Tray to the holes
on the Desk Frame and screw in the
fasteners. Fasten the screws on
both sides of the Cable Tray.
Overlap
Assembling the Table Feet
Place the Left and Right Table Feet
onto the Motorized Leg Columns
with the help of the alignment pins.
Make sure the long end of the feet
is facing towards the front of the
desk as indicated by the arrows.
Hold onto the Table Feet as you
screw in the fasteners.
1
3
2
Alignment Pins
4
Metal Desk Top Front
Front View
SOCKET
HEAD SCREW
7
