TIMETRAX™ SYNC POE ANALOG CLOCK
Installation Instructions
OVERVIEW
Thank you for choosing a TimeTrax™ Sync PoE Clock System. The TimeTrax™ PoE clock System is capable of
receiving both its time and power from a cost-effective and reliable Power over Ethernet source.
The POE Analog Clock is powered by PoE Switch (not included) and CAT5 RJ45 cable (not included). See PoE Switch
Method on pg. 2.
Alternate method is to use a PoE Port Injector. See AC-DC Adapter Method on pg. 3.
IMPORTANT: Prior to clock installation, install TimeTrax™ Sync Software (part# SASDLCWDXX sold separately).
For more information, visit pyramidtimesystems.com or call our support team at 888 479-7264 during our regular
business hours M-F 8:30am-5pm EST.

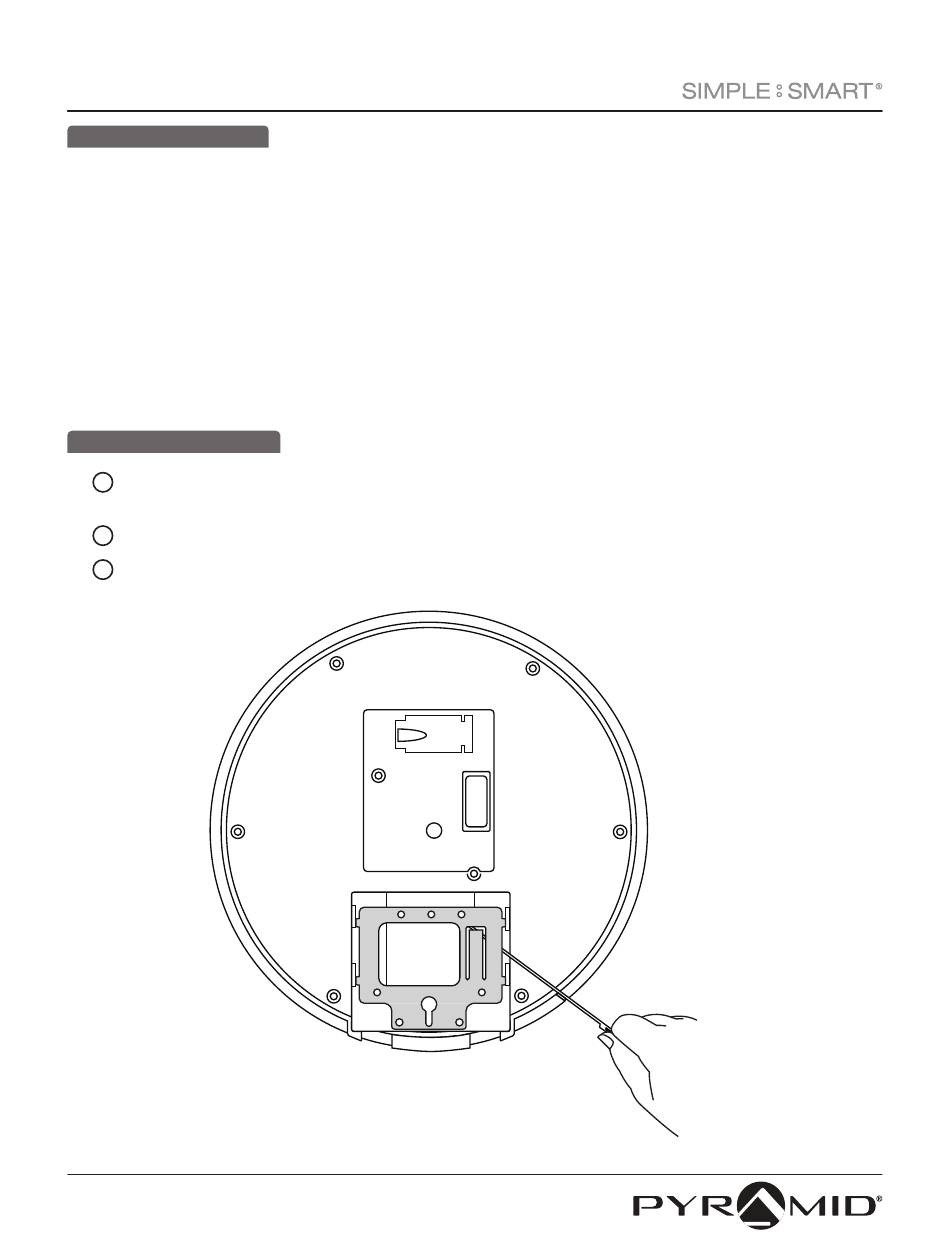

SECURITY BRACKET REMOVAL
Prior to installation, detach metal security bracket from clock by inserting included release key
1
into slot located on back of clock.
Push key all the way into slot. Key will slide easily until some resistance from locking tab is felt.
2
With key fully engaged, slide the security bracket up and off of the clock.
3
I2252 Rev C
Page 1 of 6
888.479.7264 • pyramidtimesystems.com
Advertisement
Table of Contents
Related Manuals for Pyramid TIMETRAX SYNC POE
Summary of Contents for Pyramid TIMETRAX SYNC POE
- Page 1 TIMETRAX™ SYNC POE ANALOG CLOCK Installation Instructions OVERVIEW Thank you for choosing a TimeTrax™ Sync PoE Clock System. The TimeTrax™ PoE clock System is capable of receiving both its time and power from a cost-effective and reliable Power over Ethernet source. The POE Analog Clock is powered by PoE Switch (not included) and CAT5 RJ45 cable (not included).
- Page 2 TIMETRAX™ SYNC POE ANALOG CLOCK Installation Instructions POE SWITCH METHOD Install Security Bracket A. Mount the security bracket flush again the wall using the template, four screws and wall anchors provided. B. Install the security bracket onto the electrical box using 6-32 screws (not provided). Route an RJ45 Cat5E cable (not included) inside the wall through the rectangle opening of the security bracket.
-
Page 3: Ethernet Switch
TIMETRAX™ SYNC POE ANALOG CLOCK Installation Instructions AC-DC ADAPTER METHOD (PORT INJECTOR) Install Security Bracket A. Mount the security bracket flush again the wall using the template, four screws and wall anchors provided. B. Install the security bracket onto the electrical box using 6-32 screws (not provided). Route an RJ45 Cat5E cable (not included) inside the wall through the rectangle opening of the security bracket. -
Page 4: Specifications
-30°F (-34.44°C) to 130°F (54.44°C) is limited to repair or replacement of defective part Warranty 3-Year manufacturer’s limited warranty or parts. Pyramid reserves the right to determine Guarantee 30-Day money back guarantee whether parts failed because of defective material, Compliance IEEE 802.3af/ANSI X3.263... - Page 5 TIMETRAX™ SYNC POE ANALOG CLOCK Installation Instructions 42354 Rev A I2252 Rev C Page 5 of 6 888.479.7264 • pyramidtimesystems.com...
- Page 6 TIMETRAX™ SYNC POE ANALOG CLOCK Installation Instructions 42356 Rev B I2252 Rev C Page 6 of 6 888.479.7264 • pyramidtimesystems.com...
