Email: sales@autel.com
We b : www.autel.com
www.maxisysadas.com

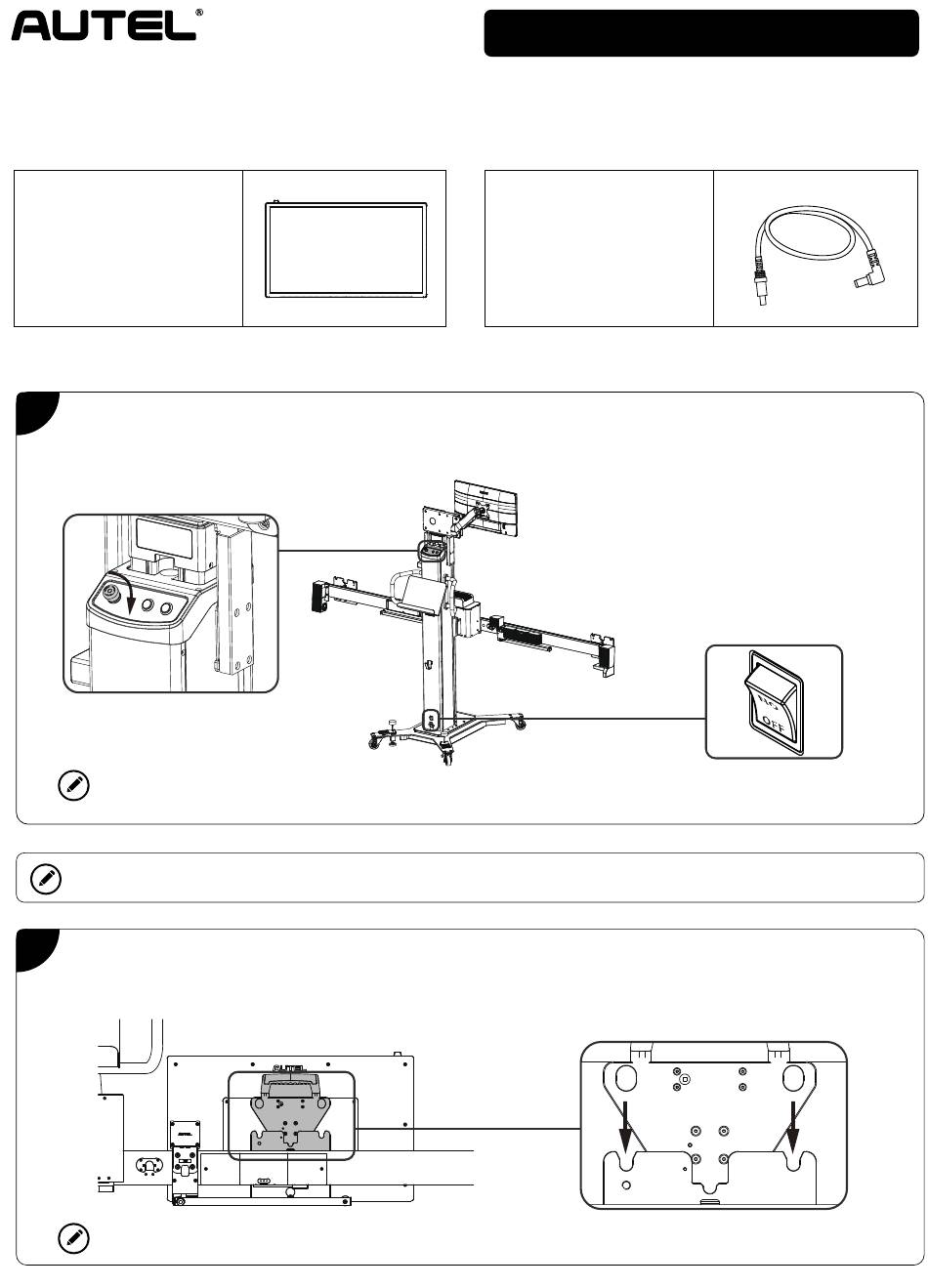

Parts List
Digital Target Panel
2 PCS
Assemble the Digital Target Panel
1
Plug the power cord at the bottom of the column into a power socket. Press the clip above the power cord on the column to
secure it and prevent slipping. Turn on the power switch. The power switch will light up red, the cameras will flash red in a circle,
and the touchscreen monitor will light up.
NOTE:
Check whether the Emergency Stop button is pressed down inadvertently. If so, rotate the button clockwise to
release it.
NOTE:
System power requirements: 100–264 volts AC, < 5 amps, and 50–60 Hz (must be grounded).
2
Move the two sliding plates on the crossbar towards the left and right sides, respectively. Hold the handle on the back of a digital
target panel and align its positioning spaces with the grooves on one of the sliding plates.
NOTE:
The two digital target panels can be assembled on either the left or right sliding plate without regard to side.
Quick Reference Guide
IA1000WA Digital Target Panel
DC Power Cable
2 PCS
AUTEL-CSC050A-16
Advertisement
Related Manuals for Autel IA1000WA
Summary of Contents for Autel IA1000WA
- Page 1 Quick Reference Guide Email: sales@autel.com IA1000WA Digital Target Panel We b : www.autel.com www.maxisysadas.com AUTEL-CSC050A-16 Parts List Digital Target Panel DC Power Cable 2 PCS 2 PCS Assemble the Digital Target Panel Plug the power cord at the bottom of the column into a power socket. Press the clip above the power cord on the column to secure it and prevent slipping.
- Page 2 Insert the L-shaped end of the DC power cable into the port of the digital target panel and the straight end into the port of the sliding plate. The power indicator light on the sliding plate will turn green. Assemble the second digital target panel on the other sliding plate. Once powered on, the digital target panels will display screens indicating that they have connected to the calibration frame via Wi-Fi.
- Page 3 Tap the ADAS & Aligner Settings option on the left column. Select the Calibration Frame Connection option to display the Calibration Frame Connection screen. Toggle the Wi-Fi button to ON. The tablet will search for available units. The Wi-Fi name of the calibration frame will be “ADAS”, suffixed with a serial number.
- Page 4 Establish Communication Between the MaxiSys Tablet and the Digital Target Panel Tap the ADAS Targets application on the MaxiSys Job Menu. Tap the OK button to download the ADAS Targets software in your tablet. Enter the serial number of the calibration frame, which can be found on the main control unit, then tap the Register button. Serial Number...
- Page 5 Tap the OK button when a message pop-up appears to notify of the successful connection, indicating that proper communication has been established between the tablet and the digital target panel. Connect the Digital Target Panel to the Calibration Frame Via Wi-Fi Tap the icon on the right side of the Digital Pattern screen and select the Configure Wi-Fi button.
