Stihl AP, AP 200.0 S, AP 300 S, AP 300.0 S, AP 500.0 S Manual

Guide to Using this Manual

READ BEFORE USING AND KEEP IN A SAFE PLACE FOR REFERENCE.

Applicable documents

The local safety regulations apply.

• In addition to this User Manual, you should also read, understand and retain the following documents:
  • User Manual for the STIHL cordless product
  • Safety instructions and precautions for STIHL AP battery
  • Safety information for STIHL batteries and products with built-in battery: www.stihl.com/safety-data-sheets

For further information on STIHL connected, compatible products and FAQs, please visit www.connect.stihl.com or available from a STIHL authorized dealer.

The Bluetooth^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. These word marks and logos are used by STIHL under license. These word marks and logos are used by STIHL under license.

Batteries with are equipped with a Bluetooth^® radio interface. Local operating restrictions (in aircraft or hospitals, for example) must be complied with.

Symbols used with warnings in the text

• This symbol indicates dangers that can cause serious injuries or death.
  • The measures indicated can avoid serious injuries or death.

NOTICE

• This symbol indicates dangers that can cause damage to property.
  • The measures indicated can avoid damage to property.

Overview

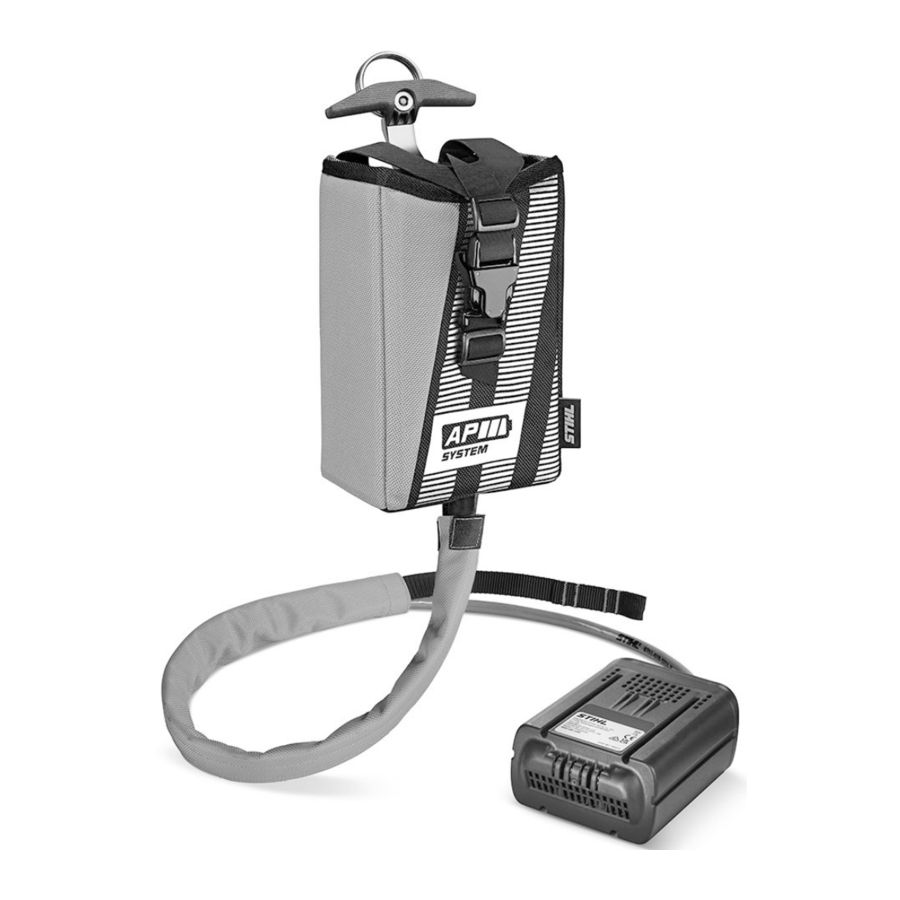

AP webbing sling adapter 2in-1

1. Battery
   The STIHL AK battery supplies power to the tree care chainsaw.
2. LEDs
   The LEDs indicate the state of charge of the battery and any errors.
3. Button
   The pushbutton activates the LEDs on the battery. It activates and deactivates the Bluetooth® interface (if available).
4. BLUETOOTH^® LED (only for batteries with )
   The LED indicates the activation and deactivation of the Bluetooth® interface.
5. AP adapter
   The AP adapter connects the battery to a STIHL tree care chainsaw, with a battery compartment for STIHL AP batteries.
6. Connecting cable
   The connecting cable connects the AP webbing sling adapter 2-in-1 to a STIHL tree care chainsaw.
7. Webbing sling
   The webbing sling secures the STIHL tree care chainsaw to the climbing harness.
8. Protective sheath
   The protective sheath protects the webbing sling and the connecting cable from damage.
9. Handle
   The handle is for guiding and carrying the AP webbing sling adapter 2-in-1.
10. Overload ring
    The overload ring is used for hanging the AP webbing sling adapter 2-in-1 while working in a tree.

11. Tension belt
    The tension belt secures the battery in the AP webbing sling adapter 2-in-1.
12. Battery pouch
    The battery pouch accommodates the battery.

# Rating plate with machine number

Symbols

Meanings of symbols that may be on the battery:

1 LED lights up red. The battery is too warm or too cold.

4 LEDs flash red. There is an error in the battery.

The battery must be recharged with a STIHL charger. The admissible chargers are listed in these safety instructions.

The battery is equipped with a Bluetooth^® radio interface and can be paired with the STIHL connected app.

The information next to the symbol indicates the energy content of the battery according to the cell manufacturer's specification. The energy content available in operation is lower.

Safety Precautions

Warning symbols

The warning symbols on the AP webbing sling adapter 2-in-1 or the battery have the following meanings:

Observe safety notices and take the necessary precautions.

Read and understand the User Manual and keep it in a safe place for reference.

Protect the battery against heat and fire.

Do not immerse the battery in liquids.

Do not use the AP webbing sling adapter 2-in-1 to secure persons.

Intended Use

The AP webbing sling adapter 2-in-1 connects a STIHL AP battery to a STIHL tree care chainsaw, with a battery compartment for STIHL AP batteries.

The AP webbing sling adapter 2-in-1 serves to secure the STIHL tree care chainsaw with a bar length of up to 35 cm, on the climbing harness while working in trees.

The AP webbing sling adapter 2-in-1 may be used in the rain.

The battery may be used in the rain.

The STIHL AP battery supplies power to the STIHL cordless tree care chainsaw.

The AP webbing sling adapter 2-in-1 may not be used for work performed while standing on the ground or in a lift bucket.

The battery with in combination with the STIHL connected app enables customization and the transfer of information to the battery based on Bluetooth^® technology.

• Using the AP webbing sling adapter 2-in-1 or the battery other than for their intended use can result in serious injuries or death and damage to property.
  • Use the AP webbing sling adapter 2-in-1 as described in this User Manual.
  • Use the battery as described in this User Manual, the STIHL connected app and at www.connect.stihl.com.
  • Do not charge the battery in the AP webbing sling adapter 2-in-1.

Requirements for users

• Users who have not received instruction are not aware of and cannot assess the dangers of the AP webbing sling adapter 2-in-1 and the battery. The user or other persons may sustain serious or fatal injuries.
  •
    Read and understand the User Manual and keep it in a safe place for reference.
  • If the AP webbing sling adapter 2-in-1 or the battery is passed on to another person: Always give them the User Manual.
  • Make sure the user meets the following conditions:
    • The user is rested.
    • The user must be in good physical condition and mental health to operate and work with the AP webbing sling adapter 2-in-1 and the battery. If the user is able to operate the equipment but has physical, sensory or mental limitations, the user may only work with the equipment under the supervision of or after receiving instruction from a responsible person.
    • The user can recognize and assess the hazards of the AP webbing sling adapter 2-in-1 and the battery.
    • The user is an adult or is being trained in an occupation under supervision according to national regulations.
    • The user has received instruction from a STIHL authorized dealer or other experienced user before using the AP webbing sling adapter 2-in-1 for the first time.
    • The user is not under the influence of alcohol, medication or drugs.
  • If you are unsure: Contact a STIHL authorized dealer.

Work Area and Surroundings

AP webbing sling adapter 2-in-1

• Bystanders, children and animals cannot recognize or assess the dangers of the AP webbing sling adapter 2-in-1. Bystanders, children and animals may be seriously injured.
  • Keep bystanders, children and animals away from the working area.
  • Do not leave the AP webbing sling adapter 2-in-1 unattended.
  • Make sure that children cannot play with the AP webbing sling adapter 2-in-1.

Battery

• Bystanders, children and animals cannot recognize or assess the dangers of the battery. Bystanders, children and animals may be seriously injured.
  • Keep bystanders, children and animals away from the work area.
  • Do not leave the battery unattended.
  • Make sure that children cannot play with the battery.
• The battery is not protected against all ambient conditions. If the battery is exposed to certain ambient conditions, the battery may catch fire, explode or be irreparably damaged. This may result in serious injury to people and damage to property.
  •
    Protect battery from heat and fire.
  • Do not throw the battery into a fire.
  • Do not charge, use and store the battery outside of the specified temperature limits.
  •
    Do not immerse the battery in liquids.
  • Keep battery away from small metal parts.
  • Do not expose the battery to high pressure.
  • Do not expose the battery to microwaves.
  • Protect the battery against chemicals and salts.

Safe Condition

AP webbing sling adapter 2-in-1

The AP webbing sling adapter 2-in-1 is in a safe condition if the following points are observed:

• The AP webbing sling adapter 2-in-1 is undamaged.
• The AP webbing sling adapter 2-in-1 is clean.
• The overload ring is undamaged.
• The AP webbing sling adapter 2-in-1 functions properly and has not been modified.
• The AP webbing sling adapter 2-in-1 is correctly installed and secured.
• The carabiner is undamaged.
• The carabiner is correctly installed and secured.

• If not in safe condition, components may no longer operate correctly, and safety devices may be rendered ineffective. Persons may be seriously injured or killed.
  • Work only with an undamaged AP webbing sling adapter 2-in-1.
  • Employ the AP webbing sling adapter 2-in-1 only with an undamaged overload ring.
  • If the overload ring is deformed or damaged: Do not use the AP webbing sling adapter 2-in-1 and replace the overload ring.
  • Always work with an undamaged carabiner.
  • If the AP webbing sling adapter 2-in-1 is dirty: Clean the AP webbing sling adapter 2-in-1.
  • Do not modify the AP webbing sling adapter 2-in-1.
  • Never bridge the electrical contacts of the AP webbing sling adapter 2-in-1 with metallic objects (short circuit).
  • Never insert objects in any openings in the AP adapter.
  • Never bridge the electrical contacts of the AP adapter with metallic objects (short circuit).
  • Do not open the AP webbing sling adapter 2-in-1.
  • Do not use the AP webbing sling adapter 2in-1 with carabiners without a manual locking mechanism.
  • Mount the carabiner as described in this User Manual.
  • Replace worn or damaged warning signs.
  • If you are unsure: Contact a STIHL authorized dealer.

Battery

The battery is in a safe condition if the following points are observed:

• Battery is undamaged.
• The battery is clean and dry.
• Battery functions properly and has not been modified.

• A battery that is not in a safe condition cannot operate safely. Persons may be seriously injured.
  • Never work with a damaged battery.
  • Never attempt to charge a damaged or defective battery.
  • If the battery is dirty: Clean the battery.
  • If the battery is wet or damp: Allow the battery to dry.
  • Never attempt to modify the battery.
  • Never insert objects in the battery's openings.
  • Never bridge the battery's contacts with metallic objects (short circuit).
  • Do not open the battery.
  • Replace worn or damaged labels.
• Fluid may leak from a damaged battery. If that liquid comes into contact with the skin or eyes, the skin or eyes may be irritated.
  • Avoid contact with the liquid.
  • If skin contact occurs: Wash affected areas of skin with plenty of water and soap.
  • In the event of contact with eyes: Rinse eyes with plenty of water for at least 15 minutes and consult a doctor.
• A damaged or defective battery may smell unusual, emit smoke or burn. Persons may be seriously or fatally injured, and property may be damaged.
  • If the battery smells unusual or emits smoke: do not use the battery and keep it away from combustible substances.
  • If the battery catches fire: Attempt to extinguish the battery with a fire extinguisher or water.

Connecting cable and webbing sling

Contact with live components may occur for the following reasons:

• The connecting cable is damaged.
• The AP adapter is damaged.

• Contact with live parts may result in electric shock. This may result in serious or fatal injury to the user.
  • Make sure that the connecting cable and the AP adapter are undamaged.
• A carelessly installed connecting cable or webbing sling may become damaged and cause others to trip or fall. People can be injured, and the connecting cable or the webbing sling can become damaged.
  • Position the connecting cable and the webbing sling so that the tool of the STIHL tree care chainsaw cannot touch the connecting cable or the webbing sling.
  • Position the connecting cable so that it cannot be kinked or damaged.
  • If the connecting cable or the webbing sling is twisted: Straighten out the connecting cable or the webbing sling.

Working

• In certain situations, the user may no longer be able to concentrate on their work. This may result in the user stumbling, falling and suffering serious injury.
  • Work calmly and methodically.
  • If light conditions and visibility are poor: Do not work with the AP webbing sling adapter 2-in-1.
  • Watch out for obstacles.
  • Use a suitable fall protection.
  • If you start feeling fatigue: Take a break.
• When you are working in a tree, the AP webbing sling adapter 2-in-1 may fall to the ground. This may result in serious injury to people and damage to property.
  • Secure the AP webbing sling adapter 2-in-1 by means of the overload ring using a carabiner with a manual locking mechanism. Suitable accessories are available from authorized dealers.
• Using incorrect or unsuitable carabiners may fail to properly secure the AP webbing sling adapter 2-in-1 in the event of a fall. Persons may be seriously or fatally injured, and property may be damaged.
  • Always use carabiners with a breaking load of more than 1.5 kN. Suitable accessories are available from authorized dealers.
• If you notice any change in the AP webbing sling adapter 2-in-1 during operation, if it behaves unusually or if there is a quick succession of short beeps, the AP webbing sling adapter 2-in-1 may be in an unsafe condition. This may result in serious injury to people and damage to property.
  • Stop working, remove the battery and contact a STIHL authorized dealer.
• In an emergency, the user may panic and fail to dismantle the AP webbing sling adapter 2in-1. This may result in serious injury to the user.
  • Stop working, switch off the STIHL tree care chainsaw and secure the climbing harness.
  • Open the carabiner on the climbing harness and release the battery pouch and battery.
  • Practice the dismantling of the AP webbing sling adapter 2-in-1.

Transporting

AP webbing sling adapter 2-in-1

• The AP webbing sling adapter 2-in-1 may tip over or shift during transport. People may be injured or property may be damaged.
  • Remove the AP adapter out of the battery compartment of the STIHL tree care chainsaw.
  • Remove the battery.
  • Secure the AP webbing sling adapter 2-in-1 with tension belts, straps or a net to prevent it from turning over and moving.

Battery

• The battery is not protected against all ambient conditions. The battery may be damaged if it is exposed to certain ambient conditions, and damage to property may occur.
  • Never transport a damaged battery.
• The battery may turn over or shift during transport. This may result in injury to people and damage to property.
  • Pack the battery in packaging in such a way that it cannot move.
  • Secure the packaging so that it cannot move.

Storing

AP webbing sling adapter 2-in-1

• Children are not aware of and cannot assess the dangers of the AP webbing sling adapter 2-in-1. Children may be seriously injured.
  • Remove the battery.
  • Store the AP webbing sling adapter 2-in-1 out of the reach of children.
• The electrical contacts on the AP webbing sling adapter 2-in-1 can corrode if they are damp. The AP webbing sling adapter 2-in-1 may become damaged.
  • Remove the battery.
  • Store the AP webbing sling adapter 2-in-1 in clean and dry conditions.
• Do not use the connecting cable or the webbing sling for carrying or suspending the AP webbing sling adapter 2-in-1. The connecting cable and the AP webbing sling adapter 2-in-1 may become damaged.
  • Roll up the connecting cable and the webbing sling in a loop and secure them with the tension belt.

Battery

• Children are not aware of and cannot assess the dangers of the battery. Children may be seriously injured.
  • Store the battery out of the reach of children.
• The battery is not protected against all ambient conditions. If the battery is exposed to certain ambient conditions, the battery may be irreparably damaged.
  • Store the battery in a clean and dry condition.
  • Store the battery in an enclosed space.
  • Store the battery separately from the product.
  • If the battery is stored in the charger, disconnect the mains plug and store the battery at a state of charge between 40% and 60% (2 lit green LEDs).
  • Do not store the battery outside of the specified temperature limits.

Cleaning, maintenance and repair

• Harsh detergents, cleaning with a water jet or sharp objects can damage the AP webbing sling adapter 2-in-1 or the battery. If the AP webbing sling adapter 2-in-1 or the battery is not cleaned correctly, components may no longer function properly or safety devices may be rendered inoperative. People may suffer serious injuries as a result.
  • Clean the AP webbing sling adapter 2-in-1 and the battery as described in this User Manual.
• If the AP webbing sling adapter 2-in-1, the overload ring or the battery is not serviced or repaired correctly, components may no longer function properly or safety devices may be rendered inoperative. Persons may be seriously injured or killed.
  • Do not attempt to service or repair the AP webbing sling adapter 2-in-1 or the battery yourself.
  • If the AP webbing sling adapter 2-in-1 or the battery needs to be serviced or repaired: contact your STIHL authorized dealer for assistance.
  • Service or repair the overload ring as described in this User Manual.

Preparing the AP webbing sling adapter 2-in-1 for operation

The following steps must be performed before commencing work:

• Check the battery.
• Fully charge the battery as described in the User Manual for STIHL AL 101, 301, 301-4, 500 and 501 chargers.
• Clean the AP webbing sling adapter 2-in-1.
• Ensure that the following components are in a safe condition:
  • AP webbing sling adapter 2-in-1.
  • Overload ring.
  • Battery.
• If you cannot carry out these steps: Do not use the AP webbing sling adapter 2-in-1 and instead contact a STIHL authorized dealer for assistance.

Connecting a battery with Bluetooth^® radio interface with the STIHL connected app

• Activate the Bluetooth^® radio interface on the mobile device.
• Activating the Bluetooth^® radio interface on the battery.
• Download the STIHL connected app to the mobile device from the App Store and create an account.
• Open and sign in to the STIHL connected app.
• Add the battery in the STIHL connected app and follow the instructions on the screen.

For contacts and other information, please visit https://support.stihl.com or see the STIHL connected app.

The STIHL connected app is available internationally.

Displaying State of Charge, LEDs and Signals

Displaying the charge level

• Press the button (1).
  The LEDs light up green for about 5 seconds and indicate the state of charge.
• If the LED on the right flashes green: Charge the battery.

LEDs on Battery

The LEDs can show the state of charge or malfunctions. The LEDs can glow or flash green or red.

The state of charge is indicated when the LEDs glow or flash green.

• If the LEDs glow or flash red: Troubleshooting.
  There is a malfunction in the cordless product or battery.

Beeps

The beeps can confirm contact between the AP webbing sling adapter 2-in-1 and the battery or indicate malfunctions.

A short beep indicates that the battery is properly seated in the AP webbing sling adapter 2-in-1. The AP webbing sling adapter 2-in-1 is ready for use.

A short beep also sounds when the STIHL tree care chainsaw is switched on again after a work break of about 10 minutes.

• If short beeps sound in quick succession: Troubleshooting.
  AP webbing sling adapter 2-in-1 fault, battery fault or STIHL tree care chainsaw fault.

Activating and Deactivating Bluetooth® Radio Interface

Activating the Bluetooth^® Radio Interface

• If the battery has a Bluetooth^® radio interface: Press and hold the pushbutton until the "BLUETOOTH^®" LED next to the symbol lights up blue for approximately 3 seconds.
  The Bluetooth^® radio interface on the battery is activated.

Deactivating the Bluetooth^® Radio Interface

• If the battery has a Bluetooth^® radio interface: Press and hold the pushbutton until the "BLUETOOTH^®" LED next to the symbol lights up blue six times.
  The Bluetooth^® radio interface on the battery is deactivated.

Reset battery to the factory setting via a Bluetooth^® radio interface (AP 200.0 S, 300 S, 300.0 S, 500.0 S only)

Resetting the battery to the factory setting means that all user-specific data will be deleted.

• Press the pushbutton four (4) times in quick succession and keep it pressed on the fourth time until the "BLUETOOTH^®" LED next to the symbol flashes blue.
• Then release the pushbutton immediately.
• Connect the battery to the STIHL connected app and check whether all user-specific data has been deleted.

Installing the AP webbing sling adapter 2-in-1

The AP webbing sling adapter 2-in-1 may only be used in connection with carabiners with a manual locking mechanism and which has a breaking load of more than 1.5 kN. Suitable accessories are available from authorized dealers.

• Check the overload ring (1) for deformation or damage.
• If the overload ring is deformed or damaged:
  Do not use the webbing sling adapter 2-in-1 and replace the overload ring.

• Attach the carabiner (2) to the climbing harness.
• Attach the overload ring (3) in the carabiner to the climbing harness.
• Lock the carabiner.

• Push the battery (4) as far as it will go in the belt pouch (5). A short beep will sound.
• Secure the battery with the tension belt (6) and close the locking mechanism.

• Attach the carabiner (7) to the webbing sling (8).
• Hook the carabiner into the ring (9) of the STIHL tree care chainsaw.
• Lock the carabiner.

Removing the AP webbing sling adapter 2-in-1

• Switch off the STIHL tree care chainsaw.
• Remove the AP adapter out of the battery compartment of the STIHL tree care chainsaw.
• Unlock, open and unhook the carabiner on the STIHL tree care chainsaw (8).
• Remove the battery.
• Unlock and open the carabiner on the climbing harness, and remove and lift off the AP webbing sling adapter 2-in-1 by the handle.

Fastening and detaching the AP webbing sling adapter 2-in-1

Connecting the AP adapter with a STIHL tree care chainsaw with battery compartment

• Insert the AP adapter (1) in the battery compartment (2) of the STIHL tree care chainsaw.

Disconnecting the AP webbing sling adapter 2-in-1

• Switch off the STIHL tree care chainsaw.
• Remove the AP adapter out of the battery compartment of the STIHL tree care chainsaw.
• Remove the battery.

Testing the Battery

• Press button on battery. The LEDs glow or flash.
• If the LEDs do not glow or flash: Do not use the battery and contact your STIHL servicing dealer.

There is a malfunction in the battery.

After Finishing Work

• Switch off the STIHL tree care chainsaw.
• Remove the AP webbing sling adapter 2-in-1.
• Remove the battery.
• If the battery is moist or wet: Allow the battery to dry.
• Clean the AP webbing sling adapter 2-in-1.
• Clean the battery.

Transporting

Transporting the AP webbing sling adapter 2-in-1

• Switch off the STIHL tree care chainsaw.
• Remove the AP webbing sling adapter 2-in-1.
• Remove the battery.
• Push the AP adapter as far as it will go in the belt pouch.

Carrying the AP webbing sling adapter 2-in-1

• Carry the battery pouch by its handle with one hand.

Transporting the AP webbing sling adapter 2-in-1 using the overload ring

• Transport the AP webbing sling adapter 2-in-1 using the overload ring (1).

Transporting the battery

• Remove the battery.
• Check that the battery is in a safe condition.
• Pack the battery in packaging in such a way that it cannot move inside the packaging.
• Secure the packaging so that it cannot move.

The battery is subject to the Carriage of Dangerous Goods regulations. The battery is classified as UN 3480 (lithium ion batteries) and has been tested pursuant to UN Manual Tests and Criteria Part III, Subsection 38.3.

Storing

Storing the AP webbing sling adapter 2-in-1

• Switch off the STIHL tree care chainsaw.
• Remove the AP webbing sling adapter 2-in-1.
• Remove the battery.

• Roll up the protective sheath (1) in a loop and secure it with the tension belt (2).
• The AP webbing sling adapter 2-in-1 should be stored in such a way that the following conditions are met:
  • The AP webbing sling adapter 2-in-1 is out of the reach of children.
  • The AP webbing sling adapter 2-in-1 is clean and dry.
  • The AP webbing sling adapter 2-in-1 is not hanging from the connecting cable or the webbing sling.

Storing the battery

STIHL recommends keeping the battery in a charging state between 40% and 60% (2 lit green LEDs).

• The battery should be stored in such a way that the following conditions are fulfilled:
  • The battery is out of the reach of children.
  • The battery is clean and dry.
  • The battery is in an enclosed space.
  • The battery is stored separately from the product.
  • If the battery is stored in the charger, disconnect the mains plug and store the battery at a state of charge between 40% and 60% (2 lit green LEDs).
  • Do not store the battery outside of the specified temperature limits.

NOTICE

• If the battery is not stored as described in this user manual, the battery may become deeply discharged and irreparably damaged.
  • Charge a discharged battery before storing it. STIHL recommends storing the battery in a state of charge between 40% and 60% (2 lit green LEDs).
  • Store the battery separately from the product.

Cleaning

Cleaning the AP webbing sling adapter 2-in-1

• Switch off the STIHL tree care chainsaw.
• Remove the AP webbing sling adapter 2-in-1.
• Remove the battery.
• Clean the AP webbing sling adapter 2-in-1 with a damp cloth.
• Remove any foreign objects from the battery pouch, and clean the battery pouch with a damp cloth.
• Use a paintbrush or soft brush to clean the electrical contacts in the battery pouch.

Cleaning the Battery

• Clean the battery with a damp cloth.

Maintenance

Maintenance intervals

Maintenance intervals depend on the ambient conditions and the operating conditions. STIHL recommends the following maintenance intervals:

Before each use:

• Check the overload ring.

Replacing the overload ring

Replace a deformed or damaged overload ring. Only use original STIHL spare parts.

• Remove the screw (1).
• Remove the handle (2).
• Pull the barrier bar (3) down and pull the deformed or damaged overload ring (4) upward.
• Refrain from using the deformed or damaged overload ring and screw and dispose of them.

• Insert the overload ring (5) with the narrow side facing down.
• Allow the barrier bar to spring back.
• Insert the handle.
• Screw in and securely tighten the screw (6).
• If you are unsure: Contact a STIHL authorized dealer.

Repairing

Repairing the AP webbing sling adapter 2-in-1 or the battery

The AP webbing sling adapter 2-in-1 or the battery cannot be repaired by the user.

• If the overload ring is deformed or damaged: Do not use the webbing sling adapter 2-in-1 and replace the overload ring.
• If the connecting cable, the webbing sling or the protective sheath is faulty or damaged: Have the connecting cable, the webbing sling or the protective sheath replaced by a STIHL authorized dealer.
• If the battery pouch or the AP adapter is faulty or damaged: Have the battery pouch or the AP adapter replaced by a STIHL authorized dealer.
• If the battery is defective or damaged: Replace the battery.

Troubleshooting

Troubleshooting the STIHL tree care chainsaw, the AP webbing sling adapter 2-in-1 or the battery

Error	LEDs on the battery and beeps	Cause	Remedy
The STIHL tree care chainsaw does not run after switch-on or cuts out during operation.	1 LED flashes green.	State of charge of the battery is too low.	Charge the battery as described in the User Manual for STIHL AL 101, 301, 301-4, 500 and 501 chargers.
	1 LED lights up steady red.	The battery is too warm or too cold.	Remove the battery. Allow the battery to cool down or warm up.
	3 LEDs flash red.	STIHL tree care chainsaw fault.	Remove the battery. Clean the electrical contacts in the battery pouch. Insert the battery. Switch on the STIHL tree care chainsaw. If 3 LEDs continue to flash red: Contact your STIHL authorized dealer for assistance.
	3 LEDs light up red.	The STIHL tree care chainsaw is too hot.	Remove the battery. Allow the STIHL tree care chainsaw to cool down.
	4 LEDs flash red and short beeps sound in quick succession.	There is an error in the battery.	Remove the battery and reinsert it. Switch on the STIHL tree care chainsaw. If 4 LEDs continue to flash red and short beeps sound in quick succession: Do not use the battery and contact your STIHL authorized dealer for assistance.
		No electrical contact between the STIHL tree care chainsaw and the battery.	Remove the battery. Clean the electrical contacts in the battery pouch. Insert the battery.
		The STIHL tree care chainsaw or the battery is damp.	Allow the STIHL tree care chainsaw or the battery to dry.
		The AP webbing sling adapter 2-in-1 is too hot.	Remove the battery. Allow the AP webbing sling adapter 2in-1 to cool down.
	Short beeps sound in quick succession.	STIHL tree care chainsaw fault or AP webbing sling adapter 2-in-1 fault.	Remove the battery. Clean the electrical contacts in the battery pouch. Insert the battery. Switch on the STIHL tree care chainsaw. If short beeps continue to sound in quick succession: Contact a STIHL authorized dealer for assistance.
The STIHL tree care chainsaw runtime is too short.		The battery is not fully charged.	Fully charge the battery as described in the User Manual for STIHL AL 101, 301, 301-4, 500 and 501 chargers.
		The battery service life has been exceeded.	Replace battery.
The STIHL connected app is unable to find the battery with .		The Bluetooth® radio interface on the battery or mobile device is deactivated.	Activate the Bluetooth® radio interface on the battery or mobile device.
		Excessive distance between the battery and the mobile device.	Reduce distance. If the STIHL connected app is still unable to find the battery: Contact a STIHL authorized dealer.

Product Support and Assistance on Use
Product support and assistance on use are available from STIHL servicing dealers.

For contacts and other information, please visit https://support.stihl.com or www.stihl.com.

Specifications

AP webbing sling adapter 2in-1

• Approved batteries:
• STIHL AP
• Breaking load of the overload ring: 1.5 kN
• Length of the connecting cable: 1.4 m
• Weight without battery: 1.8 kg

STIHL AP Battery

• Battery technology: Lithium-ion
• Voltage: 36 V
• Capacity in Ah: see rating label
• Energy content in Wh: see rating label
• Weight in kg: See rating label
• Bluetooth^® radio interface (only for batteries with ):
• Data connection: Bluetooth^® 5.1. The mobile device must be compatible with Bluetooth^® Low Energy 5.0 and support Generic Access Profile (GAP).
• Frequency band: ISM band 2.4 GHz
• Maximum RF power transmitted: 1 mW
• Signal range: approx. 10 m. The signal strength depends on the ambient conditions and the mobile device. The signal range can vary greatly depending on local conditions and the receiver used. The range may be perceptibly reduced inside enclosed rooms and through metal barriers (such as walls, shelves or cases).
• Mobile device operating system requirements: Android or iOS (current version or higher)

The power output of the battery may vary depending on the battery product used.

Temperature limits

• The battery is not protected against all ambient conditions. If the battery is exposed to certain environmental conditions, it may catch fire or explode. This may result in serious injury to people and damage to property.
  • Do not use the AP webbing sling adapter 2in-1 or the battery at temperatures below -20°C or above 50°C.
  • Do not store the AP webbing sling adapter 2-in-1 or the battery at temperatures below -20°C or above 50°C.

Recommended temperature ranges

For optimum performance of the AP webbing sling adapter 2-in-1 and the battery observe the following temperature ranges:

• Use: -10°C to 40°C
• Storage: -20°C to 50°C

If the battery is charged, used or stored outside the recommended temperature ranges, performance may be restricted.

If the battery is wet or moist, allow the battery to dry for at least 48 h between 15°C and 50°C and with less than 70% humidity. Higher humidity levels may extend the drying time.

REACH

REACH is an EC regulation and stands for the Registration, Evaluation, Authorisation and Restriction of Chemical substances.

For information on compliance with the REACH regulation see www.stihl.com/reach.

Spare parts and accessories

These symbols indicate original STIHL spare parts and original STIHL accessories.

STIHL recommends the use of original STIHL spare parts and accessories.

Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitability of other manufacturers' spare parts and accessories; accordingly, STIHL cannot warrant for the use of those parts.

Original STIHL spare parts and original STIHL accessories are available from STIHL dealers.

Addresses

www.stihl.com

Documents / Resources

References

• STIHL Safety Data Sheets: Complete Overview | STIHL
• STIHL Connect
• Hilfe und Beratung zu E-Commerce und STIHL Produkten | STIHL Support
• STIHL International Website - Your manufacturer for power garden tools | STIHL
• REACH Regulation regarding our Products | STIHL

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Stihl AP, AP 200.0 S, AP 300 S, AP 300.0 S, AP 500.0 S Manual
