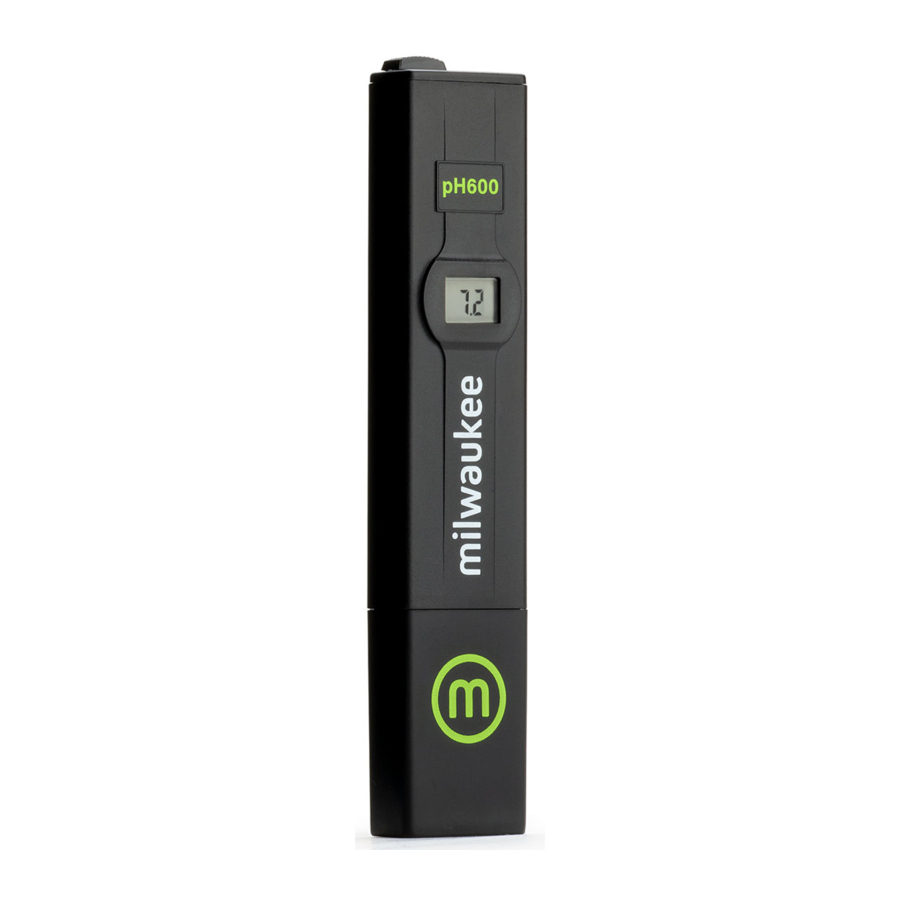

Milwaukee pH600 Manual

OVERVIEW

OPERATING

• Ÿ Do not be alarmed if white crystals appear around the cap. This is normal with pH electrodes and they dissolve when rinsed with water.

• Ÿ Remove the protective cap and turn the pH600 on.
• Ÿ Immerse it into solution up to the maximum immersion level.
• Ÿ Stir gently and wait until the display stabilizes.
• Ÿ After use, rinse the electrode with water to minimize contamination.
• Ÿ Store the electrode with a few drops of storage solution (MA9015) in the protective cap.
• Ÿ Always replace the protective cap after use.
  DO NOT USE DISTILLED OR DEIONIZED WATER FOR STORAGE PURPOSES.
• Ÿ Large differences in pH readings (e.g. ±0.5 pH) could be due to lack of calibration, dry electrode or rundown batteries.

CALIBRATION

The calibration procedure is very simple and fast.

• Ÿ Immerse the tester up to the maximum level in pH 7.01 buffer (M10007B).
• Ÿ Allow the reading to stabilize and using a small screwdriver turn the pH 7 Calibration Trimmer to read 7.0


Calibration is now complete.
ALWAYS USE FRESH BUFFER FOR CALIBRATION & NEVER REUSE THEM

BATTERY REPLACEMENT

When the pH600 cannot be switched on or the display fades, pullout the battery compartment and replace all three 1.5V batteries, paying attention to their polarity.

Batteries should only be replaced in a non-hazardous area using the battery types specified in this instruction manual.

SPECIFICATIONS

ACCESSORIES
