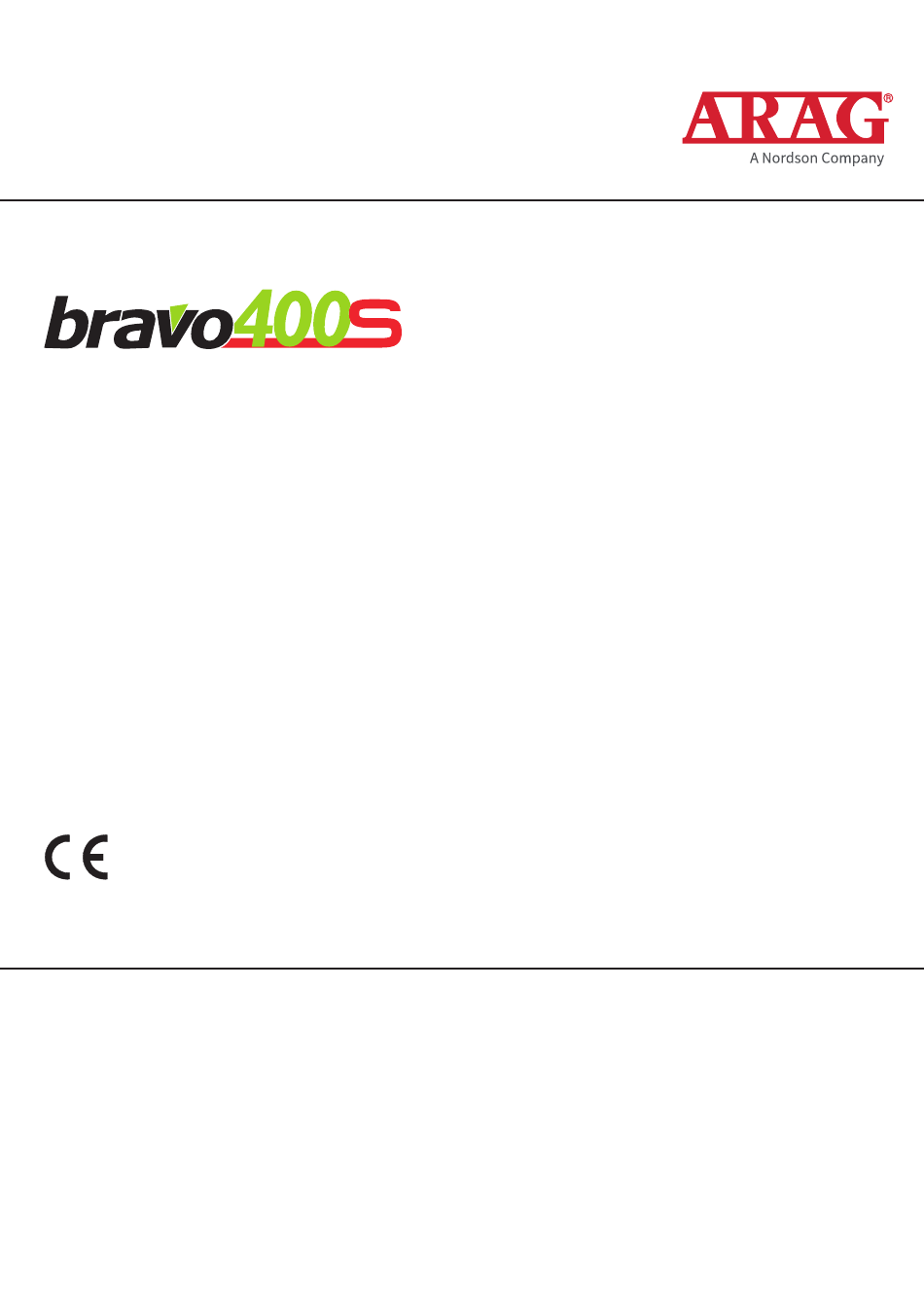

- Page 1 MONITOR BRAVO 400S WITH INTEGRATED GPS NAVIGATOR 4674AXXXX INSTALLATION...
-
Page 2: Table Of Contents
LEGEND OF SYMBOLS = Generic danger = Warning = remote control unit IBX100 CONTENTS • Manual use modes ......................................3 • Limitations ........................................3 • Responsibilities ......................................3 Risks and protections before assembly ..............................3 Intended use ........................................3 Precautions ........................................3 Package content ...................................... -
Page 3: Manual Use Modes
INTRODUCTION • MANUAL USE MODES This manual contains information for installers. For this reason we have used technical terms without providing any explanations. THE INSTALLATION MUST BE CARRIED OUT BY AUTHORIZED AND SKILLED PERSONNEL ONLY. ARAG IS NOT RESPONSIBLE FOR ANY INSTALLATION CARRIED OUT BY UNAUTHORIZED OR UNSKILLED PERSONNEL. •... -
Page 4: Installation
INSTALLATION POSITION ON FARMING MACHINE Monitor positioning • monitor series Bravo 400S must be placed in the control cabin of the farming machine. Observe the following precautions: - Do NOT install the monitor in areas where it would be subjected to excessive vibrations or shocks, to prevent any damage or accidental use of the control keys;... -
Page 5: Wiring Connections
INSTALLATION WIRING CONNECTIONS • Only use ARAG harnesses suitable for Bravo 400S monitor. • Take care not to break, pull, tear or cut the cables. • Use of unsuitable cables not provided by ARAG automatically voids the warranty. • ARAG is not liable for damages to the equipment, persons or animals caused by failure to observe the above instructions. Auxiliary function and power supply connection WARNING: To avoid short circuits, do not connect the power cables to battery before the installation is completed. -
Page 6: Power Supply Connection
ACCESSORIES 6.1.2 POWER SUPPLY CONNECTION Bravo 400S is supplied directly by the farming machine battery (12 VDC): ALWAYS switch on the system through the computer, and then remember to switch it off using the specific key on the control panel. If Bravo 400S remains on for a long time with machine off, the tractor battery could run flat: in case of prolonged breaks of the machine with engine off, make sure the monitor is off, too. -
Page 7: Maintenance / Diagnostics / Repairs
MAINTENANCE / DIAGNOSTICS / REPAIRS MAINTENANCE / DIAGNOSTICS / REPAIRS Troubleshooting FAULT CAUSE REMEDY No power supply • Check power supply connection The display does not switch on Monitor is OFF • Press the ON key Cleaning rules - Clean only with a soft wet cloth. - DO NOT use aggressive detergents or products. - Page 8 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to the internet address www.aragnet.com 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 http://www.aragnet.com info@aragnet.com...
