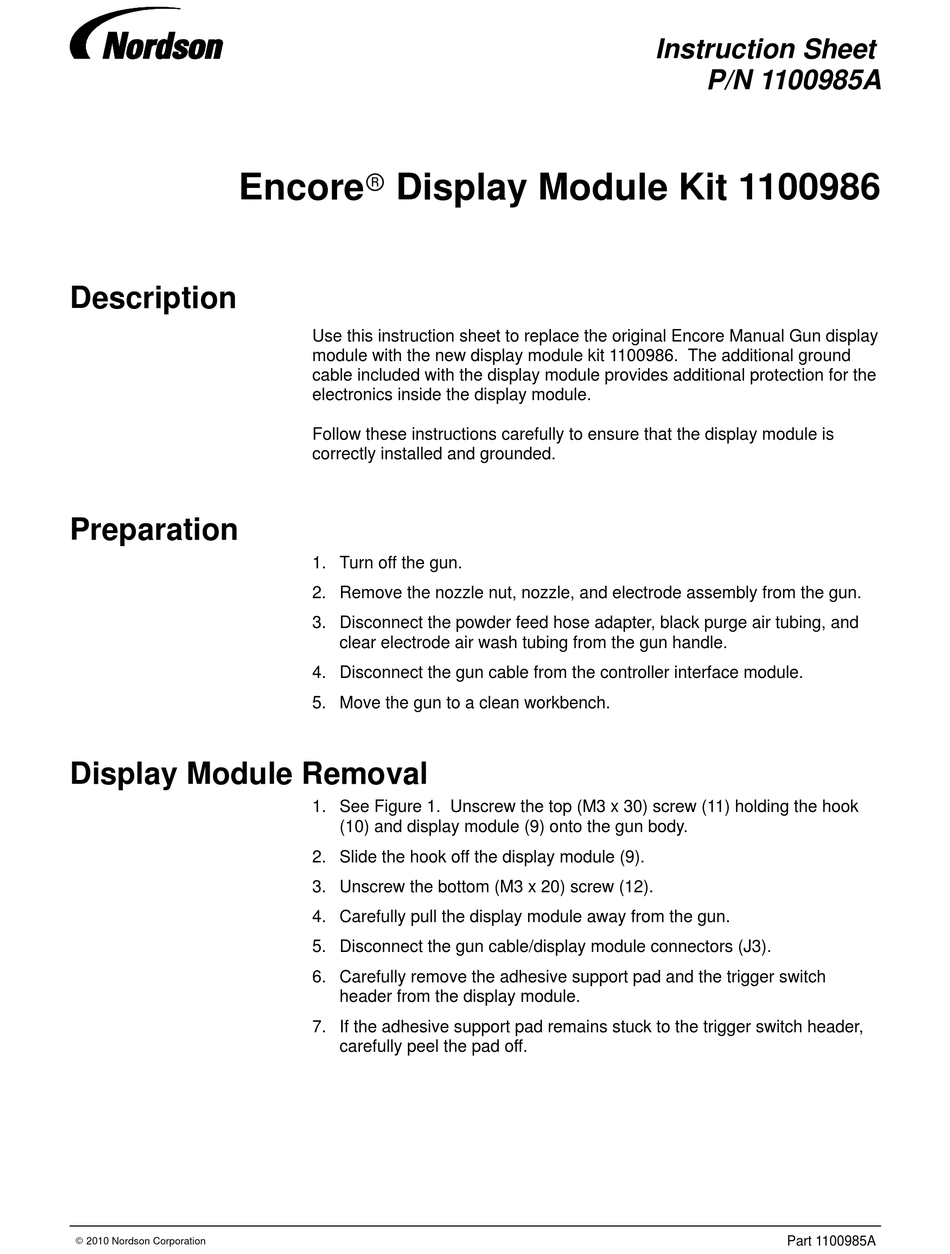

Encorer Display Module Kit 1100986
Description
Preparation
Display Module Removal
E 2010 Nordson Corporation
Use this instruction sheet to replace the original Encore Manual Gun display
module with the new display module kit 1100986. The additional ground
cable included with the display module provides additional protection for the
electronics inside the display module.
Follow these instructions carefully to ensure that the display module is
correctly installed and grounded.
1. Turn off the gun.
2. Remove the nozzle nut, nozzle, and electrode assembly from the gun.
3. Disconnect the powder feed hose adapter, black purge air tubing, and
clear electrode air wash tubing from the gun handle.
4. Disconnect the gun cable from the controller interface module.
5. Move the gun to a clean workbench.
1. See Figure 1. Unscrew the top (M3 x 30) screw (11) holding the hook
(10) and display module (9) onto the gun body.
2. Slide the hook off the display module (9).
3. Unscrew the bottom (M3 x 20) screw (12).
4. Carefully pull the display module away from the gun.
5. Disconnect the gun cable/display module connectors (J3).
6. Carefully remove the adhesive support pad and the trigger switch
header from the display module.
7. If the adhesive support pad remains stuck to the trigger switch header,
carefully peel the pad off.
Instruction Sheet
P/N 1100985A
Part 1100985A
Advertisement
Table of Contents
Related Manuals for Nordson Encore 1100986
Summary of Contents for Nordson Encore 1100986
- Page 1 6. Carefully remove the adhesive support pad and the trigger switch header from the display module. 7. If the adhesive support pad remains stuck to the trigger switch header, carefully peel the pad off. E 2010 Nordson Corporation Part 1100985A...
- Page 2 4. Leave the power supply (6) installed in the gun body. If you remove it, make sure to mate up the gun body ribs with the grooves in the power supply when you re-install it. Ribs and Grooves Figure 2 Removing the Bulkhead and Power Supply E 2010 Nordson Corporation Part 1100985A...
- Page 3 8. Remove the two M3 x 20 screws (12) securing the handle base (22) to the handle assembly. 9. Pull the base away from the handle assembly about 25-50 mm (1-2 in.). 10. Pull the clear 4-mm tubing (4A, part of filter assembly) off the barbed fitting (20). E 2010 Nordson Corporation Part 1100985A...
- Page 4 (20) and disconnect the gun cable ground wire and display module ring-tong terminals from the fitting. 15. Slip the gun cable and display module ground terminals over the fitting. Install the internal-toothed lockwasher and nut on the fitting and tighten the nut. E 2010 Nordson Corporation Part 1100985A...
- Page 5 (28) through the handle as shown. Stop when the base is about 1.5-2 inches from the bottom of the handle assembly. 18. Connect the 4-mm clear tubing (part of filter assembly, item 4) to the barbed fitting (20) in the handle base. E 2010 Nordson Corporation Part 1100985A...
- Page 6 22. Press on the end of the power supply to ensure that the contact tip at the end of the gun body is firmly seated against the brass contact inside the end of the power supply. E 2010 Nordson Corporation Part 1100985A...
- Page 7 Figure 12 Outlet Powder Tube Installation 13. Elbow 14. Outlet powder tube 29. See Figure 3. Install the M5 x 10 flat head nylon screw into the gun body to secure it to the handle. E 2010 Nordson Corporation Part 1100985A...
- Page 8 Install the electrode holder, nozzle and nozzle nut. Reconnect the gun cable, clear air wash tubing, and purge air tubing to the gun handle. Issued 3/10 Original copyright date 2010. Encore, Nordson, and the Nordson logo are registered trademarks of Nordson Corporation. E 2010 Nordson Corporation Part 1100985A...
