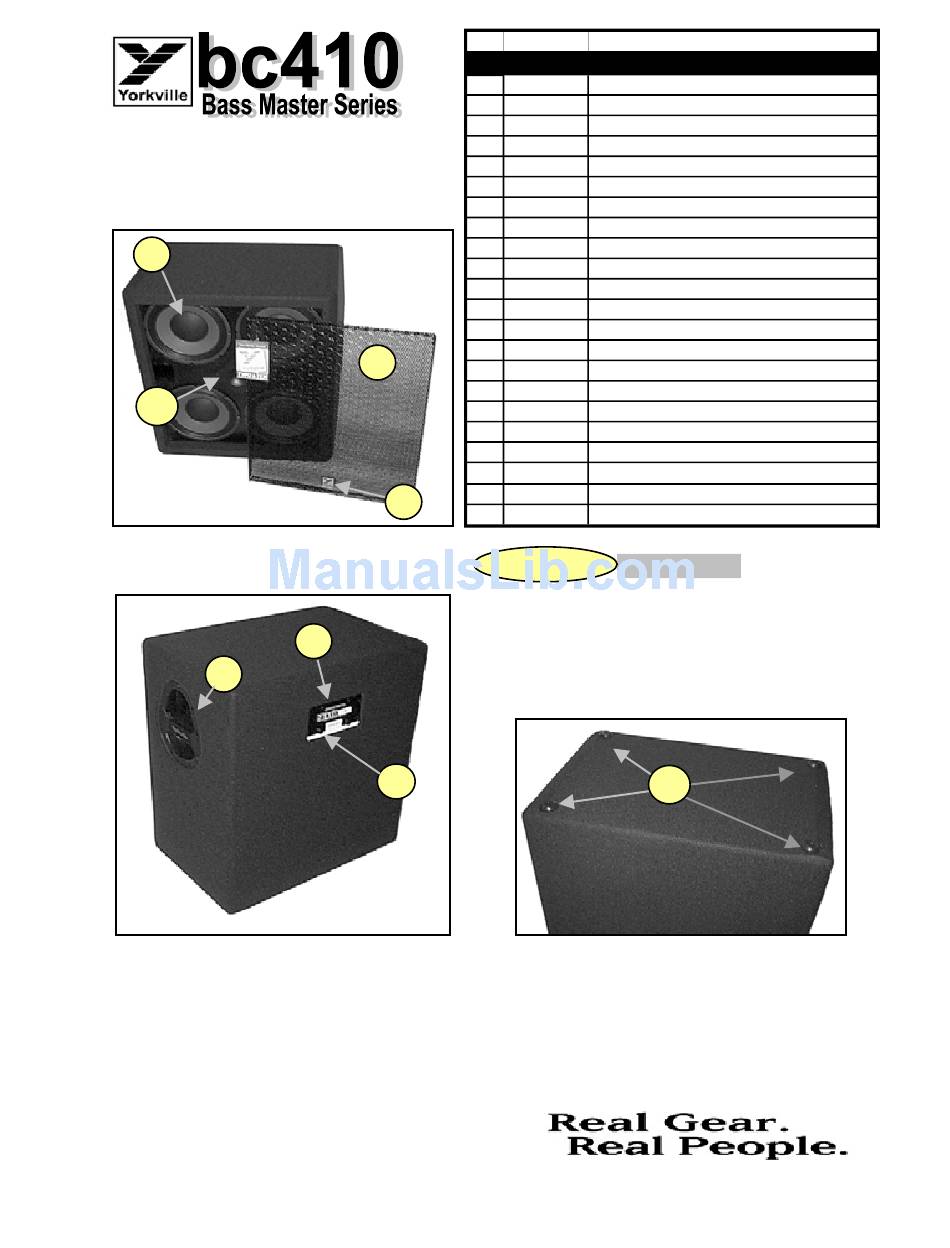

YORKVILLE Bass Master BC410 Manual

1
2
5
*NOTE: Replacement grills & HF Driver Gaskets are 'Special-Order' and are only available while the model is in production.
** Internal HF Driver Gasket, Lightbulb and Lightbulb Socket not shown
Parts-Serv-bc410-1v0.xls
#

Labeled Components

1
2
3
4
5
6
7
8
9
10
11
12
13
14
3
15
16
17
18
19
20
21
4
22
6
7
ftp.yorkville.com
Part# Description
7284 10 INCH 8R 150WPGM SPEAKER
DE-72P 8R 30W 1 INCH DRIVER RCF-N252XN
Z012 BC410 GRILL*
"Y" LOGO BASSMASTER SERIES LARGE DOMED
8243D
8537 TEARDROP HANDLE "YORKVILLE" BLUE
M718 BC410 CROSSOVER PLATE*
3924 1/4 INCH JACK PCB MT VERT
8547 PLASTIC FOOT BLACK
8886 NEOPRENE N252 DRIVER GASKET**
3644 12V 24W SC BAYONNET #1156**
3641 S.C. BAYONNET WIRE SOCKET TINNED**
9/10/11
not shown
8
Speaker Enclosure
