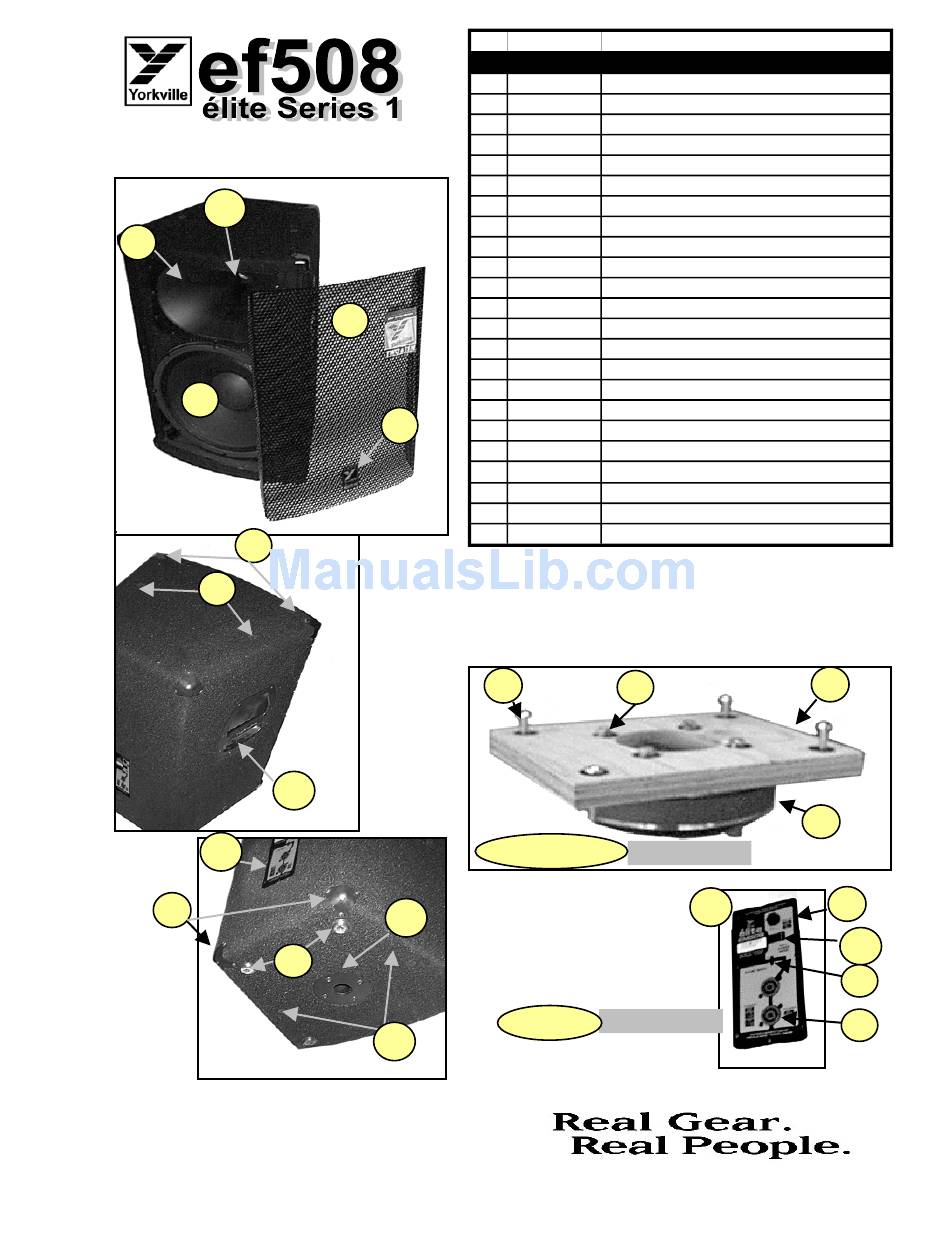

YORKVILLE EF508 - PARTS Manual

Metal Crossover Plate

2
1
3
12
9
7
*NOTE: Replacement grills & HF Driver supports are 'Special-Order' and are only available while the model is in production.
** Internal Lightbulb not shown
Parts-Serv-ef508-series1-1v0.xls
4
5
6
8
11
10
12
ftp.yorkville.com
# Part# Description

Labeled Components

1 H09A HORN 60X40 2 INCH STY 1000HZ CUT
2 DE-72P 8R 120W 1.4 INCH DRVR B&C PLASTIC PH
3 15/138Y8M 15 INCH 8 OHM 500W PGM SPEAKER
4 Z105 EF508 GRILLE*
5 8259D "Y" LOGO ELITE SERIES LARGE DOMED
6 8569 CORNER, 2 LEGS, NO LIP, BLACK OXIDE
7 8562 CORNER, 3 LEGS, BLACK OXIDE
8 8536 CAST HANDLE "YORKVILLE" PULSE B
9 Z219 XOVER PLATE (NO LONGER AVAILABLE)
10 8547 PLASTIC FOOT BLACK
11 8483 ADAPTOR,SPEAKER STAND,METAL,BLA
12
8726 FLYWARE BOLTS
13 3498 1/4" JCK PCB MT HORZ
14 2422 3.00 AMP CIRCUIT BREAKER PC MOUNT
15 3407 4PDT SLID SW PCMT V GOLD CONTACTS
16 6956 SPKON 4C PCB MT HORZ
8709 1/4-20X1.5 PAN PHIL MS ZINC CLEAR
17
18 8739 M6X30 HEX BOLT ZINC CLEAR
N/A HF DRIVER MOUNTING BRACKET
19
20 DE-75KIT BBC 2" DRIVER DIAGHRAM
21
15/138Y8MKIT 15/138Y8M RECONE KIT
22 3652** 24V 55/50W DUPLO-D #R2 P45T BULB
23 3641 SC BAYONET WIRE SOCKET TINNED
17
18
19/20/21
not shown
not shown
22/23
GRY #4
20
2
13
9
14
15
16
Speaker Enclosure
