YORKVILLE Bass Master BM200 Manual

3
4
5
10
*NOTE: Replacement grills are 'Special-Order' and are only available while the model is in production.
Parts-Serv-bm200-1v0.xls

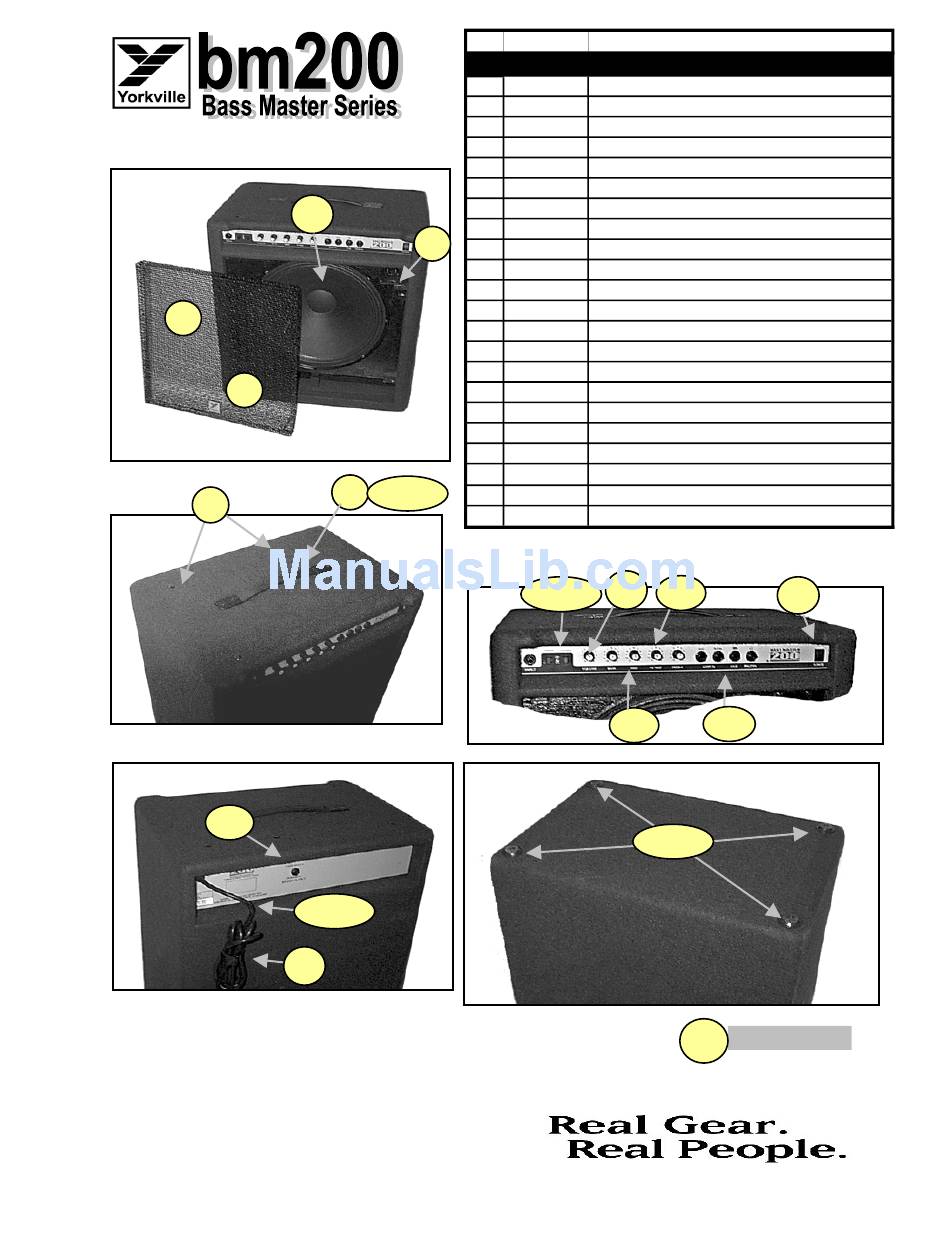

Labeled Components

2
1
6
7/8/9
11/12
13
ftp.yorkville.com
# Part# Description
1 7417 8R 30W TWEETER PIEZO TLC 1
2 7347 15" 4R 200WPGM SPEAKER BASS
3 Z037 BM200 GRILLE*
4 Y LOGO BMASTER SERIES LARGE D
8243D
5 8770 1/4-20 X 1 5/16 TRUSS PH MS JS500
6
8458 10.5" STRAP HANDLE, PLASTIC COV
7 8843 10-32 X 1 1/8 FLAT PH MS JS500
8 8781 #10 X 7/8 FLAT PHIL TYPE A JS500BLK
9 8820 #8 FLAT WASHER JS500
10 3450 ALL GOLD PC MNT JK SKT
11 3481 8' 3/18 SJT AC LINE CORD 250 C
12 3834 HEYCO #1214 STRAIN RELIEF
13 8468 VELCRO STRAP 3/4"X22CM (VELSTRA
14 3421 DPDT PUSH SW PCMT MAKE B4 BREAK
15 8655 BUTTON KNOB BLACK REAN P120-OX
4409 _10K 5C R/A 16MM
16
17 4406 _50K 5B LIN 16MM
18 8693 S ROTARY KNOB GREY
19 3698 SPST ROKR SW QUIK 180" AC PWR BL/BL
20 8547 PLASTIC FOOT BLACK
21 8781 #10 X 7/8 FLAT PHIL TYPE A JS500BLK
22 2407 2.5 AMP SLO-BLO .25X1.25 FUSE (INTERNAL)
16
14/15
18
20/21
P14
17
19
10
22
not shown
Speaker Enclosure
