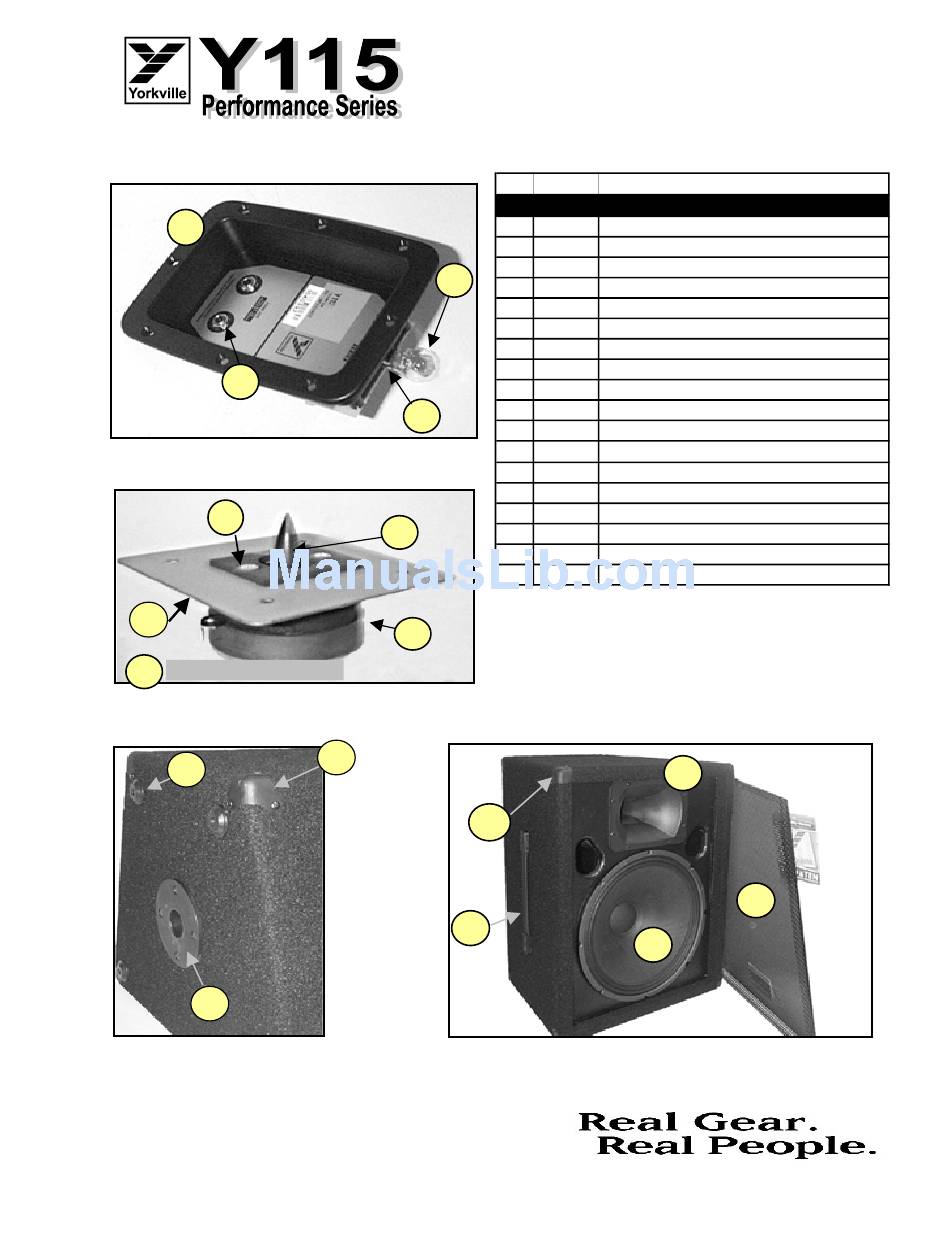

YORKVILLE Performance Y115 Manual

applicable to serial numbers prior to 104xxxx
1
2

Crossover Dish

5
6
9 diaphram not shown

HF Driver shown with mounting plate

10
11

Bottom view of Y115

*NOTE: Replacement grills & HF Driver supports are 'Special-Order' and are only available while the model is in production.
Parts-Serv-y115-1v0.xls

Labeled Components

3
4
7
8
12
13
14

Front view with grille removed

ftp.yorkville.com
# Part# Description
1 8511 BLACK XOVERDISH - PLASTIC
2 3924 1/4" JCK PCB MT VERT 2XTIP HI-CURRENT
3 3647 12V 18W SC BAYONET #1141
4 3641 S.C. BAYONET WIRE SOCKET TINNED
5 8879 M5 X 10 DIN 7985 MS ZINC SCREW
6 M694 GENERIC DRIVER SUPPORT*
7 N252PP N252 REPLACEMENT PHASE PLUG
8 N252XN 8R 30W 1"DRIVER RCF-N252XN
9 M-73 N252 REPLACEMENT DIAPHRAM
10 8547 PLASTIC FOOT BLACK
11 8484 ADAPTOR,SPEAKER STAND,PLASTIC,BLACK
12 8562 CORNER, 3 LEGS, BLACK OXIDE
13 8569 CORNER, 2 LEGS NO LIP BLACK OXIDE
14 8458 10.5" STRAP HANDLE, PLASTIC COVERS
15 H07A HORN 60 X 40 1" STY 2000HZ
16 7311 15" 8R 200WPGM SPEAKER
17 z233 Y115 GRILL*
18 8239 "Y" LOGO "Y" SERIES LARGED DOMED
15
16
BULB
17

Speaker Enclosure
