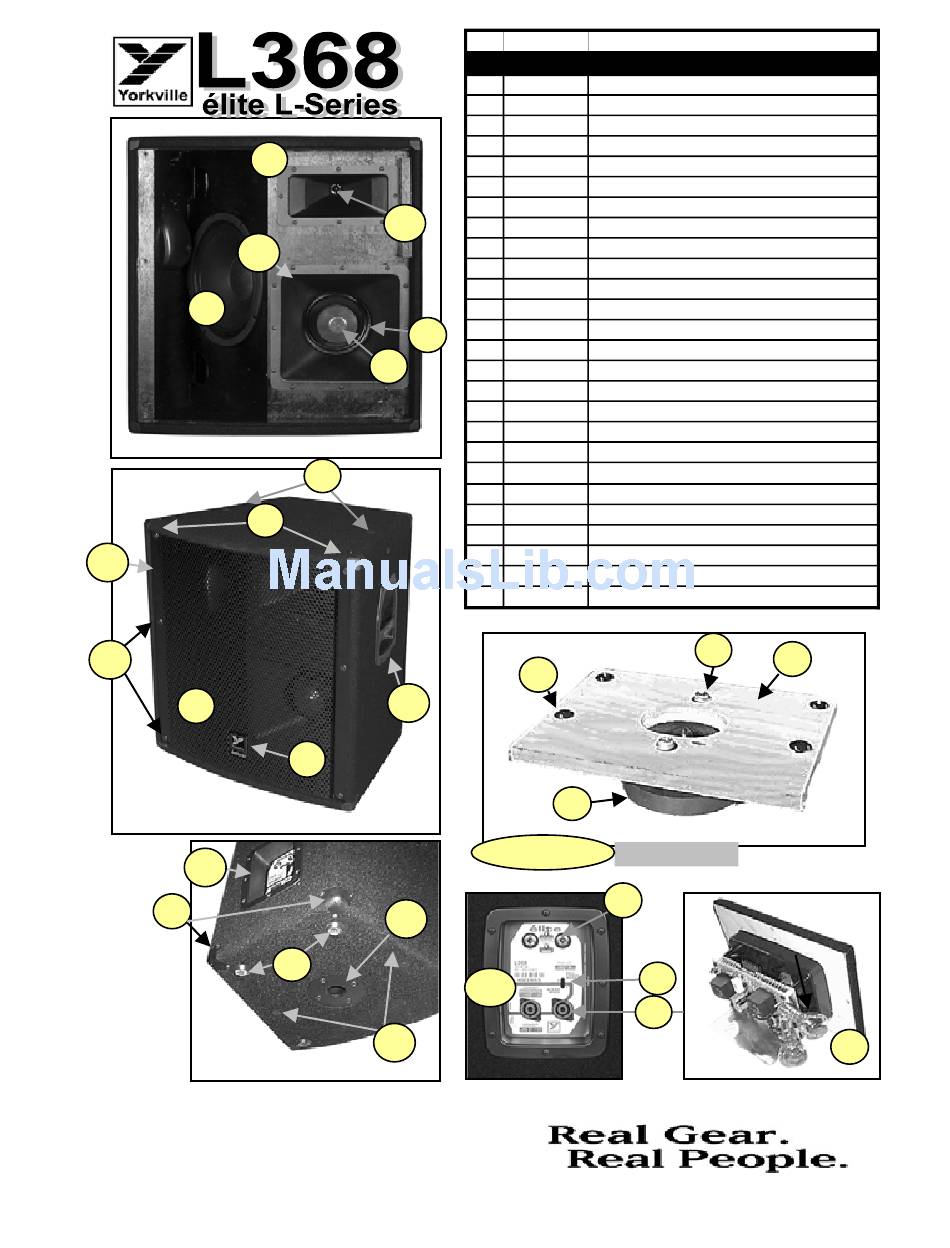

YORKVILLE L368 - PARTS Manual

6
13
14
9
15
8
*NOTE: Replacement grills & HF Driver supports are 'Special-Order' and are only available while the model is in production.
Parts-Serv-L368-1v1.xls
1
2
3
4
5
12
7
11
10
17
16
12
ftp.yorkville.com
# Part# Description
Labeled Components
1 H17 HORN 90X60 1 INCH STY
2 HD120 8R 40W 1 INCH DRVR HD1208R
3 H18 HORN 90X60 SINGLE SPEAKER MID HORN
4 6.5 INCH 75W PGM SPEAKER
7289
5 P11 FOAM PHASE PLUG
6 12HPL64-8 12 INCH 8R 350W PGM NEO SPEAKER
7 8569 CORNER, 2 LEGS, NO LIP BLACK OXIDE
8 8562 CORNER, 3 LEGS, BLACK OXIDE
9
Z381 L368 GRILLE
10 8259D "Y" LOGO ELITE SERIES LARGE DOMED
11 8536 CAST HANDLE "YORKVILLE"
12 8726 FLYWARE BOLTS
13 Z384 L368 GRILLE BAR
14
8906 #14X2 ALLEN FLAT HD WOOD SCREW JS500
15 8514 BLACK BLANK XOVERDISH PLASTIC CNFG5
16 8547 PLASTIC FOOT BLACK
17 8483 ADAPTER, SPEAKER STAND, METAL, BLACK
18 3924 1/4 INCH JACK PCB MT VERT
19 3407 4PDT SLID SW PCMT V GOLD CONTA
20 3628 SPEAKON JACK 4C PCB MT VERT 250TAB GREY
21 8772 1/4-20 X 1 TRUSS PH MS JS500 BLACK
22 8987 M5 X 25 PAN PHIL JS500 BLACK
23 N/A HF DRIVER MOUNTING BRACKET
24 3651 12V 36W #1195 BULB (SC BAYONET)
25 12HP648RKIT LF NEO DRIVER RECONE KIT
26 HD120KIT HF DRIVER DIAGHRAM
21
2
25/26
not shown
18
15
20
22
23
19
Speaker Enclosure
24
