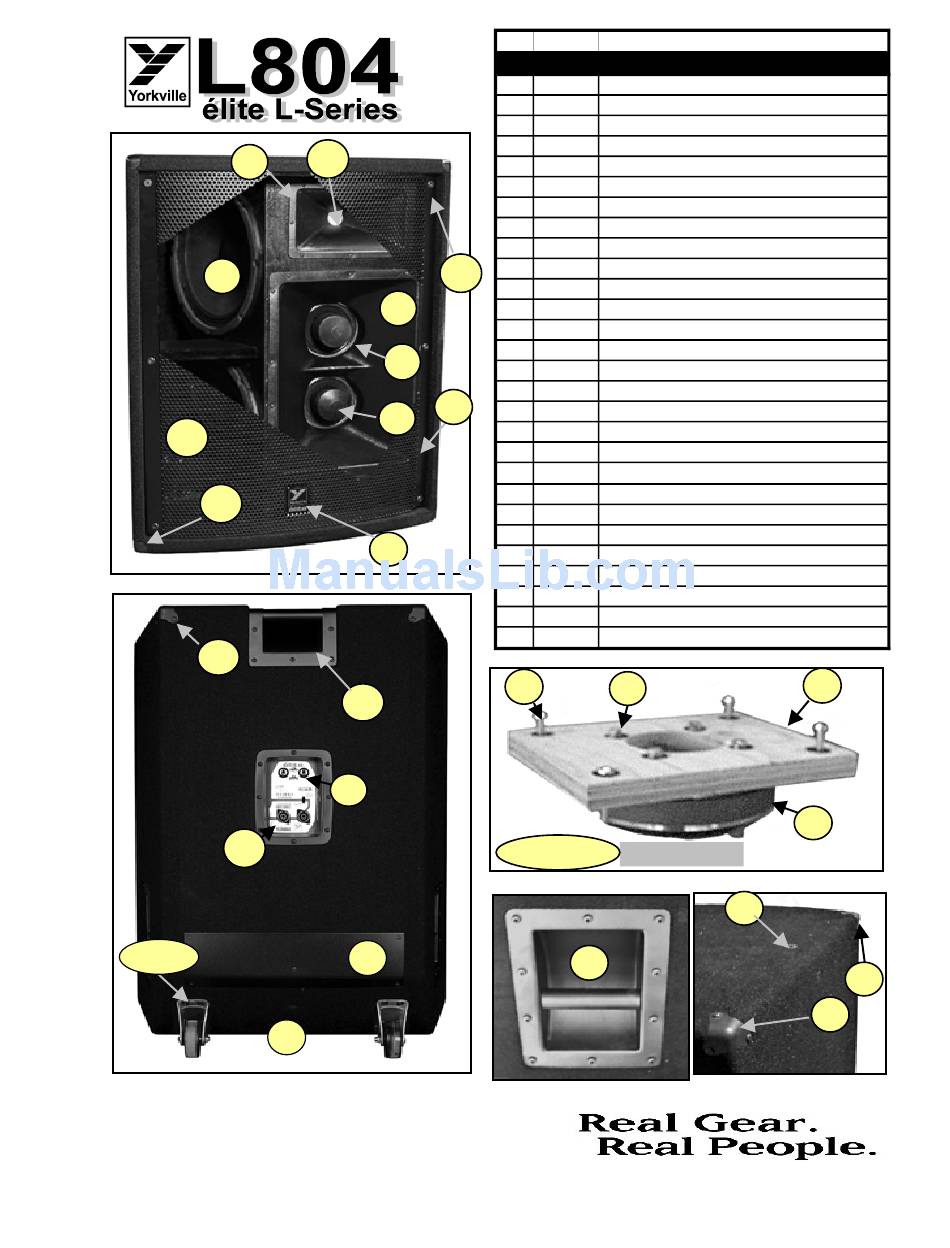

YORKVILLE L804 - PARTS Manual

3
7
11
12
HF Driver shown with mounting plate
15
17/18
*NOTE: Replacement grills & HF Driver supports are 'Special-Order' and are only available while the model is in production.
Parts-Serv-L804-1v0.xls
2
1
4
5
6
10
13
14
16
19
ftp.yorkville.com
# Part# Description
Labeled Components
1 H15 HORN 90X60 1.4" STY
2 DE600 8R 75W 1.4" DRIVER B&C DE600
3 152198R 15" 8R 400W PGM NEO SPEAKER
4
H16 HORN 90X60 DUAL SPKR MID HORN
5 7289 6.5" 8R 75W PGM SPEAKER
6 P11 FOAM PHASE PLUG
7 Z380 L804 GRILLE*
8 8906 #14X2 ALLEN FLAT HD WOOD SCREW JS500
9 Z386 L804 GRILLE BAR"
8
10 8259D "Y" LOGO ELITE SERIES LARGE DOMED
11 8569 CORNER, 2 LEGS, NO LIP, BLACK OXIDE
12 8562 CORNER, 3 LEGS, BLACK OXIDE
13 8551 BAR HANDLE RIGHT ANGLE TOP LOAD
14
3924 1/4" JACK PCB MT VERT
15 3628 SPEAKON JACK 4C PCB MT VERT 250TAB GREY
16 M766 STEEL POWDER PAINTED BLACK KICK PLATE
9
17 8579 #3386 STATIONARY WHEEL
18 8770 1/4-20 X 1-5/16 TRUSS PH MS JS500 BOLT
19 8545 RECESSED RUBBER FEET WITH WASHER
20 8709 1/4-20X1.5 PAN PHIL MS ZINC CLEAR
21
8739 M6X30 HEX BOLT ZINC CLEAR
22 N/A HF DRIVER MOUNTING BRACKET*
23 DE600KIT 8R 75W 1.4" RECONE KIT FOR DE600
24 3651 12V 36W #1195 BULB (SC BAYONET)
25 3641 SC BAYONET WIRE SOCKET TINNED
26 8565 BAR HANDLE ALL METAL
27 8726 3/8-16X1-1/2 GRD5 FLAT SCKT HD PLAIN
28 8514 BLACK BLANK XOVER DISH PLASTIC
20
21
23/24/25
26
not shown
27
Speaker Enclosure
22
2
11
12
