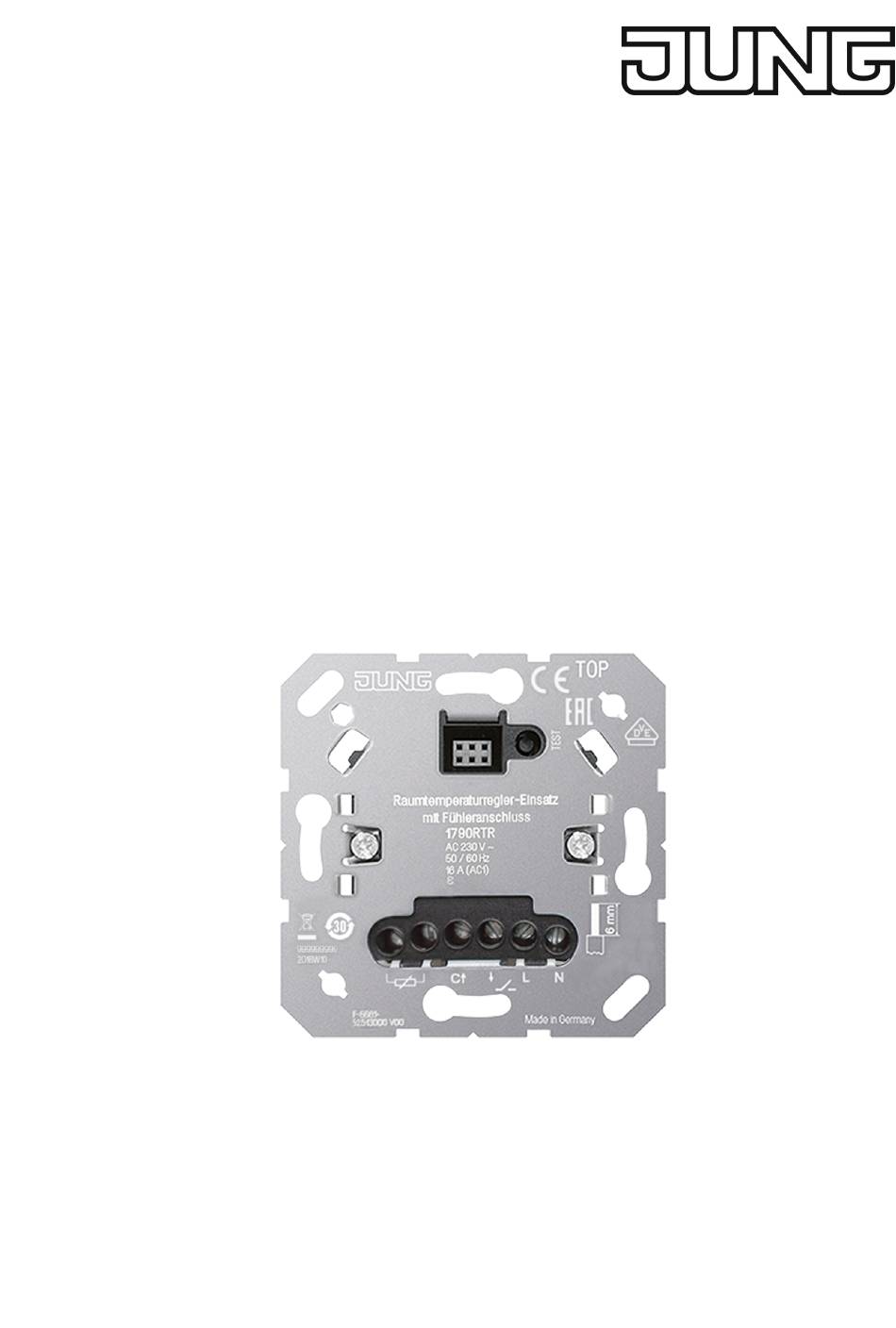

- Page 1 Operating instructions Room thermostat insert Art. no. 1790RTR ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Product image non-binding Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 12.02.2025 82400433 J0082400433 www.jung.de...
-
Page 2: Table Of Contents
Room thermostat insert Table of contents Safety instructions ...................... 3 Intended use ........................ 3 Product characteristics ..................... 3 Information for electrically skilled persons ................ 3 Technical data ........................ 5 Accessories ........................ 6 82400433 2 / 6 12.02.2025 J0082400433... -
Page 3: Safety Instructions
Switching of electric underfloor heating systems and electrothermal valve drives – Operation with room thermostat cover from the systems LB management and JUNG HOME – Operation with KNX RF push-button – Mounting in appliance box with dimensions according to DIN 49073 Product characteristics –... - Page 4 Room thermostat insert Connecting and fitting the device Recommended installation height: 1.50 m. When using the integrated temperature sensor of the cover: Do not mount near sources of interference, such as electric cookers, refrigerators, draughts or direct sunlight. This influences the temperature measurement of the cover. Figure 1: Connection example of the insert Button TEST Cover interface with LED...
-
Page 5: Technical Data
Room thermostat insert The insert works exclusively with the KNX RF push-button and room thermo- stat covers. All other covers are without function. Adapting insert to remote sensor If a remote sensor with a resistance varying from 33 kΩ at 25°C is to be used, an ad- justment must be made to the insert. -
Page 6: Accessories
Room thermostat insert Accessories External temperature sensor Art. no. FFNTC Thermal valve drive 230 V Art. no. TSA230NCWW ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82400433 6 / 6 12.02.2025...
