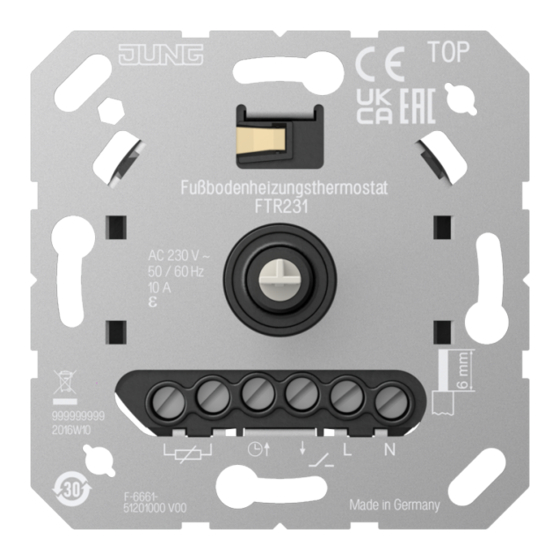

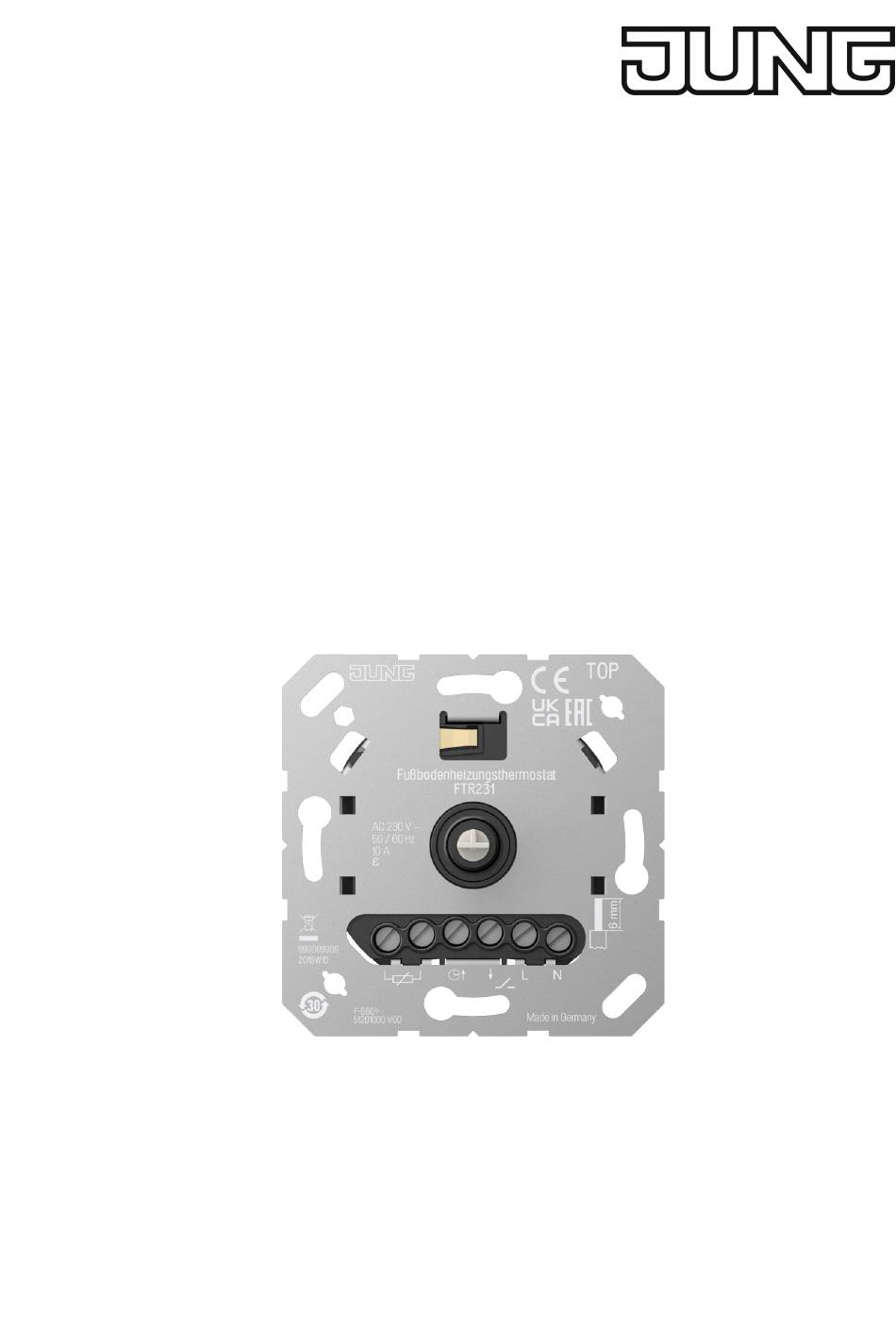

- Page 1 Operating instructions Floor thermostat Art. no. FTR231 ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 16.09.2022 82404903 J0082404903 www.jung.de...
-
Page 2: Table Of Contents
Floor thermostat Table of Contents Safety instructions ...................... 3 Device components...................... 3 Intended use ........................ 3 Product characteristics ...................... 4 Functional description ....................... 4 Operation .......................... 4 Information for electrically skilled persons ................ 5 Commissioning ...................... 7 Technical data ........................ 8 Warranty.......................... 9 82404903 2 / 9 16.09.2022 J0082404903... -
Page 3: Safety Instructions
Floor thermostat Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Danger of electric shock. Always disconnect before carrying out work on the device or load. -
Page 4: Product Characteristics
Floor thermostat Product characteristics – Manually setting a comfort temperature for the floor – Manually switching off the temperature control – Input terminal for activation of reduction temperature (ECO) via central clock – External temperature sensor (remote sensor) – Frost protection function –... -
Page 5: Information For Electrically Skilled Persons
Floor thermostat Indication of the current operating mode ￭ Press the control knob briefly. The LED lights up for 10 seconds in the colour of the current operating mode. Orange = frost protection, red = heating mode. Switching off the temperature control ￭... - Page 6 Floor thermostat DANGER! Mortal danger of electric shock. Disconnect the device. Cover up live parts. Connecting and fitting the device Recommended installation height: 1.50 m. Image 2: Connection example of the insert Image 3: Clampable conductor cross-section External temperature sensor (remote sensor) Switching contact of central clock Electric underfloor heating ￭...
-
Page 7: Commissioning
Floor thermostat ￭ Fit device in appliance box; terminals must be at the bottom. ￭ Fit the frame, central plate and control knob. ￭ Switch on mains voltage. Commissioning Setting control behaviour Factory setting: pulse width modulated control (PWM) This setting can be used with most heating systems without adaptation. Changing the settings ￭... -
Page 8: Technical Data
Floor thermostat Image 4: Setting the temperature limit (before/after) ￭ Pull the control knob off the central plate so that the adjustment rings are vis- ible Bild. Pulling off is done by hand or with a suitable tool, e.g. vacuum lifting tool or key cap puller. -
Page 9: Warranty
4 m (can be extended to 50 m) Degree of protection IP 67 Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
Need help?
Do you have a question about the FTR231 and is the answer not in the manual?
Questions and answers
Можно узнать куда подключить теплый пол синий и красный провод
The connection details for the Jung FTR231 underfloor heating thermostat are provided in the manual. You should connect the insert according to the connection diagram (refer to figure 2 in the manual). The blue and red wires should be connected based on their function:
- The blue wire (typically neutral) should be connected to the neutral terminal.
- The red wire (typically live) should be connected to the live terminal.
Ensure that you observe the recommended conductor cross-sections (see figure 3 in the manual) and follow all safety precautions, including disconnecting power before installation.
