Jung RTR230 Quick Start Manual

Room thermostat (1-way NC contact) 230 V
Room thermostat (1-way NC contact) 230 V
Art. no.: RTR230
Operating instructions
1

Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
This manual is an integral part of the product, and must remain with the end customer.
2

Device components

(1) Room temperature controller insert
(2) Frame
(3) Central plate
(4) Control knob
(5) Internal temperature sensor
(6) Adjustment rings temperature limit
During renovation work, the temperature sensor (5) must not become dirty or be painted over.
3

Intended use

– Electronic room temperature controller for controlling electrothermal valve drives for
230 V~
– Control of the room temperature in closed rooms
– Mounting in appliance box with dimensions according to DIN 49073
4

Product characteristics

– Manually setting a comfort temperature
– Internal temperature sensor
– Silent switching
– Controller output working method: pulse width modulation (PWM)
– Operates with valve type "deenergised closed"
82404803
J0082404803

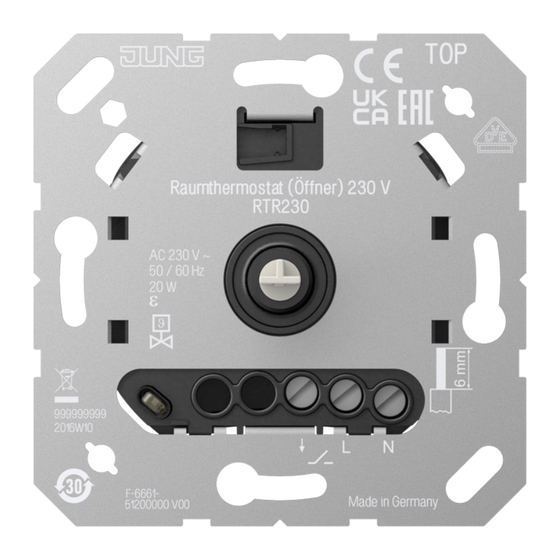

Figure 1: Device components
1 / 4
05.05.2022
