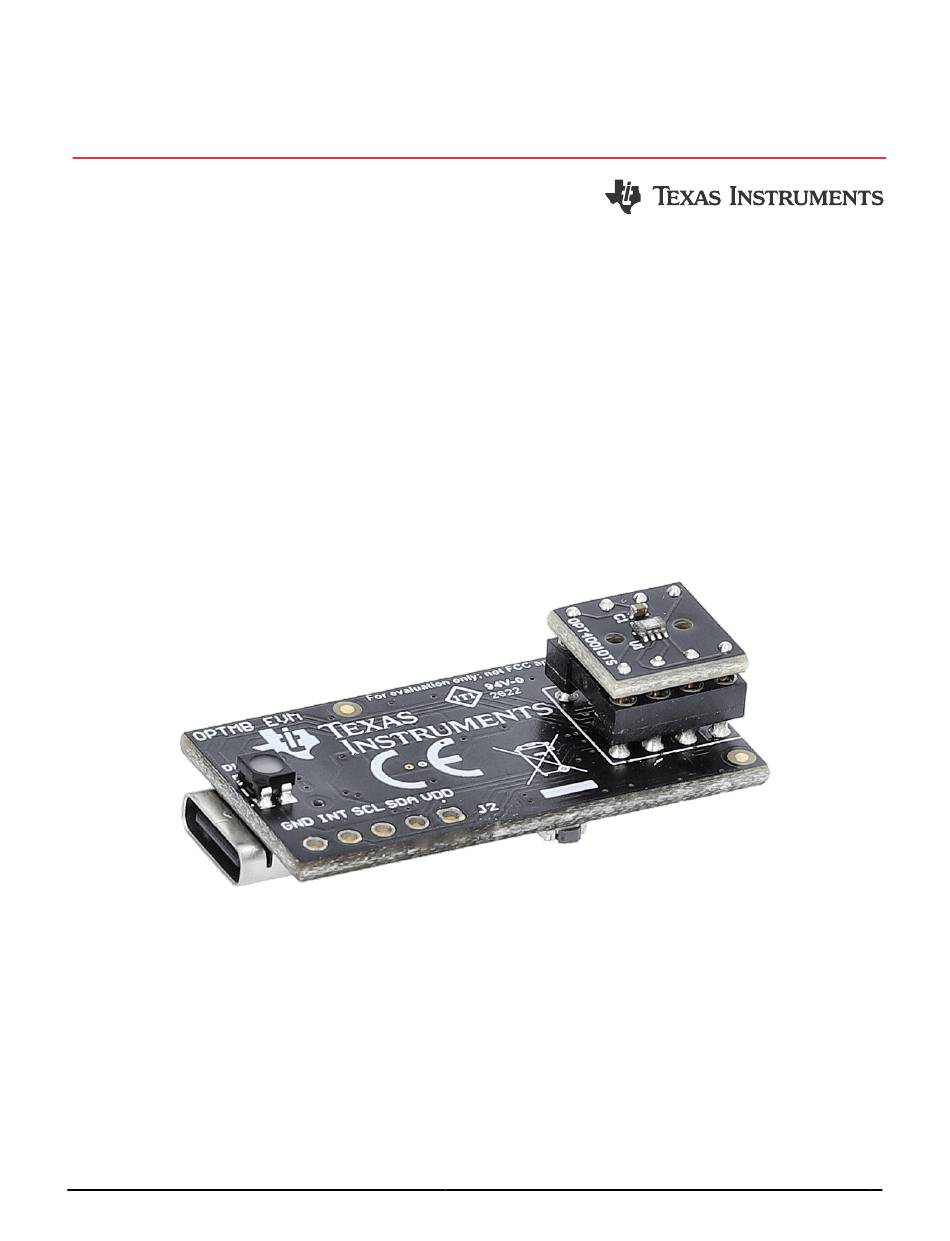

EVM User's Guide: OPT3005DTSEVM OPT3005EVM
OPT4001DTSEVM OPT4048DTSEVM
Light Sensor Evaluation Modules
Description

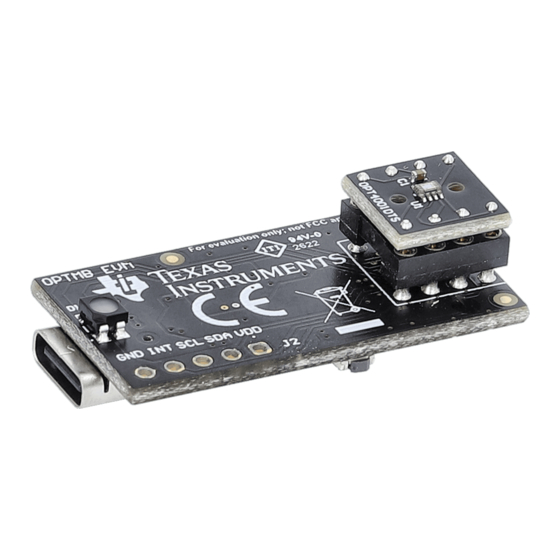

The OPTx0xxDTSEVM and OPTx00xDNPQ1EVM
evaluation modules (EVM) are a platform for
evaluating the performance of the OPT light sensors.
Texas Instruments has multiple families of light sensor
parts. Each of these parts is a light sensor integrated
circuit (IC) with a digital output and works with the
2
I
C protocol; making the device an excellent choice
for many applications. The OPTEVM is a platform
for evaluating the performance of the multiple light
sensor IC under various conditions. The OPTEVM
consists of two PCBs. The first PCB is the OPTMB
SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024
Submit Document Feedback
EVM board that communicates with the computer,
provides power, and sends and receives appropriate
digital signals. The second PCB is the OPTCB
coupon board, which contains the light sensor IC for
evaluation and support circuitry.
Features
Small-form factor
USB hardware interface
Intuitive GUI software
100-mil-spaced test points and removable coupon
with IC pin access
OPT4001DTSEVM
Copyright © 2024 Texas Instruments Incorporated
Description
Light Sensor Evaluation Modules
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the OPT3005EVM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texas Instruments OPT3005EVM

  • Page 1 IC for evaluating the performance of the OPT light sensors. evaluation and support circuitry. Texas Instruments has multiple families of light sensor parts. Each of these parts is a light sensor integrated Features circuit (IC) with a digital output and works with the •...
  • Page 2 (Installed on OPTMBEVM) OPTMBEVM board USB type A to type C cable Figure 1-1. Hardware Included with OPTEVM Kit Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 3: Device Information

    Dual channel (ALS + IR) Automotive High-Speed, High-Precision Digital Ambient Light Sensor (ALS) OPT4041DTSEVM Dual channel (ALS + Wide band) High-Speed, High-Precision Digital Ambient Light Sensor (ALS) SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 4 OPTEVM, including the use of a grounded wrist strap at an approved ESD workstation. Figure 2-1. OPTEVM Hardware Setup Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5: Software Installation

    Figure 3-2. OPTEVM Software-Installation Launch Follow the prompts as shown in Figure 3-3 Figure 3-8 to install the OPTEVM software. SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 Software www.ti.com Figure 3-3. OPTEVM Software-Installation Prompts Figure 3-4. OPTEVM Software-Installation Prompts Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7 Software Figure 3-5. OPTEVM Software-Installation Prompts Figure 3-6. OPTEVM Software-Installation Prompts SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 Software www.ti.com Figure 3-7. OPTEVM Software-Installation Prompts Figure 3-8. OPTEVM Software-Installation Prompts The OPTEVM GUI software is now installed. Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 Connect the EVM via USB to the PC. If Windows shows a notification that a driver is not found for the device connected, then see the instructions to manually install drivers in Section 5.2.1 before proceeding. SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 Details on additional variants are covered in the following section though the software operation is the same for each variant. Figure 3-11. OPTEVM Main Operation Screen Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 PC and the GUI Start Capture button has not been clicked. Figure 3-12. Hardware Error Message SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 Lux data appears above the lux plot as shown. The plot also starts to populate with the device lux readings. Figure 3-13. GUI Capture Running (single channel) Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 If capture is running this data updates in real-time along with the data in the Live column. 3.1.6 Controls SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 3.1.6.3.3 Oneshot Time (μs) The oneshot time slider sets the timer duration while using oneshot (AGC) and oneshot mode. Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 The CIE XY window shows the CIE 1931 color space in both XY and UV in graph form. The black dot represents the color sensed by the OPT4048 as shown in Figure 3-15. Figure 3-15. OPT4048DTSEVM CIE XY Window SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 3-17, shows the live register codes of each channel around the sample count. Figure 3-17. OPT4048DTSEVM Channel Live Window 3.1.7.2 OPT4060DTSEVM The OPT4060DTSEVM GUI launches with two window options. Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 3-19, shows the live lux value sensed by the OPT4060 across the sample count. Figure 3-19. OPT4060DTSEVM Lux Live Window SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18 Launch the registers view by double-clicking on the Registers View button under the Device List box on the right side of the screen. Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 To do this, select the launchGUI.py script and click Run>Buffer or press F5. SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20 Registers x08 and x09 allow low and high limits, respectively, to be set. These registers are used in certain interrupt reporting modes. The Design_ID is contained in register 0x11. Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 For other OPT300x/4xxx device variants, the pinout and schematic are the same except for the change to the IC in the BOM. Figure 4-1. OPT3004 Coupon Board Schematic SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 22 PCB layers, respectively. Figure 4-2. PCB Top Layer Figure 4-3. PCB Bottom Layer Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 23 Hardware Design Files Figure 4-4. PCB Top-Layer Assembly Drawing Figure 4-5. PCB Bottom-Layer Assembly Drawing SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 24: Bill Of Materials (Bom)

    Alternatively, a header can be populated at J2 for easier access. Figure 4-6. OPTMB EVM Board Schematic Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 25 PCB layers, respectively. Figure 4-7. PCB Top Layer Figure 4-8. PCB Bottom Layer SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 26 Hardware Design Files www.ti.com Figure 4-9. PCB Top-Layer Assembly Drawing Figure 4-10. PCB Bottom-Layer Assembly Drawing Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 27: Bill Of Materials

    Header, 2.54mm, 5x1, Gold, TH 61300511121 Wurth Elektronik RES, 0, 5%, .05 W, AEC-Q200 Grade 0, 0201 ERJ-1GN0R00C Panasonic SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 28: Additional Information

    7 With Drivers not Installed 1. Open the device manager. 2. Right click on USB Serial Device and select Properties. Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 29 Additional Information 3. Click the Update Driver button. 4. Click Browse my computer for driver software SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 30 5. Click Let me pick from a list of device drivers on my computer. 6. Select Show All Devices and click the Next button. Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 31 Additional Information 7. Click the Have Disk button. 8. Click the Browse button. 9. Navigate to “C:\Users\<username>\Documents\Texas Instruments\Latte\projects\OPT3004\drivers” and choose MSP430_CDC. Click the Open button. SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback...
  • Page 32 10. Click the OK button 11. Select the first USB serial device and click the Next button. 12. Click the Yes button. Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 33 2 and step 11. In step 2, make sure to right-click the second USB Serial Device. Likewise, on step 11 make sure to select the second USB Serial Device when installing the driver as the following figure shows. SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Light Sensor Evaluation Modules Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 34 16. The two USB Serial Device devices appear in the device manager under Ports (COM & LPT) as the following image shows. Light Sensor Evaluation Modules SBOU293E – NOVEMBER 2022 – REVISED AUGUST 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 35: Related Documentation From Texas Instruments

    The latest revision can be found by clicking the link and is also available from the TI web site, the Texas Instruments' Literature Response Center at (800) 477-8924, and the Product Information Center at (972) 644-5580. When ordering, identify the document by both title and literature number.
