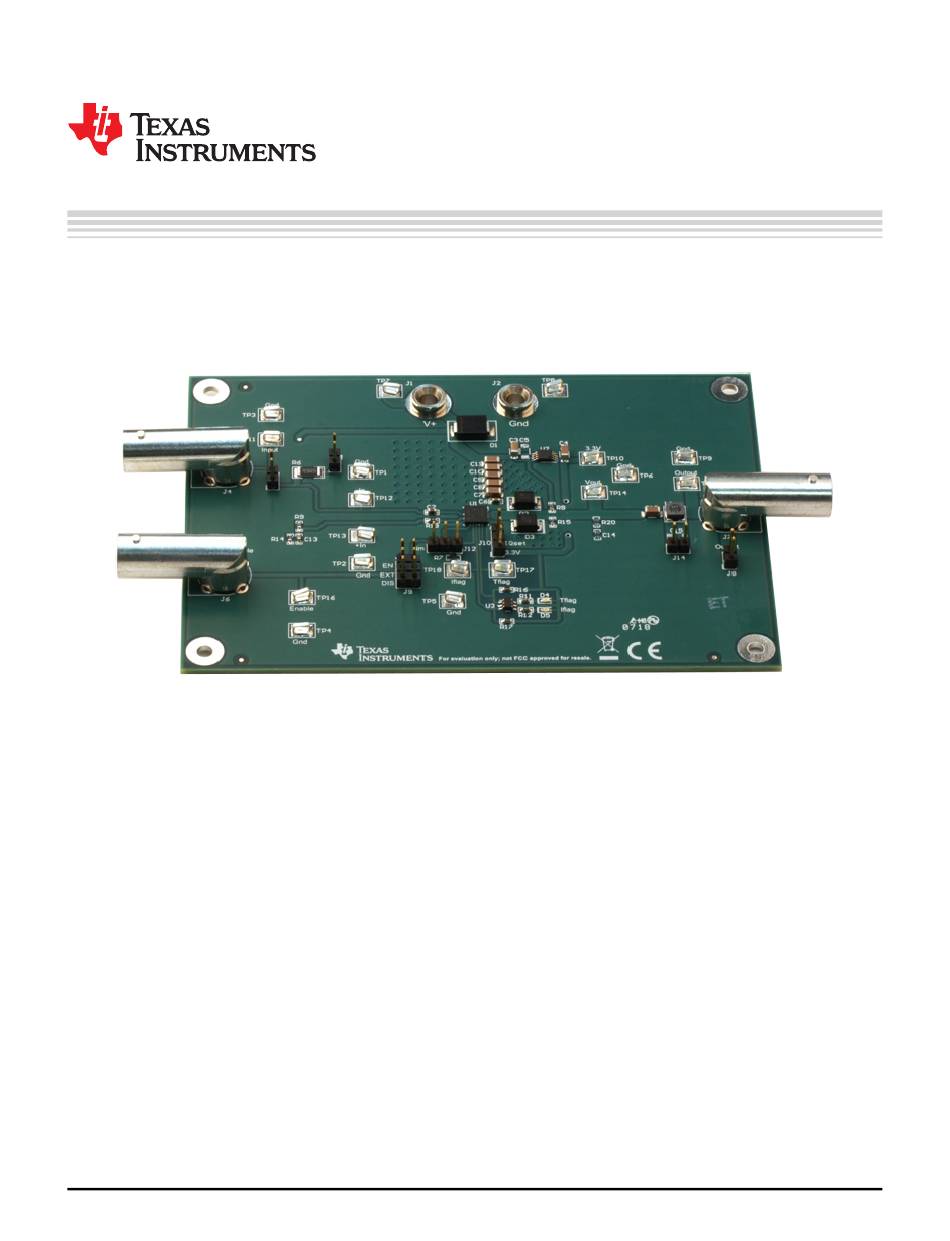

This user's guide describes the characteristics, operation and use of the OPA521 evaluation module
(EVM). It discusses how to set up and configure the board hardware, and describes various applications
using the evaluation module. Throughout this document the terms evaluation board, evaluation module,
and EVM are synonymous with the OPA521EVM. This document also includes an electrical schematic,
printed
circuit
SBOU208 – June 2018
Submit Documentation Feedback
board
(PCB)
layout
Copyright © 2018, Texas Instruments Incorporated
OPA521EVM User's Guide
drawing,
and
a
parts
User's Guide
SBOU208 – June 2018
list
for
the
EVM.
OPA521EVM User's Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPA521EVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments OPA521EVM

  • Page 1 (EVM). It discusses how to set up and configure the board hardware, and describes various applications using the evaluation module. Throughout this document the terms evaluation board, evaluation module, and EVM are synonymous with the OPA521EVM. This document also includes an electrical schematic, printed...
  • Page 2: Table Of Contents

    ..................OPA521EVM Jumper Description ......................LED Light Indicators ..................... OPA521 EVM Bill of Materials Trademarks All trademarks are the property of their respective owners. OPA521EVM User's Guide SBOU208 – June 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 3: Overview

    Therefore, it is best to avoid any contact with the heat sink when the circuit is in use, or cooling down after use. SBOU208 – June 2018 OPA521EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 4 OPA521. The OPA521EVM has a TVS diode (SMCJ16A-TP) populated in socketD1. When choosing a suitable TVS or zener-diode, several points must be considered – such as the power supply voltage levels during normal operation and the expected electrical overstress (EOS).
  • Page 5: Led Light Indicators

    A brief description of the basic jumper functions is shown in Table 1. More information can be found in Section Table 1. OPA521EVM Jumper Description JUMPER DESCRIPTION JMP1 (J5) Connects BNC input connector (J4) to AC coupled inverting input (-IN) of the OPA521 JMP2 (J3) 50-Ω...
  • Page 6: Schematic And Layout

    Figure 2 shows the main circuitry of the EVM amplifier. The complete schematic for the EVM including the digital, enable/shutdown and LED circuits can be found in . Figure 2. OPA521EVM Partial Schematic OPA521EVM User's Guide SBOU208 – June 2018 Submit Documentation Feedback Copyright ©...
  • Page 7: Getting Started

    EVM. Power Supply The OPA521EVM is configured only use a single 7-V to 24-V supply, power is provided to the EVM through 2 banana jacks: AVDD and GND. The power supply must provide the total anticipated current required in the application.
  • Page 8: Appendix

    1.3. Appendix Figure 3 shows the complete schematics of the OPA521 EVM. The bill of materials is shown in Table Figure 3. OPA521EVM Schematic OPA521EVM User's Guide SBOU208 – June 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 9: Opa521 Evm Bill Of Materials

    0.200 inch W x 0.200" H - 10,000 per roll RES, 49.9, 1%, 0.75 W, AEC- 49.9 CRCW201049R9FKEF Vishay-Dale 2010 Q200 Grade 0, 2010 SBOU208 – June 2018 OPA521EVM User's Guide Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
  • Page 10 MSOP (DGN), -40 to 125 degC, Green (RoHS & no Sb/Br) Dual Buffer/Driver Texas with Open-Drain SN74LVC2G07DBVR DBV0006A Instruments Output, DBV0006A, LARGE T&R OPA521EVM User's Guide SBOU208 – June 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
