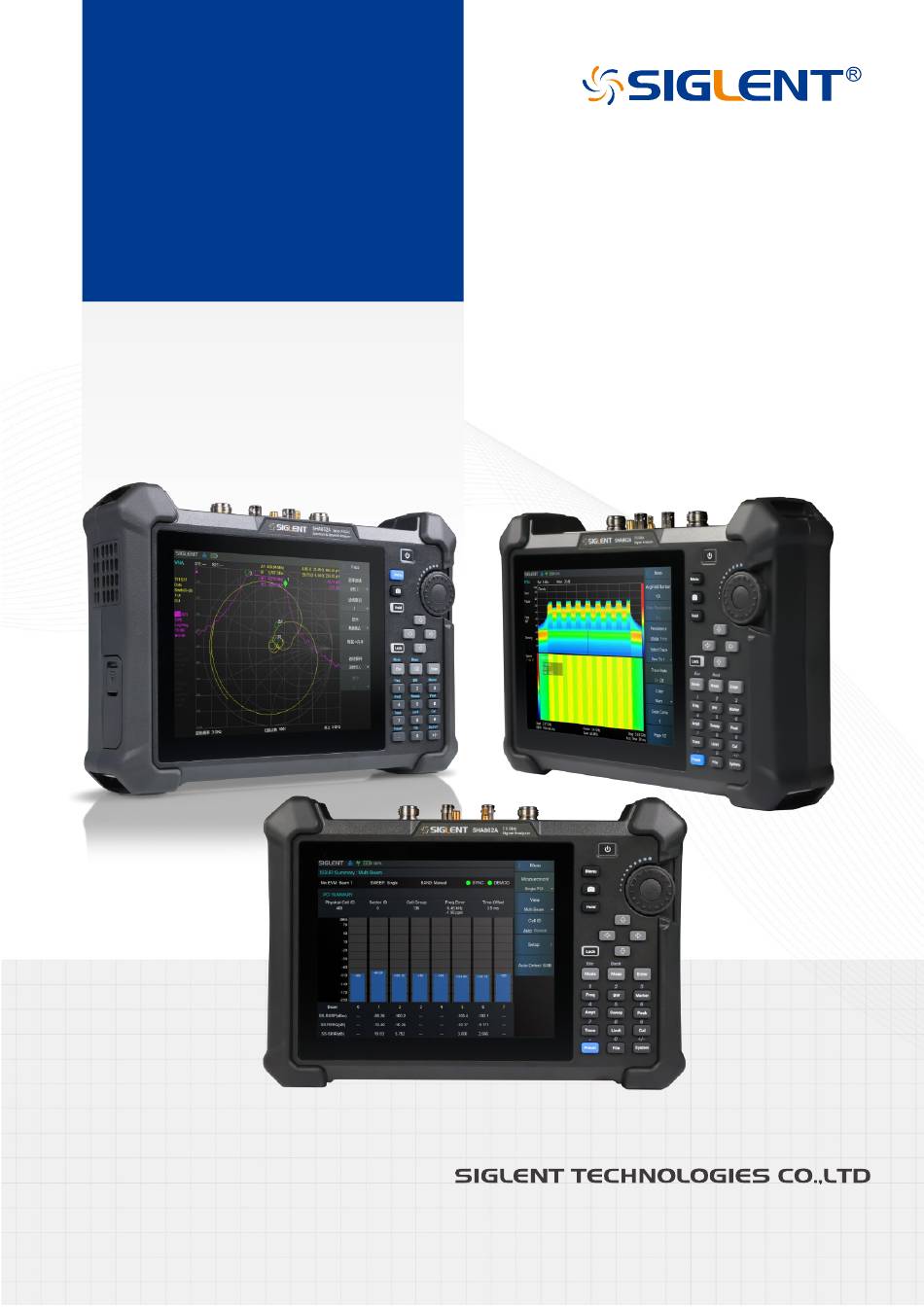

Page 1 SHA850A Spectrum & Network Analyzer SHA860A Signal Analyzer Quick Start EN01A...
Page 3: Copyright Information
 SIGLENT products are protected by patent law worldwide.  SIGLENT reserves the right to modify or change parts of or all the specifications or pricing policies at company’s sole decision.  Information in this publication replaces all previous corresponding material.
Page 4: Table Of Contents
Contents Copyright Information ......................1 General Safety Summary ...................... 3 Safety Terms and Symbols ....................3 Allgemeine Sicherheitsübersicht.................... 4 Sicherheitsbegriffe und Symbole ................... 4 General Care and Cleaning ....................5 General Inspection ........................ 5 Preparing for Use ........................6 Panel Introduction ........................8 User Interface ........................
Page 5: General Safety Summary
General Safety Summary Carefully read the following safety precautions to avoid any personal injury or damage to the instrument and any products connected to it. Only the power cord and adaptor specified for the analyzer and authorized by local country should be used Look Over All Terminals’...
Page 6: Allgemeine Sicherheitsübersicht
Allgemeine Sicherheitsübersicht Lesen Sie die folgenden Sicherheitshinweise sorgfältig durch, um Verletzungen oder Schäden am Gerät und an den daran angeschlossenen Produkten zu vermeiden. Verwenden Sie nur das für das Gerät vorgesehene und im jeweiligen Land zugelassene Netzkabel. Schließen Sie das Messkabel richtig an Überprüfen Sie die Nennwerte aller Klemmen Verwenden Sie einen ordnungsgemäßen Überspannungsschutz Schutz vor Elektrostatik...
Page 7: General Care And Cleaning
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT will not provide free maintenance or replacement if the instrument has been damaged in shipment. ...
Page 8: Preparing For Use
Preparing for Use Appearance and Dimension Unit：mm Front and lateral View The included tilting stand is available for desktop operation. The tilting bracket provides a backward tilt for improved stability. To deploy the tilt bracket, pull the bottom of the tilt bracket away from the back of the instrument.
Page 9 ◆ Battery factory installed WARNING This instrument can only use Siglent approved batteries, adapters and chargers. When using an onboard DC adapter, always ensure that the power supply is rated at least 75 W @ 15 VDC and that there is no dust or debris on the socket. If the adapter plug becomes hot during operation, discontinue use immediately.
Page 10: Panel Introduction
Panel Introduction Front Panel 2 3 4 The Front Panel Front Panel Description Name Description 8.4 inch multi-touch screen, resolution 800*600 Stand by status: Orange; Power on status: White; Power Button Short press: Shutting down with current state saved; Long press: Shutting down without current state saved. Function control and parameter input of the analyzer;...
Page 11 Shortcut Keys Description Name Description The menu selection window pops up on the screen, and you can use the touch screen control to directly enter a function menu. Shortcut screenshot button to save the current screen display as a picture. Save parameters, such as path, reverse color, and screenshot area, to be set in System >...
Page 12 ◆ When the operation interface is in value input mode, the multiplex key will be identified as the white silk screen digital identifier inside the key. You can use Esc to switch from value input mode to menu selection mode. Function Keys Description Name Description...
Page 13 Rear Panel 8 9 10 11 12 Rear Panel Name Description RF In/ RF signal input, or used as VNA port 2 receiver input, 50Ω N female connector. Port 2 Trigger input, a BNC female connector. When the analyzer uses an external trigger mode, the connector receives a Trig In rising or falling edge of an external trigger signal that is used to establish event synchronization.
Page 14 Name Description The offset voltage output port is a female SMB connector. Bias Out Used to provide bias voltage for external signal amplifiers, such as tower amplifiers. The main USB port, Type C. USB Device The analyzer can be used as a slave device and connected to a PC via USB cable.
Page 15: User Interface
User Interface of spectrum analyzer mode Spectrum Analyzer Mode User Interface Name Description SIGLENT SIGLENT logo Mode/ Indicate the current working mode and measurement function of the Measure analyzer, such as Spectrum Analyzer, Cable and Antenna Test, etc. Hardware status bar Indicates the status of hardware, interfaces, etc.
Page 16 Description of common icons in the hardware status bar of the user interface: Name Description Power adapter plug-in indication. The battery is green, indicating normal discharge working status. The battery is red, indicating that the remaining power is low and needs to be charged as soon as possible.
Page 17 Touch screen and mouse operation The analyzer provides a 8.4 inch multi-touch screen and supports various gesture operations including: ◆ Slide the waveform left and right or up and down in the measurement result area to change the X-axis center coordinate or Y-axis reference coordinate Perform two-points scaling in the waveform area to change the X-axis span ◆...
Page 18: Firmware Operation
Follow this procedure to update the instrument firmware: Method 1: Update from USB memory. Download the firmware package from official SIGLENT website. Extract the .ADS file into the root directory of an USB memory. Plug the USB memory into the USB Host connector. Press System > “Service” > “Update”, find the .ADS file in USB memory.
Page 19: Remote Control
Service and Support SIGLENT warrants that the products that it manufactures and sells will be free from defects in materials and workmanship for a period of three years (accessories for a period of one year) from the date of shipment from an authorized Siglent distributor.
Page 20: Troubleshooting
Before calling SIGLENT, or returning an analyzer for service, perform the quick checks listed below. These checks may eliminate the problem. If the problem remains still, please contact SIGLENT and provide your device information in the back of the analyzer.
Page 21 ◆ Check if the AMPTD -> “Correction” is ON in SA or VNA mode. (4) Calibrate the instrument regularly to reduce or avoid errors that might occur over time. If you need a specific calibration after the stated calibration period, contact SIGLENT or get paid service from authorized measurement agencies.
Page 22 User system message Message on screen AUTO_FAIL (21) Auto tune process failed EXT_REF_PLUG_IN (22) EXT ref plug in EXT_REF_PLUG_OUT (23) EXT ref plug out REF_PLL_UNLOCK (24) Ref pll unlock SIG_NOT_STB (25) Signal is not stable enough to track QP_RBW_OOR (26) RBW out of range when do quasi peak scan LAN_PLUG_IN (150) Ethernet cable plug in...
Page 23: More Product Information
More Product Information For more information, refer to the following manuals by logging in to the official website of SIGLENT (www.siglent.com) to download them. Data Sheet: Provides the main features and technical specifications. User Manual: Introduces the detailed description of the instrument.
Page 24 Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China Tel: + 86 755 3688 7876 Fax: + 86 755 3359 1582 Email: sales@siglent.com Website: int.siglent.com North America: SIGLENT Technologies America, Inc...
