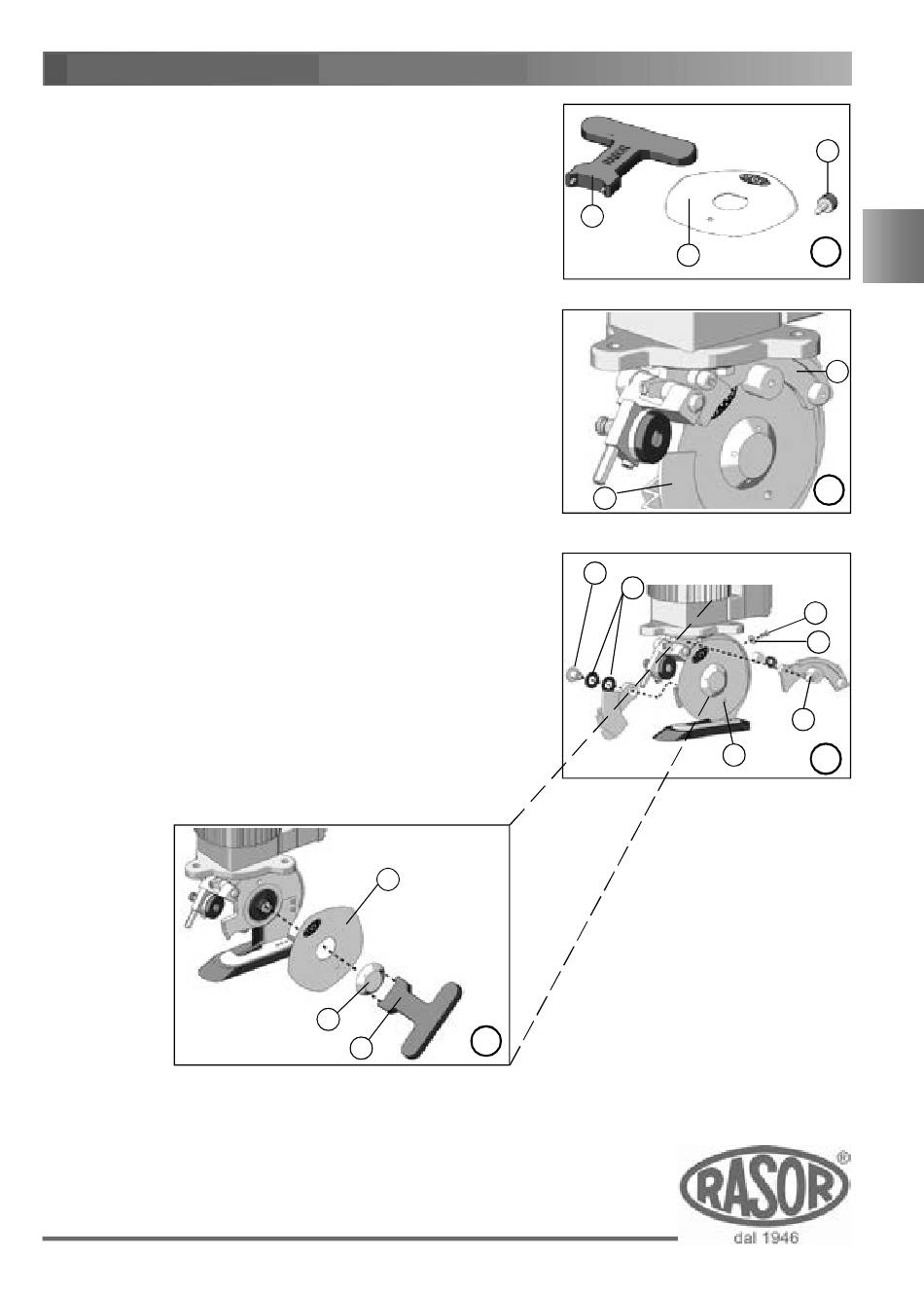

14. BLADE REPLACEMENT

If the blade is no more able to cut (even after repeating the
sharpening operation several times) it is necessary to replace
it. To carry out this operation, use butterfly wrench "1" and
drift "3" locking the blade (shown in picture 10).
To replace the blade, proceed as follows:
1) Use some protective gloves in compliance with
Italian Legislative Decree 81/08;
2) Remove the fixed rear safety protection "A" (see
picture 11) by unscrewing the cross-slotted
screw "C" and the cross-slotted screw "D" by
means of the proper screwdriver (not supplied
by the manufacturer) and by extracting washer
"E" as shown in picture 12.
Remove the mobile front safety protection "B" (see
picture 11) by unscrewing pin "F" and removing
washers "G" as shown in picture 12.
3) Insert drift "3" (see picture 10) into hole "H", so as to
lock the blade (the hole on the blade must correspond
to the one on the structure).
4) Use butterfly wrench "1" to unscrew nut "L" and
remove blade "M" (see picture 13).
5) Replace the worn blade with the new one "2", being
careful to center the blade on the gear, in the correct
position; we remind you to assemble it so that the side
with the writing Rasor can be seen by the operator.
6) Assemble all the components again and carry out the
sharpening.
M
L
13
1
1
2
B
F
G
H
3
EN
10
27
A
11
D
E
C
12
