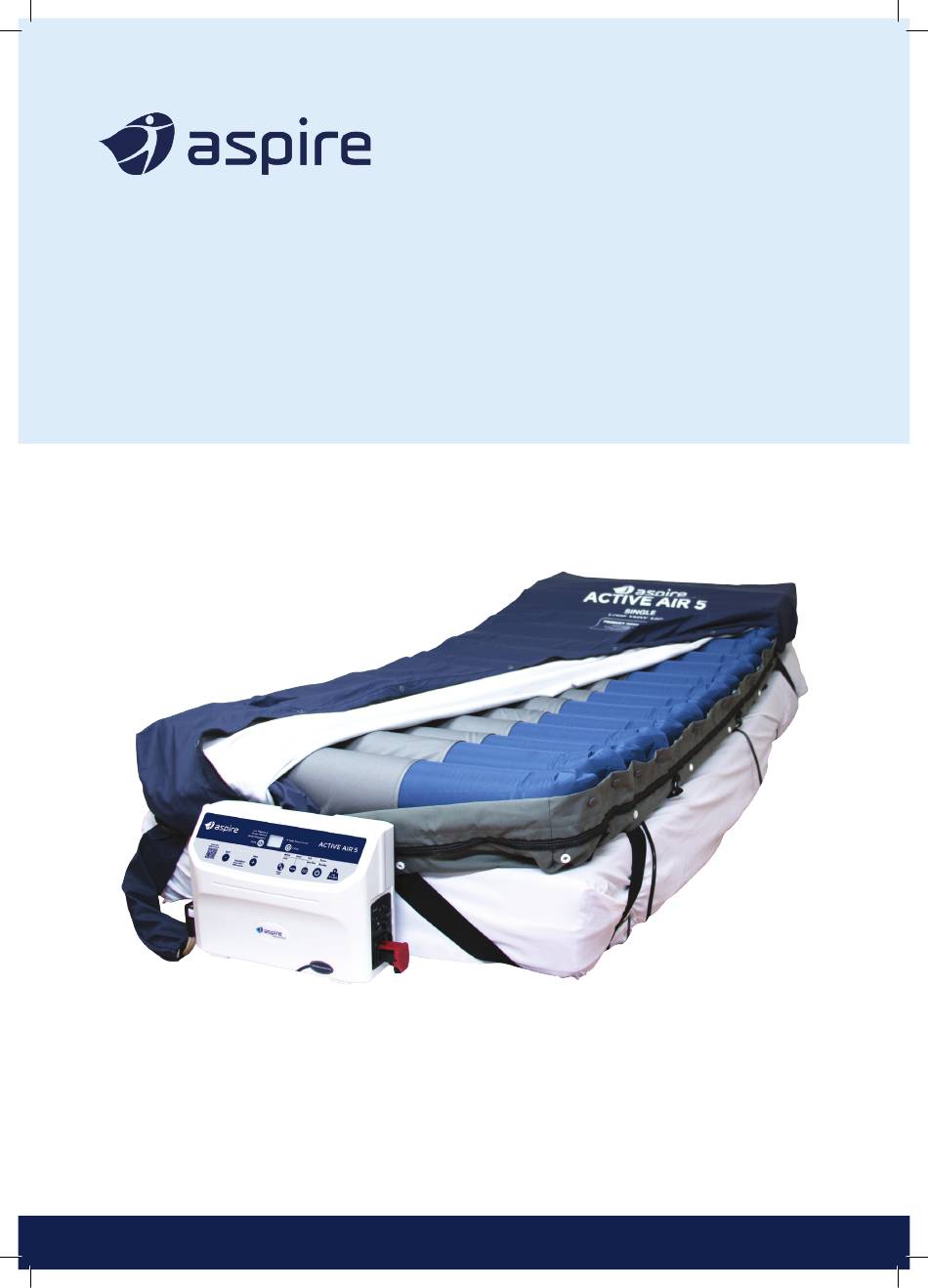

- Page 1 ACTIVE AIR 5 ® Alternating Mattress Overlays USER MANUAL...
- Page 2 Congratulations and thank you for choosing an Aspire Alternating Mattress Overlay. This overlay has been specifically designed to offer safety, comfort and support. It is important that you read this user manual carefully before using your new mattress overlay. This product features the CE mark, in compliance with the Medical Devices Regulation 2002 (as amended) Class 1, and the Medical Device Regulation 2017/745.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Symbols Used In This Manual 2. Symbols Used On The Product 3. Introduction 4. Safety Precautions 5. Product Safeguards 6. Product Overview 7. Assembly & Setup 8. Operation 9. Product Specifications 10. Cleaning 11. Maintenance & Storage 12. -
Page 4: Symbols Used In This Manual
Patient weight should NOT fall outside this range at any time as this may Range is 30 – 175kg void warranty and/or produce ineffective patient support outcomes. 2. SYMBOLS USED ON THE PRODUCT ACTIVE AIR 5 ACTIVE AIR 5 Pump: GSP493030 | GSP493030-UK Pump: GSP493031 | GSP493031-UK... -
Page 5: Introduction
The Aspire Lifecomfort Active Air 5 Alternating Mattress Overlay is intended to help reduce the incidence of pressure injuries while optimising patient comfort. The Active Air 5 may be used in a variety of environments included, but not limited to in home care, aged care and hospital. -
Page 6: Safety Precautions
Alternating Mattress Overlay • The maximum safe working load of the Active Air 5 is 175kg with a safe patient range of 30-175kg • This overlay is to be used only on top of a mattress support surface. This is NOT a mattress... -
Page 7: Product Safeguards
7. Do not operate this product if the pump has a damaged power cord or plug, not working properly, has been dropped or damaged or dropped/submerged into water or another liquid. If this occurs, contact your Aspire dealer immediately for a product inspection. -
Page 8: Product Overview
6. PRODUCT OVERVIEW The Aspire Active Air 5 Dynamic Mattress Overlay has been designed for aged care, home care and hospital environments environment. Please take the time to familiarise yourself with the key components shown below: Breathable multi-stretch cover Simple and easy to operate digital pump 5”... -
Page 9: Assembly & Setup
7. ASSEMBLY & SETUP Box Contains: • Digital Mattress Pump When opening the carton, ensure it is done • Mains Power Cable in a safe and careful manner. DO NOT USE a • 5 inch Mattress Overlay box cutter or sharp implement as this may damage the product. - Page 10 3. Ensure the CPR valve in the CLOSED position CLOSE OPEN 4. Position the pump on the FOOT END of the bed end. The spring hanger bracket assembly will self-adjust onto the footboard to secure it in place 5. Remove the plastic protector cap from the end of the air hose aspirecare.com.au...
- Page 11 WARNING! DO NOT place the pump unit in an area where the power cord can become pinched or stuck. WARNING! The digital pump is only to be used with the Aspire Active Air 5 and not any other system.
-
Page 12: Operation
8. OPERATION Aspire Active Air 5 Alternating Mattress Overlays are powered by a digital pump which can be controlled with the adjustment control panel. Various modes can be set on the digital pump to ensure maximum comfort and safety for the patient. - Page 13 AUTO FIRM This feature allows the mattress to inflate to it’s maximum pressure automatically, specifically beneficial for patient ingress & egress. It can also be used as a tool to completely inflate the mattress. 1. Press the Auto Firm button down, LED light will illuminate and the mattress will start to firm to maximum level 2.
- Page 14 FIRM Press + Hold COMFORT (PRESSURE) ADJUSTMENT The easy to operate buttons ensure comfort can be easily adjusted to suit the patient. ACTIVE AIR 5 Low Pressure Low Pressure Power Failure Power Failure 1. Press the FIRM button to increase the pressure...
- Page 15 Suggested pressure levels are automatically set (dependent on patient weight) when activating the Auto Adjust feature. 1. Press and hold down the SOFT & FIRM buttons, the LED light will flash and start detecting Low Pressure Low Pressure ACTIVE AIR 5 correct pressure Power Failure Power Failure Cycle Time (minutes) Cycle Tim 2.
- Page 16 1. If the control pump senses low pressure, the Low Pressure LED light will illuminate and alarm 2. Refer to the troubleshooting sticker on the base of the pump to identify if there is a quick and easy solution, if not please contact your Aspire dealer immediately Low Pressure...
- Page 17 4. Refer to the troubleshooting sticker on the base of the pump to identify if there is a quick and easy solution, if not please contact your Aspire dealer immediately SERVICE REQUIRED 1. If the control pump senses a fault or issue, the service LED light will illuminate 2.
-
Page 18: General Operation
GENERAL OPERATION 1. Locate the CPR valve which is located at the HEAD end of the bed 2. Open the CPR valve by twisting the cylinder to the RIGHT to the OPEN position 3. Locate the hose connector connected to the pump at the FOOT end of the bed 4. -
Page 19: Product Specifications
9. PRODUCT SPECIFICATIONS PUMP UNIT Dimensions (W x D x H) 330 x 130 x 230mm / 11.8’’ x 5.1’’ x 9’’ Weight 3.5kg / 7.7lbs Cycle Times 10/15/20/25/30 minutes Static Time 20 minutes Auto Firm Time 20 minutes Pump Output Pressure Range (mmHg) 25 ~ 60 (±5) Voltage AC230 V 50Hz... -
Page 20: Cleaning
10. CLEANING To ensure all infection control protocols are strictly adhered to, it is extremely important to follow the below steps to keep the product clean at all times. Mattress Pump • Wipe with a damp cloth that has been pre-soaked with a mild detergent •... -
Page 21: Maintenance & Storage
• Remove the cover on the side casing of the pump • Remove old fuse and reinsert a new fuse, fix in place with the cover WARNING! Only use fuse supplied by your Aspire Dealer, ensuring it has the correct rating and specification Air Filter Replacement •... -
Page 22: Troubleshooting
12. TROUBLESHOOTING PROBLEM SOLUTION • Check mattress and pump are compatible, only Active Air 5 pumps are to be used with this system Pump will not connect • Check plastic transport cap has been removed and ensure the with mattress connection is not broken •... -
Page 23: Warranty
Ensure pump is on flat area and in suitable position on bed end Pump has been dropped or has loose internal components If problem persists, please contact your Aspire dealer or Aidacare to arrange repair or replacement 13. WARRANTY Aspire Active Air 5 Alternating Mattress Overlays carry a comprehensive warranty as detailed below. -
Page 24: Compliance
This Air Mattress range is manufactured in ISO compliant production facilities in the UK to strict quality control standards. Aspire Air Mattresses are manufactured and independently tested to the market relevant compliance standards. Labels on the Air Mattress address compliance requirements and users should familiarise themselves with these prior to use. - Page 25 NOTES...
- Page 28 AIDACARE PTY LTD Building 3A, 1 Moorebank Avenue, Moorebank NSW 2170 Australia 1300 133 120 | aidacare.com.au AIDACARE LIMITED Arcadia House, Maritime Walk, Ocean Village, Southampton SO14 3TL United Kingdom 01622 541235 | aidacare.co.uk MADE IN TAIWAN ASUM33.34 030325...
