- Page 1 ACTIVE AIR ACUTE 8 ALTERNATING MATTRESS REPLACEMENT USER MANUAL PTM639400 - Single PTM639410 - King Single...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction 2. Safety Precautions 3. Product Safeguards 4. Product Overview 5. Assembly & Setup 6. Operation 7. Product Specifications 8. Cleaning 9. Maintenance & Storage 10. Troubleshooting 11. Warranty & Service 12. Service Log Book... - Page 3 Thank you for choosing this Aspire Lifecomfort Active Air Acute 8 Alternating Mattress Replacement. It is important that you read this user manual carefully before using your new mattress replacement.
-
Page 4: Introduction
1. INTRODUCTION The Aspire Lifecomfort Active Air Acute 8 (hereafter referred to as the Product) is an electrically operated Alternating Mattress Replacement offering a suite of features for a patient at high to very high risk of pressure injury. Ease of use, functionality, serviceability and cleaning practicality are key features of this Product. - Page 5 Product Description The Product is an Alternating Mattress Replacement System used in the prevention and relief for patients with, or vulnerable to, pressure injuries. This Product offers patients a comfortable and relaxing support surface by using the established principles of alternating therapy, which can both prevent skin breakdown and enhance healing.
-
Page 6: Safety Precautions
• Power Cord Protection – L shaped connection coupled with the protector function, significantly reduce the risk of the power cord becoming loose and getting damaged • Cable Management – Power cable retainer loops offer effective cable management for the removal of trip hazards and cable damage •... -
Page 7: Product Safeguards
Do not operate this product if the pump has a damaged power cord or plug, plug is not working properly, has been dropped or damaged or dropped/ submerged into water or another liquid. If this occurs, contact your Aspire dealer immediately for a product inspection. -
Page 8: Product Overview

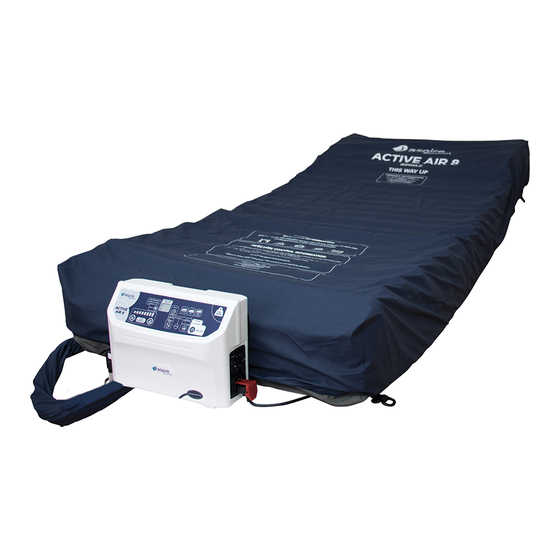

4. PRODUCT OVERVIEW The Aspire Lifecomfort Active Air Acute 8 Alternating Mattress Replacement has been designed for the Hospital and Acute Care environment. Multi-stretch vapour permeable top cover Simple O-ring cell connector’s Rapid release CPR Side safety handles Alternating cells... -
Page 9: Assembly & Setup
5. ASSEMBLY & SETUP Box Contains: 1. Digital Mattress Pump When opening the carton, ensure it is done in a 2. Mains Power Cable safe and careful manner. DO NOT USE a box cutter or sharp implement as this may damage 3. - Page 10 3. Ensure the CPR valve is at CLOSE position CLOSE OPEN 4. Position the pump on the FOOT END of the bed end. The spring hanger bracket assembly will self-adjust onto the footboard to secure it in place 5. Remove the plastic protector cap from the end of the air hose...
- Page 11 6. Firmly push the hose connector into the side of the pump unit until a notable ‘click’ sound is heard 7. Insert 3.5mm sensor cable plug into the pump interface panel jack. 8. Connect the mains power cable to the pump ensuring that the power switch remains switched OFF * US Power Outlet Shown...
- Page 12 WARNING! DO NOT place the Pump in an area where the power cord can become pinched or stuck WARNING! The digital pump is only to be used with the Aspire Lifecomfort Active Air Acute 8 and not any other system...
-
Page 13: Operation
6. OPERATION Various modes can be set on the digital pump to ensure maximum comfort and pressure redistribution for the patient. Adjustment Control Panel Operation ALT AIR MAX AIR Active Air Acute 8 Service Required Power On/Ready for Use Function Lock Out Auto Firm Mute Pressure Mode Adjustment... - Page 14 Function Lock Out Carers can lock out functions to ensure these are not accidentally toggled, impacting the operation of the mattress for the particular patient. 1. Press and hold the function lock out button until the LED light is illuminated. When illuminated the functions are locked out 2.
- Page 15 Pressure Mode Adjustment - Static, Alternating & Constant Low Pressure Static Mode This function stops the mattress from alternating and maintains the set pressure level for a duration of 20 minutes before defaulting back to the previously selected alternating mode. 1.
- Page 16 Constant Low Pressure CLP mode offers an immersion low pressure surface operating between 15mmHg to 29mmHg depending on comfort settings chosen. 1. Press the MODE button until the CLP LED light is illuminated NOTE: The below table indicate the suggested CLP pressure according to the patients weight. This is intended as a guide only as patient body shapes vary.
- Page 17 ifecomfort lifecomfort Comfort (Pressure) Adjustment CYCLE TIME CYCLE TIME 1. Press the FIRM button to increase pressure MINUTES MINUTES LOW PRESSURE LOW PRESSURE ifecomfort lifecomfort 2. Press the SOFT button to decrease pressure POWER FAILURE POWER FAILURE CYCLE FLASHING = FLASHING = CONSTANT ACTIVE...
- Page 18 Auto Adjust Correct pressure levels are automatically set (dependent on patient weight) when activating the Auto Adjust feature. Patients with unusual body shapes may require manual pressure adjustment. omfort lifecomfort 1. Press and hold down the SOFT & FIRM buttons, the LED light will flash and start detecting correct pressure CYCLE TIME CYCLE TIM...
- Page 19 1. If the pump senses low pressure, the ‘LOW PRESSURE’ LED light will illuminate and alarm 2. Refer to the Troubleshooting sticker on the base of the pump to identify potential solutions. If the issue persists contact your Aspire dealer or Aidacare Customer Service on 1300 133 120. LOW PRESSURE Power Failure 1.
- Page 20 General Operation 1. Locate the CPR valve at the HEAD end of the bed 2. Open the CPR valve by pulling and twisting the cylinder to the RIGHT to the OPEN position 3. Locate pump hose and disconnect from the pump CLOSE OPEN...
-
Page 21: Product Specifications
7. PRODUCT SPECIFICATIONS Pump Dimensions (mm) 420mm W x 230mm D x 130mm H Weight (kg) 4.6kg Cycle Times 10/15/20/25/30 minutes Static Time 20 minutes Auto Firm Time 20 minutes Pump unit Output Pressure Range (mmHg) 15 to 50 (±5) Power AC230 V 50Hz Current... -
Page 22: Cleaning
8. CLEANING To ensure all infection control protocols are strictly adhered to, it is extremely important to follow the below steps to keep the Aspire Lifecomfort Aspire Lifecomfort Active Air Acute 8 clean at all times. Pump • Wipe with a damp cloth that has been pre-soaked with a mild detergent •... -
Page 23: Maintenance & Storage
• Remove the cover on the side casing of the pump • Remove old fuse and reinsert a new fuse, fix in place with the cover WARNING! Only use fuse supplied by your Aspire Dealer, ensuring it has the correct rating and specification Air Filter Replacement •... -
Page 24: Troubleshooting
10. TROUBLESHOOTING PROBLEM SOLUTION • Check mattress and pump are compatible, only Aspire pumps are to be used with this system Pump will not connect with • Check plastic transport cap has been removed and ensure the connection is mattress not broken •... -
Page 25: Warranty & Service
11. WARRANTY & SERVICE Aspire Lifecomfort Active Air Acute 8 Alternating Mattress Replacements carry a comprehensive warranty as detailed below. Please keep proof of purchase for proof of warranty commencement. Year Year Warranty Warranty Mattress Replacement Pump Consumer Warranty Against Defects: Aidacare is bound by Australian Consumer Law in respect to Warranty Against Defects. -
Page 26: Service Log Book
12. SERVICE LOG BOOK YEAR 1 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 2 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 3 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 4 Date: Service Type:... - Page 27 YEAR 6 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 7 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 8 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 9 Date: Service Type: Condition Report: Action taken: Inspected By:...
- Page 28 Imported by: AIDACARE P/L | Building 3A, 1 Moorebank Avenue, Moorebank NSW 2170 T – 1300 133 120 | W – www.aidacare.com.au ASUM40.11 160519...
