Summary of Contents for Aspire CombiMotion ACTIV CARE

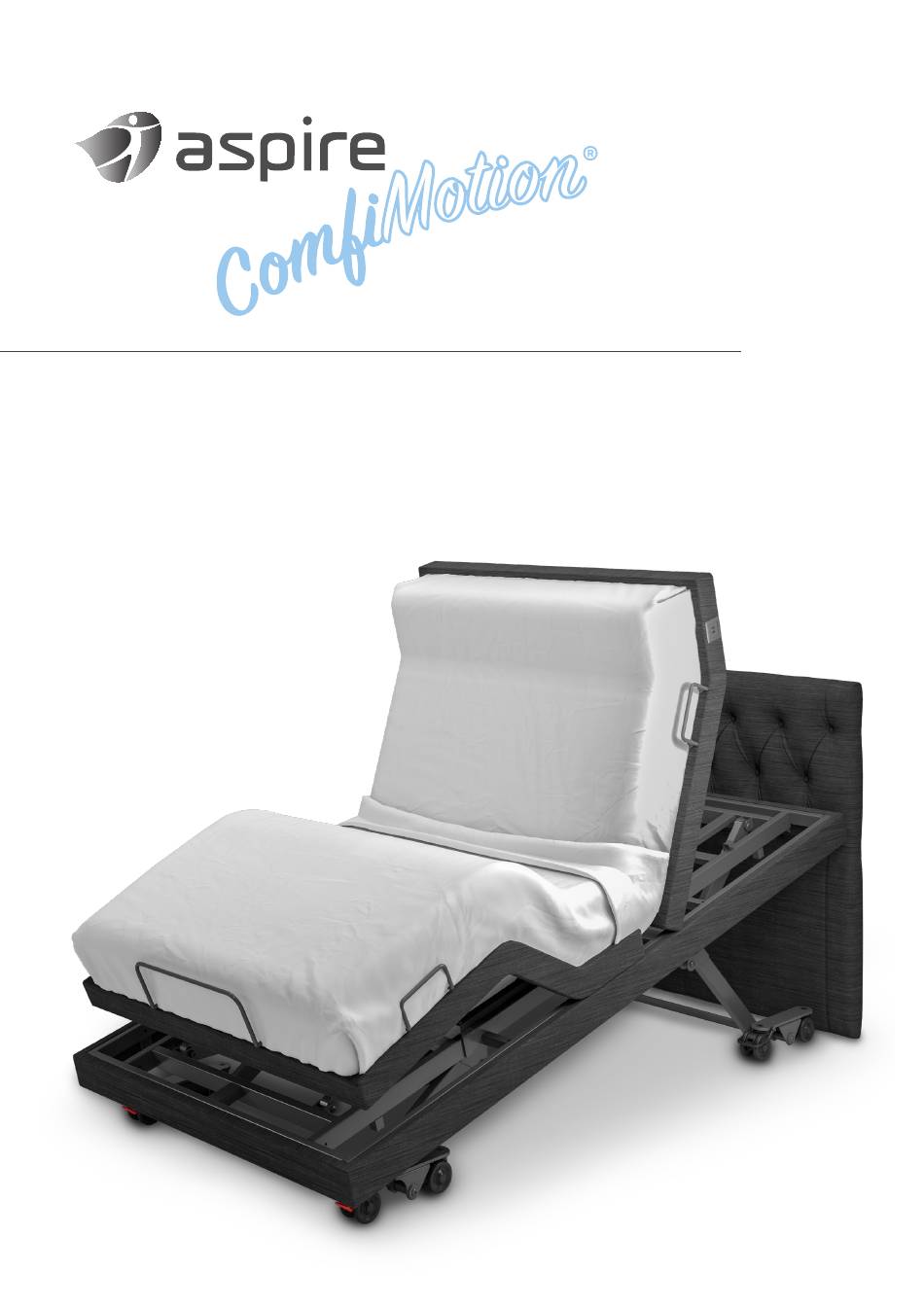

- Page 1 ACTIV CARE USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Symbols Used In This Manual Introduction Safety Precautions Specifications & Inclusions Accessories Handset Operation Castor Operation Assembly Instructions 8.1 BEDS – How to Unpack & Install 8.2 HEADBOARDS – How to Assemble or Mount 8.3 ACCESSORIES – How to Fit to Bed 8.4 SPLIT KING UPGRADE KIT Storage &... -
Page 3: Symbols Used In This Manual
On the product, this icon is represented as a white infinity Thank you for choosing this Aspire ComfiMotion ACTIV Care symbol on a black dot with a white border. Adjustable Bed. -
Page 4: Introduction
2. INTRODUCTION 3. SAFETY PRECAUTIONS This User Manual outlines the intended use of an Aspire ComfiMotion Adjustable Bed. This Aspire ComfiMotion Adjustable Beds are equipped with functions and features constitutes how to achieve full functionality, whilst maximising the safety and efficiency of engineered to enhance user comfort, independence and safety. -
Page 5: Specifications & Inclusions
4. SPECIFICATIONS & INCLUSIONS ACTIV CARE ADJUSTABLE BED ALWAYS position the bed at its lowest height when unattended to minimise the risk of patient injury from falls when getting in and out of the bed. Please ensure you have familiarised yourself with the critical information below. ALWAYS use a mattress of appropriate size and type. -
Page 6: Accessories
(located on the control box underneath the bed). Bed Rail BEA830212 USING YOUR HANDSET BEA824200 Aspire ComfiMotion Transport Trolley Extra care should be taken whilst PRESS & HOLD to initiate function operating the bed functions to ensure hands and fingers are free... - Page 7 STANDARD HANDSET SIMPLIFIED HANDSET (SOLD SEPARATELY) Battery Indicator LED Indicator Headrest Tilt (Forwards & Back) Headrest Tilt Backrest (Forwards & Back) (Forwards & Back) Legrest Backrest (Up & Down) (Forwards & Back) Hi/Lo (Raise & Lower) Legrest (Up & Down) Zero Gravity Exit Height Hi/Lo...
-
Page 8: Castor Operation
7. CASTOR OPERATION 8. ASSEMBLY INSTRUCTIONS GETTING STARTED TOTAL LOCKING CASTORS ComfiMotion Beds come securely packaged in a cardboard carton. Inside the carton Total locking castors are located at the foot end of the bed. The brakes need to be you will find the retainers and hand control safely secured underneath the bed frame. - Page 9 8.1 BEDS HOW TO UNPACK & INSTALL Connect hand control into control box port. LONG SINGLE BEB046740 KING SINGLE BEB046750 Remove bed from carton and position on flat surface or a Bed Moving Trolley for easy setup. Ensure the bed is placed TOP DOWN, so all components (hand control, retainers, castors &...
- Page 10 8.2 HEADBOARDS HOW TO ASSEMBLE - FREESTANDING WITH STABILISERS HOW TO ASSEMBLE OR MOUNT ALLURE / CHESTERFIELD HEADBOARDS Tools Required: ALLURE (LS) BEA830120 CHESTERFIELD (LS) BEA830100 For use on the: HEADBOARDS • Impact driver or drill (5mm attachment) ACTIV CARE BED ALLURE (KS) BEA830130 CHESTERFIELD (KS) BEA830110 •...
- Page 11 8.3 ACCESSORIES HOW TO FIT TO BED Raise bed height, backrest and legrest to maximum height for ease of access. BED RAIL / BED STICK To adjust: ACCESSORIES BED RAIL BEA830212 CROOK HANDLE BEA830211 For further installation and operating instructions, refer to the User Manual. Tools Required: •...
-
Page 12: Split King Upgrade Kit
8.4 SPLIT KING UPGRADE KIT The Split King Upgrade Kit allows two ComfiMotion ACTIV Care Long Single beds Mount the rail to the mounting brackets using the 20mm bolts to be connected together and act as a Split King bed. In this configuration, hi-lo NOTE: Images show assembly without the bed for clarity of which bolts fit where. - Page 13 HOW TO INSTALL Remove all mattresses, bedding and/or packaging from both beds. Test both beds function and are free to move through all range of movements. Raise bed height, backrest and legrest to maximum height for ease of access. Do this for both beds. To adjust: HI-LO BACKREST...
- Page 14 Connect the Electrical Cable to port 4 of the control box of the LEFT bed. Connect the Electrical Cable from RIGHT bed to the 2nd port of the junction box on LEFT bed. Do NOT connect the other end of this cable to the junction box yet. Test beds are connected by pressing hi-lo button from one handset.
-
Page 15: Storage & Movement
9. STORAGE & MOVEMENT 10. CLEANING • DISCONNECT the bed power cord before moving the bed. BEFORE CLEANING always disconnect the bed from the mains power source. • DO NOT remove the power cord from the source by pulling on the cord. WARNING •... -
Page 16: Service & Maintenance
PRESSING if error still present. do not seem correct. NOTE: If you are unsure if your ComfiMotion bed is working correctly, Contact HANDSET Aidacare or your local authorised Aspire Dealer. BUTTONS www.comfimotion.com.au ComfiMotion is a registered trademark. -
Page 17: Warranty & Service
Aidacare Pty Ltd Building 3A, 1 Moorebank Avenue The Aspire ComfiMotion Memory Foam Mattress is strictly intended for domestic use only. This product is NOT intended for hoteling, commercial, hospital, specialised Moorebank NSW, Australia 2170 or commercial care usage, prevention or treatment of pressure injuries. It is strongly recommended to consult an Occupational Therapist and/or health professional for T –... -
Page 18: Service Log Book
Action taken: ________________________________________________________ responsible for those costs. Date: _________________________ Evidence of a defect and any claims must be sent to place of purchase (Aidacare or an Aspire ComfiMotion approved second party distributor) before the limited mattress warranty expires. YEAR 5... - Page 19 AIDACARE PTY LTD Building 3A, 1 Moorebank Avenue, Moorebank NSW Australia 2170 1300 133 120 | www.aspirecare.com.au MADE IN PRC ASUM80.10 310122...
