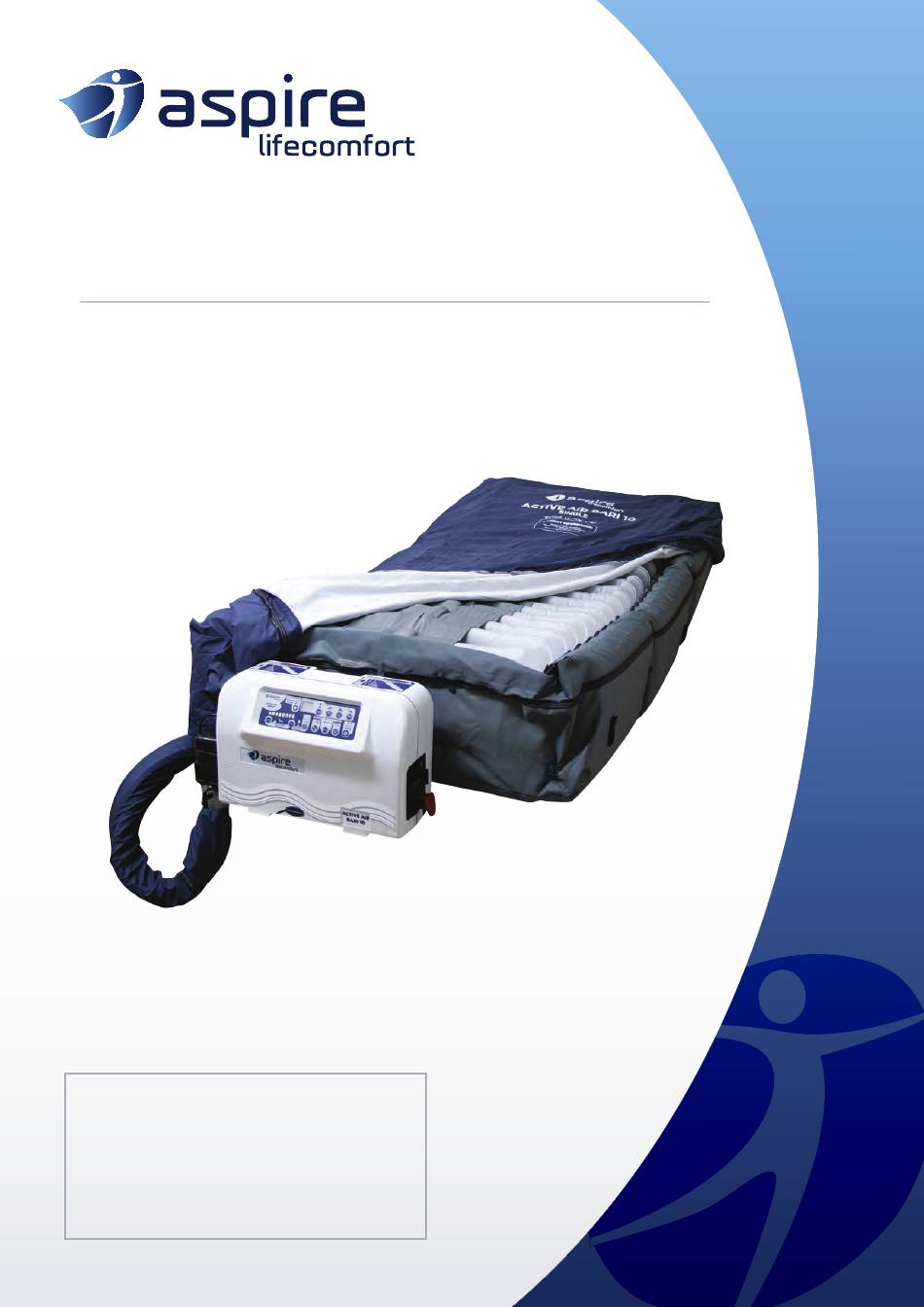

- Page 1 ACTIVE AIR BARI 10 ALTERNATING MATTRESS REPLACEMENT USER MANUAL PTM639500 - Single PTM639510 - King Single PTM639520 - Super King Single...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction 2. Safety Precautions 3. Product Safeguards 4. Product Overview 5. Assembly & Setup 6. Operation 7. Product Specifications 8. Cleaning 9. Maintenance & Storage 10. Troubleshooting 11. Warranty & Service 12. Service Log Book... - Page 3 Thank you for choosing this Aspire Lifecomfort Active Air BARI 10 Alternating Mattress Replacement. It is important that you read this user manual carefully before using your new mattress replacement.
-
Page 4: Introduction
1. INTRODUCTION The Aspire Lifecomfort Active Air BARI 10 (hereafter referred to as the Product) is an electrically operated Alternating Mattress Replacement offering a suite of features for a patient at high to very high risk of pressure injury. Ease of use, functionality, serviceability and cleaning practicality are key features of this product. - Page 5 Product Description The Product is an Alternating Mattress Replacement System used in the prevention and relief for patients with, or vulnerable to, pressure injuries. This Product offers patients a comfortable and relaxing support surface by using the established principles of alternating therapy, which can both prevent skin breakdown and enhance healing.
-
Page 6: Safety Precautions
• Hassle Free Pump Maintenance – Modular Pump design ensures Pumps can be serviced and returned to use quickly minimizing downtime • Power Cord Protection – L shaped connection coupled with the protector function, significantly reduce the risk of the power cord becoming loose and getting damaged •... -
Page 7: Product Safeguards
Do not operate this product if the pump has a damaged power cord or plug, plug is not working properly, has been dropped or damaged or dropped/ submerged into water or another liquid. If this occurs, contact your Aspire dealer immediately for a product inspection. -
Page 8: Product Overview

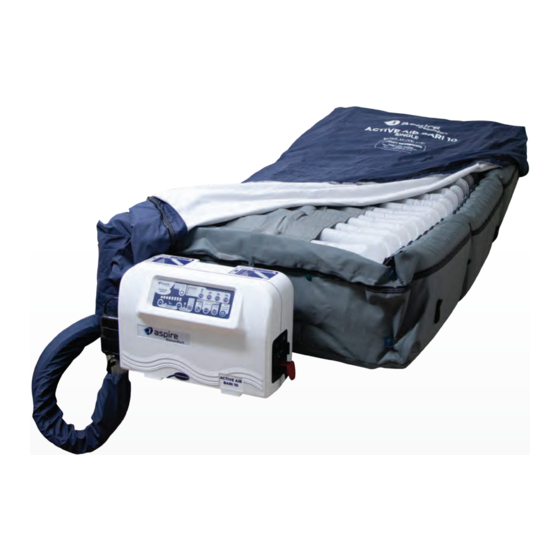

4. PRODUCT OVERVIEW The Aspire Lifecomfort Active Air BARI 10 Alternating Mattress Replacement has been designed for the Hospital environment. Multi-stretch vapour permeable top cover Rapid release CPR Simple O-ring cell connector’s Side safety handles Alternating cells Durable base cover... -
Page 9: Assembly & Setup
5. ASSEMBLY & SETUP Box Contains: 1. Digital Mattress Pump When opening the carton, ensure it is done in a 2. Mains Power Cable safe and careful manner. DO NOT USE a box cutter or sharp implement as this may damage 3. - Page 10 3. Ensure the CPR valve is at CLOSE POSITION CLOSE OPEN 4. Position the pump on the FOOT END of the bed end. The spring hanger bracket assembly will self-adjust onto the footboard to secure it in place...
- Page 11 5. Remove the plastic protector cap from the end of the air hose 6. Firmly push the hose connector into the side of the pump until a notable ‘click’ sound is heard 7. Insert 3.5mm sensor cable plug into the pump interface panel jack...
- Page 12 WARNING! DO NOT place the Pump in an area where the power cord can become pinched or stuck WARNING! The digital pump is only to be used with the Aspire Lifecomfort Active Air BARI 10 and not any other system...
-
Page 13: Operation
6. OPERATION This Product has a high airflow digital pump with an adjustable control panel. Various modes can be set on the digital pump to ensure maximum comfort and pressure redistribution for the patient. Adjustment Control Panel Operation AUTO MODE FIRM Power On/Ready for Use Auto Firm... - Page 14 Power On/Ready For Use The power switch for the Pump is located on the side of the Pump. 1. Turn on the power switch on the side of the pump, then press the ON/OFF button on the control panel 2. The ‘POWER’ LED will illuminate and inflate to normal pressure (This will take up to 3 minutes) AUTO AUTO MODE...
- Page 15 Auto Firm This feature allows the mattress replacement to inflate to maximum pressure automatically, specifically beneficial for patient ingress, egress and meal time. It can also be used as a tool to completely inflate the mattress. 1. Press the ‘AUTO FIRM’ button down, LED light will start flashing and the mattress will start to firm to maximum level where LED light will be fully illuminated 2.
- Page 16 Alternating Mode - 2 IN 1 This function alternates the mattress cells in a 1-in-2 cycle. 1. Press MODE button until the ‘ALTERNATING 2 IN 1’ LED light is illuminated 2. Toggle the alternating cycle times (10, 15 or 20 minutes) by pressing the ‘CYCLE’ button, the cycle time will be displayed on the LED screen AUTO MODE...
- Page 17 Comfort (Pressure) Adjustment 1. Press the ‘FIRM’ button to increase pressure 2. Press the ‘SOFT’ button to decrease pressure AUTO MODE FIRM NOTE: The below table indicates the suggested pressure according to the patients weight. This is intended as a guide only as patient body shapes vary.
- Page 18 Auto Protect Additional air is pump under the mattress pelvic region when the bed backrest angle is raised to prevent patient bottoming out. This is also referred to as a Fowler Function. 1. Auto protect activates when the bed backrest angle exceeds 25º, at this point an additional 10mmHg of pressure is provided by the pump.
- Page 19 Turning Mode 1. Select Turning Type 2. Press ‘LEFT TURN’ button to initiate active single turn to the left 3. Press ‘RIGHT TURN’ button to initiate active single turn to the right 4. Press ‘FULL TURN’ button to initiate periodic full turn Select Turning Duration Toggle cycle time by pressing ‘TURN CYCLE’...
- Page 20 1. If the pump senses low pressure, the ‘LOW PRESSURE’ LED light will illuminate and alarm 2. Refer to the Troubleshooting sticker on the base of the pump to identify potential solutions. If the issue persists contact your Aspire dealer or Aidacare Customer Service on 1300 133 120. LOW PRESSURE Power Failure 1.
- Page 21 General Operation 1. Locate the CPR valve at the HEAD end of the bed 2. Open the CPR valve by pulling and twisting the cylinder to the RIGHT to the OPEN position 3. Locate pump hose and disconnect from the pump CLOSE OPEN...
-
Page 22: Product Specifications
7. PRODUCT SPECIFICATIONS Pump Dimensions (mm) 400mm W x 175mm D x 275mm H Weight (kg) 6.5kg Alternation Cycle Times 10/15/20 minutes Turning Cycle Times 10-95 minutes Pulsate Cycle Times 10/15/20 minutes Auto Firm Time 20 minutes Pump Output Pressure Range (mmHg) 10-46mmHg (±5) Power AC230 V 50Hz... -
Page 23: Cleaning
8. CLEANING To ensure all infection control protocols are strictly adhered to, it is extremely important to follow the below steps to keep the Aspire Lifecomfort Aspire Lifecomfort Active Air BARI 10 clean at all times. Pump • Wipe with a damp cloth that has been pre-soaked with a mild detergent •... -
Page 24: Maintenance & Storage
• Remove the cover on the side casing of the pump • Remove old fuse and reinsert a new fuse, fix in place with the cover WARNING! Only use fuse supplied by your Aspire Dealer, ensuring it has the correct rating and specification Air Filter Replacement •... -
Page 25: Troubleshooting
10. TROUBLESHOOTING PROBLEM SOLUTION • Check mattress and pump are compatible, only BARI 10 marked Aspire pumps are to be used with this system Pump will not connect with • Check plastic transport cap has been removed and ensure the connection is... -
Page 26: Warranty & Service
11. WARRANTY & SERVICE Aspire Lifecomfort Active Air BARI 10 Alternating Mattress Replacements carry a comprehensive warranty as detailed below. Please keep proof of purchase for proof of warranty commencement. Year Year Warranty Warranty Mattress Replacement Pump Consumer Warranty Against Defects: Aidacare is bound by Australian Consumer Law in respect to Warranty Against Defects. -
Page 27: Service Log Book
12. SERVICE LOG BOOK YEAR 1 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 2 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 3 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 4 Date: Service Type:... - Page 28 YEAR 6 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 7 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 8 Date: Service Type: Condition Report: Action taken: Inspected By: Signature: YEAR 9 Date: Service Type: Condition Report: Action taken: Inspected By:...
- Page 29 NOTES...
- Page 30 Imported by: AIDACARE P/L | Building 3A, 1 Moorebank Avenue, Moorebank NSW 2170 T – 1300 133 120 | W – www.aidacare.com.au ASUM42.8 020919...
