RENON Xtreme LV Quick Installation Manual

Product Specifications
Installation video
I. Pre-Installation Preparation
Safety Warnings
•
Installation must be performed by qualified personnel. Read all
relevant manuals before starting.
•
Ensure power is OFF before installation. Disconnect batteries, PV
modules, and AC power.
•
Avoid battery short circuits. Verify polarity when connecting
batteries.
•
Comply with local electrical codes for safe and legal installation.
II. Installation Steps

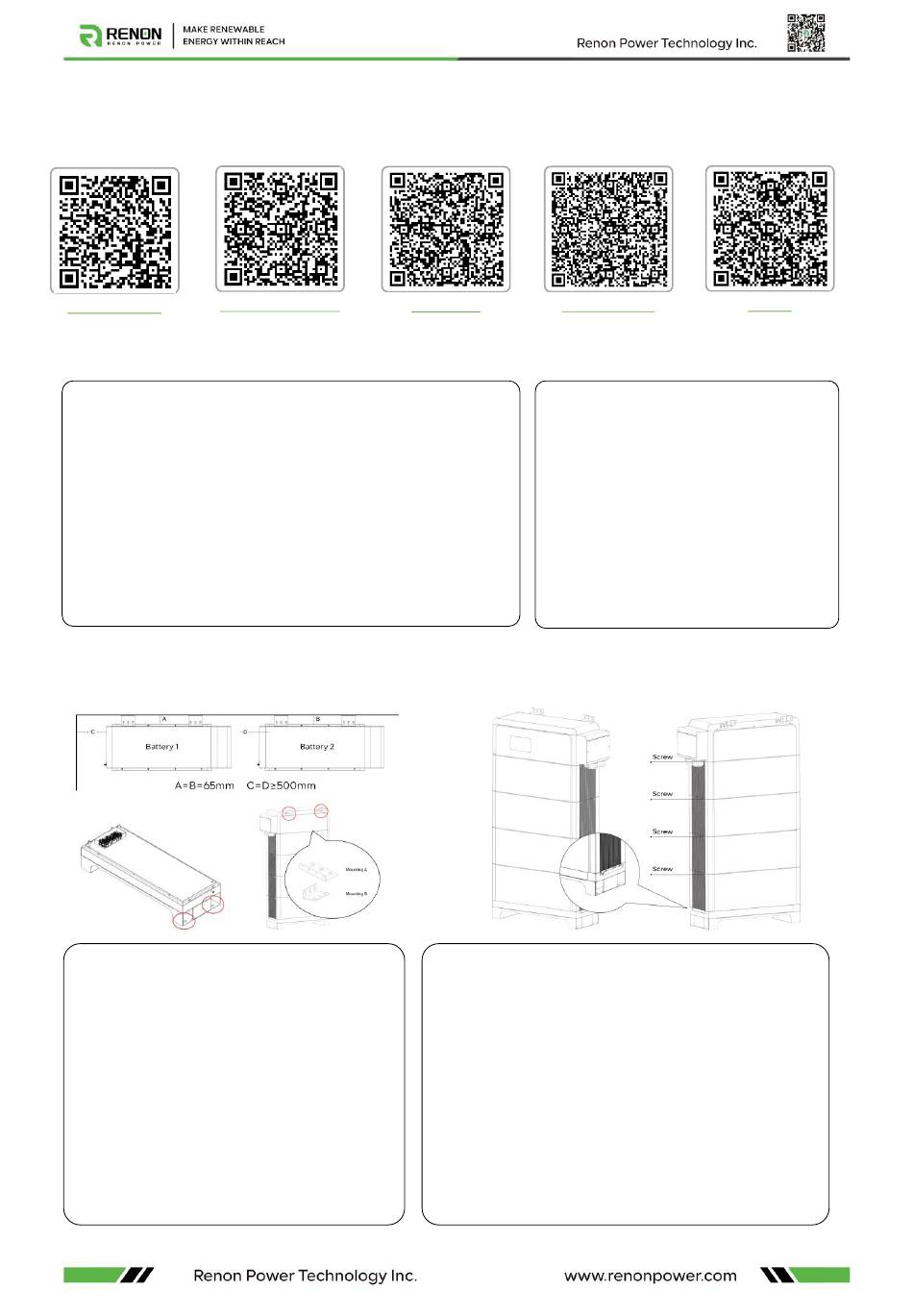

STEP 1: Installing the Xtreme LV Battery
1. Prepare the Installation
�� Ensure the following conditions before
installation:
• Choose a suitable location: Ensure good
ventilation and avoid direct sunlight or high-
temperature environments.
• Secure the battery base: Fix the base to
prevent movement.
• Pre-install Mounting A and Mounting B on the
back of the main control unit.
Quick Installation Guide
Xtreme LV Battery and Sol-Ark 15K-2P-N Inverter
User Manual CEC List Checking
Required Tools & Equipment
•
Xtreme LV System
•
Sol-Ark 15K-2P-N Inverter
•
Power Cable: AWG 2/0 size, 2*Positive,
2*Negative
•
Screwdrivers, Wrenches, Multimeter, and
other electrical tools
2. Stack and Secure the Battery Modules
�� Follow these steps for proper stacking and stability:
• Stack the battery modules one by one on the secured
base.
• Lock the side panels on both sides to secure the structure.
• Wall mounting: Align with Mounting B on the back of the
main control unit, mark the wall, drill holes, and secure the
mounting brackets.
• Check and tighten all screws to ensure a stable and secure
installation.
UL 9540
