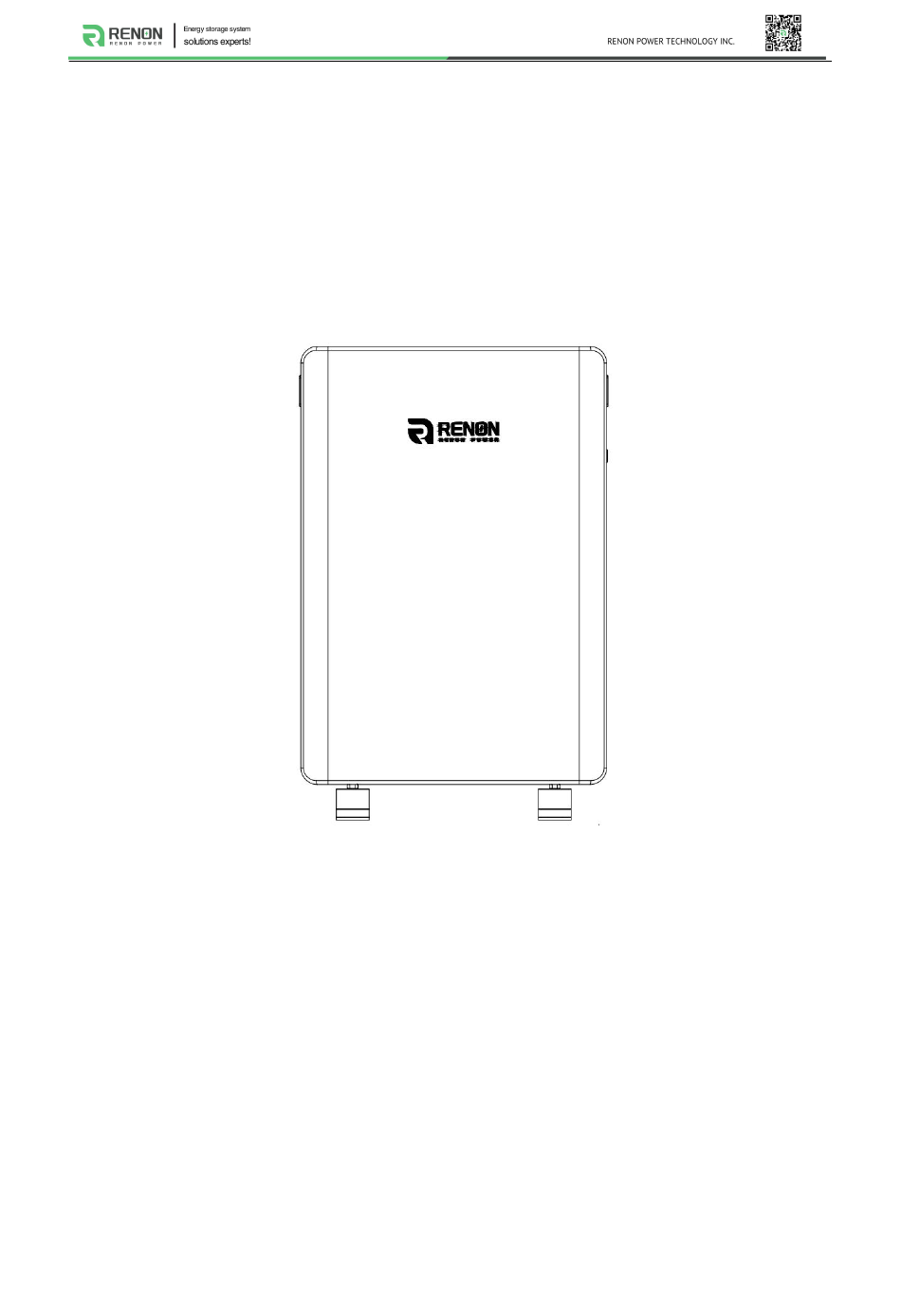

- Page 1 User Manual of Xcellent Plus (R-XC016161 / R-XC016161-H) Email: support@renonpower.com Official website: www.renonpower.com Address: 5900 Balcones Drive STE 100, Austin, TX 78731, United States...
-
Page 2: Revision History
Revision History Ver. Date Revise contents Reviser 2024.09.11 New Edition Janice... -
Page 3: Table Of Contents
Catalogue Revision History ........................2 1 Safety Instructions ......................5 1.1 General Safety Precautions ..................5 1.2 Transportation and Storage Precautions ............. 6 1.3 Installation Precautions .....................6 1.4 Usage Precautions ...................... 7 1.5 Response to Emergency Situations ............... 8 1.6 Qualified Personnel ....................8 2 Introduction ........................10 2.1 Product features ......................10 2.2 Specifications ...................... - Page 4 3.2 System Premeasurement ..................23 3.3 Installation location ....................23 3.4 Package items ......................24 3.5 Installation ........................25 3.6 Connection of Cable and Power ................28 3.7 Wi-Fi Configuration ....................32 3.8 Parallel connection (Optional) ................40 4 Troubleshooting & Maintenance ................41 4.1 Regular maintenance ....................41 4.2 Troubleshooting ......................41 4.3 Alarm Codes .......................43 4.4 Error Codes .........................
-
Page 5: Safety Instructions
1 Safety Instructions Safety Instructions for safety reasons, installer and user are responsible for familiarizing themselves with the contents of this document and all warnings before installation and usage. 1.1 General Safety Precautions ●Please carefully read this manual before any work is carried out on the product, and keep it located near the product for future reference. -
Page 6: Transportation And Storage Precautions
● Batteries marked with the recycling symbol must be processed via a recognized recycling agency. By agreement, they may be returned to the manufacturer. 1.2 Transportation and Storage Precautions ●The batteries must be transported according to UN3480, they must be packed according to packaging requirements of Special Regulation 230 of IMDG CODE (40-20 Edition) for maritime transport, and P965 IA for air transport (SOC less than 30%). -
Page 7: Usage Precautions
other than within utility closets and storage or utility spaces. ● If the Product is installed in a garage or carport, ensure there is adequate clearance from vehicles. ●While working on the product wear protective eyeglasses and clothing. ●Handle the battery wearing insulated gloves. ●Use insulated tools. -
Page 8: Response To Emergency Situations
●The default temperature range over which the battery can be charged is 32℉ (0℃) to 122℉ (50℃). Frequently charge the battery in high or low temperature may deteriorate the performance and life of the battery pack. ●Do not charge or discharge a damaged battery. ●Please contact the supplier within 24 hours if there is something abnormal. - Page 9 ●Knowledge of the installation of electrical devices. ●Knowledge of torsion and screwdrivers for different types of screws. ●Knowledge of local installation standards. ●Electrical license for battery installation required by the country or state. ● Knowledge of the dangers and risks associated with installing and using electrical devices and acceptable mitigation methods.
-
Page 10: Introduction
2 Introduction The Xcellent Plus is a lithium iron phosphate battery-based energy storage product developed and produced by RENON, it can supply reliable power for nearly all kinds of household appliances and equipment. The Xcellent Plus consists of a built-in BMS battery management system, which... -
Page 11: Specifications
2.2 Specifications Item R-XC016161 / R-XC016161-H Battery Chemistry LiFePO4 Nominal Energy (kWh) Nominal Capacity (Ah) Max. Charging/Discharging Current (A) Nominal Voltage (V) 51.2 Recommend Charging Voltage (V) 56.8 Max. Charging Voltage (V) 58.4 Discharge Cut-off Voltage (V) 43.2 Heating Power(W) Heating Start Temperature 41/5 (-H model only) (℉/℃) -
Page 12: Light And Button
Item Specification Device shut down:Power off Device disconnect router:Always on RUN(Green) Device has connected router:0.5s on,0.5s off Device has connected Renon Cloud Platform:0.5s on,1.5s off No alarm or shut down:Power off Alarm(Yellow) Alarm:Always on No protection or fault:Power off Fault(Red) Protective firing:0.5s on,0.5s off... -
Page 13: Button
2.3.2 Button The switch is used to power-on/power-off the device. The button is located in right corner of device. -
Page 14: Interface Information
2.4 Interface Information Figure 1.4.1 Battery ports Instructions Instructions On/Off Address Dial Switch Link-in Parallel Communication Port Debug Port(connector) Inverter Communication Port Link-out Parallel Communication Port (connector) Inverter Communication Port (RJ45) Dry Contact & GPIO Port Debug Port(RJ45) Power Positive Inverter Dial Switch Power Negative Function Dial Switch... -
Page 15: Link-In Parallel Communication Port
“Connection of Cable and Power” as below in detail） Figure 2.4.1 On/Off introduction 2.4.2 Link-in Parallel Communication Port Terminal type: RJ45 Usage: communicate with the last battery when parallel used. Port definitions RJ45 Pin Function BMS_CAN1L BMS_CAN1H BMS_CC_GND BMS_CC_GND BMS_PW_IN1 BMS_CC_GND BMS_XUNZIN- BMS_XUNZIN+... -
Page 16: Inverter Communication Port (Rj45)
Port definitions RJ45 Pin Function BMS_CAN1L BMS_CAN1H BMS_CC_GND BMS_PW_OUT2 BMS_PW_OUT1 BMS_CC_GND BMS_XUNZOUT- BMS_XUNZOUT+ 2.4.4 Inverter Communication Port (RJ45) Terminal type: RJ45 Usage: communicate with inverter. Before connect inverter with battery by communication cable, users need to check its cable sequence at first. Check the manual of inverter for definition of inverter side. -
Page 17: Inverter Dial Switch
Open the website and select Xcellent Plus, and download the Inverter Matching Guide.） The definitions of code 0 ~ 26 are shown as below table. Code Dial Switch Position Brand Logo RENON (Reserved) Schneider Gateway Sol-Ark Solis_LV Goodwe_LV Studer_Xtender... - Page 18 Victron_color control SMA_LV Sermatec_LV Sofar_LV DEYE Growatt_SPF Growatt_SPH&SPA Must MEGAREVO Aiswei Phocos Voltronic Power Afore Lux Power CHISAGE ESS Code 63 is used for special function, defined as below:...
-
Page 19: Address Dial Switch
Dial Code Switch Code Definition Position The battery enters WiFi configuration mode, see chapter 3.7 for more information. 2.4.7 Address Dial Switch 1) Use this Dial Switch to set the address of each battery and then turn on to activate the system when it needs to be in parallel with other battery units. 2) When the system only has one battery set, dial the address to 1. -
Page 20: Debug Port (Connector)
Set as battery 11 Set as battery 12 Set as battery 13 Set as battery 14 Set as battery 15 2.4.8 Debug Port (connector) Terminal type: 6-Pin terminal block Usage: debug port of the system which used by technician only.. Defined as below: 6pin Terminal Usage... -
Page 21: Dry Contact & Gpio Port
CAN2H COM_SGND 2.4.10 Dry Contact & GPIO Port Terminal type: 6-Pin terminal block This is for General-purpose input & output (GPIO) which reserved for future communication and used for an uncommitted digital signal pin on an integrated circuit or electronic circuit (e.g. MCUs/MPUs ) board which may be used as an input or output, or both, and is controllable by software. -
Page 22: Installation And Usage
3 Installation and Usage 3.1 Safe Handling Guide 3.1.1 Familiar with the product Be careful when unpacking the system. The product is heavy. Don't lift them with a pole. The weight of the modules can be found in the chapter "Specifications". -
Page 23: System Premeasurement
product: Insulated gloves Safety goggles Safety shoes 3.2 System Premeasurement The battery required adequate clearance for installation, cabling, and airflow. The minimum clearance for system configuration is given below. The cable connecting between battery pack and inverter should be in accordance with the installation guide manual of the inverter. -
Page 24: Package Items
3.4 Package items After receiving the product, please unpack the boxes, and check product and packing list first, if product is damaged or lack of parts, please contact with the local retailer. Here is the Xcellent Plus Packing List: Item Specification Usage Diagram... -
Page 25: Installation
Set the pin order of the communication cable Pin order select 3.3*1.0*0.9inches of battery and inverter, box (optional) /85*26*22mm cooperate with 2 standard network cable Inverter Connect the Standard RJ45 network Communication communication pole of cable, 1m Cable (Optional) battery and inverter User manual Xcellent Plus User manual... - Page 26 Figure 3.5.2 Put Xcellent Plus on the mounting panel 4) Secure the screw to grounding cable hole and grounding,using M5 screws to secure the device and bracket. Method 2:On the ground 1) Make sure whether the wall can support the weight of the device. 2) Find a appropriate installation position as the picture below,drill the mounting screws,and install the bracket on the wall.
- Page 27 Figure 3.5.4 Fix footed glass on the ground 4) Secure the screw to grounding cable hole and grounding,using M5 screws to secure the device and bracket. 5) Rotate the footed glass to the right and mount it to the bottom plate. 6) Adjust the appropriate position as the following diagram.
-
Page 28: Connection Of Cable And Power
Figure 3.5.7 Device moving direction 4) Fix the product on the bracket to ensure that the wall hanging is stable and perpendicular to the wall. Figure 3.5.6 Device standing 5) Secure the screw to grounding cable hole and grounding,using M5 screws to secure the device and bracket. - Page 29 Figure 3.6.1 Side view of Xcellent Plus 2) Set the address dial code (Addr. SET) of battery as code 1, set its function dial code (Function SET) as code 4 and set its inverter dial code (INV. SET) to the corresponding inverter's code. 3) Turn off the system and then connect the battery positive and negative electrode with the inverter's positive and negative electrode separately.
- Page 30 Renon's engineer. Comm Dail switch position Inverter brand Mode Schneider_Gateway Sol-Ark Solis Goodwe Studer Victron Sermatec Sofar DEYE...
- Page 31 Growatt_SPF RS485 Growatt_SPH&SPA Must MEGAREVO Aiswei Phocos RS485 Voltronic Power RS485 Afore Lux Power CHISAGE ESS...
-
Page 32: Wi-Fi Configuration
Figure 3.6.4 Mount back the side panel 3.7 Wi-Fi Configuration Set the inverter dial code (INV SET) to 63(111111) as shown below before Wi-Fi configuration. 1) Download and install RENON APP from Google or Apple Store by searching Renon Smart. - Page 33 Figure 3.7.1. Install RENON APP 2) You may acquire the Register Code from your installer for new account registration. If you already had an account （Installer Company level， Installer level and End User level）, you may use it to login the APP directly otherwise you need to create an account.
- Page 34 Figure 3.7.3. Bluetooth Network Setting 4) Connect your mobile phone to the Bluetooth from the master controller which SSID is same as controller's serial number (SN). Figure 3.7.4. Connect Battery Bluetooth 5) Enter the SSID and password of your private WI-FI for connecting master controller to your private WI-FI.
- Page 35 Figure 3.7.5. Connecting Private WIFI 6) If you can not find the Bluetooth from the battery. Please go back to Distribution network interface, and click WIFI model. And following by the instruction of network setting for WIFI configuration. Figure 3.6.6. WIFI Network Setting 7) Please input the serial number of the device you want to WIFI configuration and input the device Verification code.
- Page 36 Figure 3.7.7. Input Device Serial Number and Verifcation Code How to find the device verifcation code? Step1: Click my device at page Mine. Figure 3.7.8. Find the Device Step2: Click the device and click the “details”in the upper right corner of the interface, and then click “Device key”.
- Page 37 Figure 3.7.9. Find the Device Key 8) Connect your mobile phone to the WI-FI hotspot from the battery which SSID is same as battery's serial number (SN) and the password is 12345678. 9) Enter the SSID and password of your private WI-FI for connecting master controller to your private WI-FI.
- Page 38 11) Turn to main page of the APP, create a plant, and set a power station name, power station type, grid price configuration,superiors view and power station address for it. Figure 3.7.11. Create A New Plant 12) Click the Add device button to add the device to your plant and all your products will show up as their SN, select proper products and confirm.
- Page 39 Figure 3.7.13. Manage Your Products 14) After the product is connected to Wi-Fi, the running status, real-time power, daily power consumption and cumulative power of the product can be monitored in real time on the network platform or mobile APP. It can also be used to configure parameters Figure 3.7.14.
-
Page 40: Parallel Connection (Optional)
3.8 Parallel connection (Optional) If user needs to set up a system more than one Xcellent, user can set up a parallel system. 1) Each Xcellent’s address dial code should be set as 1,2, 3... in order. Set the inverter dial code of the battery with address of 1 to the corresponding inverter's code, please refer to chapter of inverter dial code. -
Page 41: Troubleshooting & Maintenance
4 Troubleshooting & Maintenance 4.1 Regular maintenance 1) Check the battery modules every 3 months to verify whether there are damages. 2) Check the battery modules every 3 months to verify whether the operating parameter is normal or there is no abnormal heating. 3) Fully charge and discharge the battery system every 3 months. - Page 42 Make sure the connection of communication cable and power cable is correct, refer to the chapter of connection of cable and power. Make sure the address dial code of the master controller connected to inverter is 1. Unable to communicate with inverter Make sure the inverter dial code of the master controller connected to inverter is correct, refer to the chapter of...
-
Page 43: Alarm Codes
Check the battery refer to the definition of the error or warming codes. If cannot solve the problem, please contact Error or Alarm shown on the screen the installer. Make sure the antenna is screwed properly. Make sure the WIFI configuration is correct. Make sure the SSID &... - Page 44 Make sure the power of load do not exceed the power of Discharge overcurrent alarm battery. Make sure the battery’s temperature shown on the inverter or the APP is below 55℃, otherwise turn off the battery till High charge temp alarm the temperature is below 55℃...
-
Page 45: Error Codes
Low SOC alarm Low SOC and needs to be charged. 4.4 Error Codes Code Error Type Investigation & troubleshooting Restart the battery, and if the error code F102 still F102 Battery cell fault remaining or reappear, contact your installer. Restart the battery, and if the error code F103 still F103 NTC fault remaining or reappear, contact your installer. -
Page 46: Protection Codes
Restart the battery, and if the error code F132 still F132 EMS SN is empty remaining or reappear, contact your installer. Restart the battery, and if the error code F135 still F135 Pack SN is empty remaining or reappear, contact your installer. 4.5 Protection Codes Code Error Type... - Page 47 Make sure the ambient temperature of the battery is below High ambient temp protection 50℃. Low total voltage protection Low voltage level and needs to be charged. Make sure the ambient temperature of the battery is above Low ambient temp protection -25℃.
