RENON Ecube Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

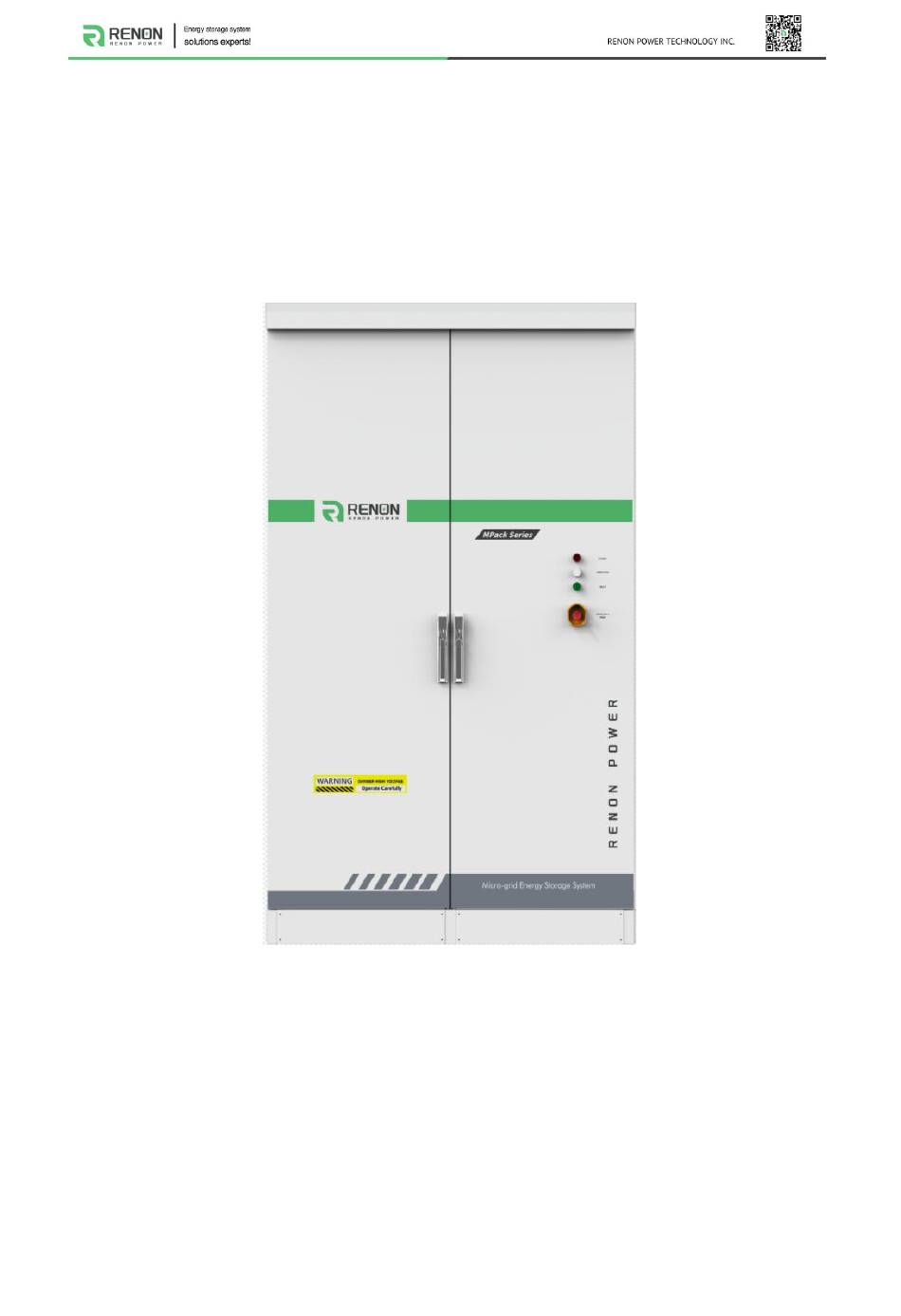

User Manual of Ecube Series
(R-EC207LCB01)
Email: support@renonpower.com
Official website: www.renonpower.com
Address: 5900 Balcones Drive STE 100, Austin, TX 78731, United States
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ecube Series and is the answer not in the manual?

Questions and answers

Related Manuals for RENON Ecube Series

Summary of Contents for RENON Ecube Series

  • Page 1 User Manual of Ecube Series (R-EC207LCB01) Email: support@renonpower.com Official website: www.renonpower.com Address: 5900 Balcones Drive STE 100, Austin, TX 78731, United States...
  • Page 2 Revision History Ver. Date Revise contents Reviser 2023.11.4 Vivid...

  • Page 3: Table Of Contents

    3.8. Usage Guide ........................57 3.8.1. Confirmation before energization ................57 3.8.2. Activation ........................ 57 3.8.3. Stop Operation ......................58 3.9. Renon Cloud Platform Configuration ................59 3.9.1. BLE Configuration ....................59 3.9.2 4-GHz Configuration ....................62 4. Troubleshooting & Maintenance ................64 4.1. Regular maintenance ..................... 64 4.2.

  • Page 4: Safety Instructions

    1. Safety Instructions Instructions for safety reasons, installer and user are responsible for familiarizing themselves with the contents of this document and all warnings before installation and usage. 1.1. General Safety Precautions ●Please carefully read this manual before any work is carried out on the product, and keep it located near the product for future reference.

  • Page 5: Transportation And Storage Precautions

    ●Do not expose the product to flammable or harsh chemicals or vapors. ● Do not paint any part of the product, include any internal or external components. ●Do not change any part of the product, especially the battery and cell. ●Besides connection under this manual, any other foreign object is prohibited to insert into any part of the product.

  • Page 6: Installation Precautions

    ● During transportation, severe impact, extrusion, direct sunlight, and rain should be avoided. ●Avoid fast or uneven movement during transport. ●There is a risk of damage to the product or injury to a person if the product falls, rolls over or shakes violently while being lifted or suspended. ●During the transportation and storage of the product, stacking is not allowed.

  • Page 7: Usage Precautions

    ●Use insulated tools. Do not wear metallic items such as watches, bracelets, etc. ●Please turn-off related circuit breakers before and during the installation to avoid electric shock. ●Do not connect any AC conductors or photovoltaic conductors directly to the battery pack. They can only be connected to the specified interface of the product, or are not allowed to be connected.

  • Page 8: Response To Emergency Situations

    ● If here's a circuit breaker between battery and inverter, the breaker is supposed to be on before power on the battery. ●Do not open the product, connect, or disconnect any wires when it's working to avoid electric shock. ●Battery needs to be recharged within 12 hours after fully discharged. ●Follow the regular maintenance requirements to maintain products.

  • Page 9: Qualified Personnel

    ●If a user happens to be exposed to the internal materials of the battery cell due to damage on the outer casing, the following actions are recommended. ● In case of inhalation: Leave the contaminated area immediately and seek medical attention. ●In case of contact with eyes: Rinse eyes with running water for 15 minutes and seek medical attention.
  • Page 10 and usage.

  • Page 11: Introduction

    2. Introduction Ecube Series is a lithium-iron-phosphate battery energy storage system developed and manufactured by RENON. This battery combined with equipment such as PCS, MPPT, EMS, etc., forms an energy storage system that can be used in various application scenarios such as spontaneous self use, peak shaving and valley filling, emergency power backup, etc.

  • Page 12: Specifications

    2.2. Specifications Item Specification Category Secondary Li-ion battery Battery System Model R-EC072LCB01 R-EC079LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P)10 IFpP/74/175/208/[(8S1P)11S] Battery Designation S]M/-20+50/95 M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)10S (8S1P)11S Nominal Capacity (Ah) Nominal Energy (kWh) 71.680 78.848...
  • Page 13 AC Input Power (kW) Communication CAN, RS485, WiFi、LTE、LAN Weight (kg/lbs)(Approx.) 1103/2432 1170/2579 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...
  • Page 14 Item Specification Category Secondary Li-ion battery Battery System Model R-EC086LCB01 R-EC093LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P) IFpP/74/175/208/[(8S1P) Battery Designation 12S]M/-20+50/95 13S]M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)12S (8S1P)13S Nominal Capacity (Ah) Nominal Energy (kWh) 86.016 93.184...
  • Page 15 Weight (kg/lbs)(Approx.) 1237/2727 1304/2875 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...
  • Page 16 Item Specification Category Secondary Li-ion battery Battery System Model R-EC100LCB01 R-EC108LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P) IFpP/74/175/208/[(8S1P) Battery Designation 14S]M/-20+50/95 15S]M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)14S (8S1P)15S Nominal Capacity (Ah) Nominal Energy (kWh) 100.352 107.52...
  • Page 17 Weight (kg/lbs)(Approx.) 1371/3023 1438/3170 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...
  • Page 18 Item Specification Category Secondary Li-ion battery Battery System Model R-EC115LCB01 R-EC122LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P) IFpP/74/175/208/[(8S1P) Battery Designation 16S]M/-20+50/95 17S]M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)16S (8S1P)17S Nominal Capacity (Ah) Nominal Energy (kWh) 114.668 121.856...
  • Page 19 Weight (kg/lbs)(Approx.) 1505/3318 1572/3466 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...
  • Page 20 Item Specification Category Secondary Li-ion battery Battery System Model R-EC129LCB01 R-EC136LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P) IFpP/74/175/208/[(8S1P) Battery Designation 18S]M/-20+50/95 19S]M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)18S (8S1P)19S Nominal Capacity (Ah) Nominal Energy (kWh) 129.024 136.192...
  • Page 21 Weight (kg/lbs)(Approx.) 1639/3613 1706/3761 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...
  • Page 22 Item Specification Category Secondary Li-ion battery Battery System Model R-EC143LCB01 R-EC151LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P) IFpP/74/175/208/[(8S1P) Battery Designation 20S]M/-20+50/95 21S]M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)20S (8S1P)21S Nominal Capacity (Ah) Nominal Energy (kWh) 143.360 150.528...
  • Page 23 Weight (kg/lbs)(Approx.) 1773/3909 1840/4057 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...
  • Page 24 Item Specification Category Secondary Li-ion battery Battery System Model R-EC158LCB01 R-EC165LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P) IFpP/74/175/208/[(8S1P) Battery Designation 22S]M/-20+50/95 23S]M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)22S (8S1P)23S Nominal Capacity (Ah) Nominal Energy (kWh) 157.696 164.864...
  • Page 25 Weight (kg/lbs)(Approx.) 1907/4204 1974/4352 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...
  • Page 26 Item Specification Category Secondary Li-ion battery Battery System Model R-EC172LCB01 R-EC179LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P) IFpP/74/175/208/[(8S1P) Battery Designation 24S]M/-20+50/95 25S]M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)24S (8S1P)25S Nominal Capacity (Ah) Nominal Energy (kWh) 172.032 179.200...
  • Page 27 Weight (kg/lbs)(Approx.) 2041/4500 2108/4647 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...
  • Page 28 Item Specification Category Secondary Li-ion battery Battery System Model R-EC186LCB01 R-EC194LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P) IFpP/74/175/208/[(8S1P) Battery Designation 26S]M/-20+50/95 27S]M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)26S (8S1P)27S Nominal Capacity (Ah) Nominal Energy (kWh) 186.368 193.536...
  • Page 29 Weight (kg/lbs)(Approx.) 2175/4795 2242/4943 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...
  • Page 30 Item Specification Category Secondary Li-ion battery Battery System Model R-EC201LCB01 R-EC207LCB01 Main Controller Module Model R-MC300-EC03 Battery Module Model R-EM25280-ECH01/R-EM25280-ECH02 Communication Box Model RN-CCB-EMS-001 IFpP/74/175/208/[(8S1P) IFpP/74/175/208/[(8S1P) Battery Designation 28S]M/-20+50/95 29S]M/-20+50/95 Battery Module Quantity Cell Combination (8S1P)28S (8S1P)29S Nominal Capacity (Ah) Nominal Energy (kWh) 200.704 207.872...
  • Page 31 Weight (kg/lbs)(Approx.) 2309/5090 2375/5236 Dimensions (mm/inches)(W*D*H) 1291.6*1168.8*2237/51*46*88 Charge Temperature (℃/℉） 0~50/32~122 Discharge Temperature (℃/℉） -20~50/-4~122 Noise Rating (dB) ＜70 @ 1m Ingress Protection Rating IP54 Designed Calendar Life 15 years Protective Class Ⅰ...

  • Page 32: Product Components Instruction

    2.3. Product Components Instruction Figure 2.1View of Front and rear of the battery Instructions Instructions Power Light Emergency Stop Operation Light Door Lock Fault Light Air-Conditioner 1) Power Light When the battery is turned on, this light will light up. 2) Operation Light When the battery is charging or discharging, this light will light up.
  • Page 33 3) Fault Light When the battery has warning or fault, this light will light up. 4) Emergency Stop When encountering an emergency situation, pressing this button will cause the battery to stop urgently. Rotate the red button according to the direction shown by the arrow after the emergency situation released.
  • Page 34 Figure 2.2View of Inside Front Door of R-EC186LCB01 Figure 2.3 View of Inside Front Door of R-EC207LCB01...

  • Page 35: Front Panel Interface Of Main Controller

    Instructions Main Controller Module Communication Box Battery Modules 2.4. Front Panel Interface of Main Controller Figure 2.4 Front Panel Interface of Main Controller Instructions Instructions Positive ON/OFF Button Negative Link Out Interface Breaker External LED Interface Emergency Power Off and 12V Auxiliary Activate Switch Power Supply Interface Operation LED Indicator...
  • Page 36 2) Negative Terminal type: Terminal for 70mm² power cable. Usage: connect to battery modules negative. 3) Breaker Power on/off the main circuit of the battery. When short-circuit occurs, it will cut off the main circuit automatically. 4) Activate Switch Twist the switch right to active the main controller circuit, after power on, please twist it to upside, otherwise the output will be disable.
  • Page 37 Used to communicate and control the battery modules, it’s been connected by the manufacturer, do not change the cable or any connection of it. 9) External LED Interface Terminal type: 6pin 3.81mm terminal. Usage: Reserved for future use, leave them open. 10) Emergency Power Off and 12V Auxiliary Power Supply Interface Terminal type: 6pin 3.81mm terminal Usage: Pin1&2 and Pin 3&4 are connected to the EPO (Emergency Power Off)

  • Page 38: Rear Panel Interface Of Main Controller

    LCD-485A Reserved for communicating with LCD LCD-485B CANH Communicate with Communication Box. CANL 12) Debug Interface Terminal type: 6pin 3.81mm terminal Usage: Reserved for future use.leave them open. 2.5. Rear Panel Interface of Main Controller Figure 2.5 Rear Panel Interface of Main Controller Instructions Instructions Address Dail Switch of Main...
  • Page 39 1) Address Dial Switch of Main Controller for this product, the address on main controller must be set as code 1. The illustration of dialing as shown below: Code Dial Switch Position Definition Set as the main controller 1 Don’t change it 2) Fan Interface Terminal type: 6pin 3.81mm terminal Usage: Reserved for future use, leave them open.
  • Page 40 Usage: Reserved for future functions, RS485-1 and RS485-2, leave them open. 7) Parallel Communication Interface Terminal type: RJ45 *2 Usage: Reserved for future use, leave them open. 8) Battery System Positive Terminal type: Terminal for 70 mm² power cable Usage: connect to inverter’s positive terminal. 9) Battery System Negative Terminal type: Terminal for 70 mm²...

  • Page 41: Interface Of Communication Box

    2.6. Interface of Communication Box Figure 2.6 Interface of Communication Box Instructions Instructions WiFi Antenna Port Communication Port LTE Antenna Port LED-DIN-Relay Port Power Switch Function Dail Switch HV-EN Switch Address Dail Switch LAN Communication Interface HV-POWER-IN Port USB Port LV-POWER-IN Port LED Indicator 1) WiFi Antenna Port...
  • Page 42 4) HV-EN Switch This is the High voltage enable button. After pressing it, the system will output high voltage.For system startup, please refer to chapter 3.8.2 to use it. 5) LAN Communication Interface LAN communication interface is reserved to communicate with the external EMS device.
  • Page 43 communication fault DCDC/PCS fault or protection occurs or Rapid Blinking communication fault Other fault or protection occurs or Slowly Blinking communication fault Connected to the Cloud Platfrom by WIFI Blinking(0.25s WIFI communication fault on/0.25s off) Blinking(1s on/1s LTE communication fault off) Network ●...
  • Page 44 485_5B humidity detector 485_5G ISO_5V_PW8 Isolated 5V/0.1A output to ISO_GND8 temperature and humidity detector 9) LED-DIN-Relay Port This port is used for LED light control、DIN input、and other function. Terminal name Usage LED1+ Control the Power Light on the door of cabinet LED1- LED2+...
  • Page 45 Turning specific position of dial switch to ON for setting different Communication Box special function, defined as below: Position Dial Switch Position Usage Dial up the first DIP switch if need. Impedance matching for CAN1 communication. Dial up the second DIP switch if need. Impedance matching for CAN2 communication.
  • Page 46 Set as battery system 8 Set as battery system 9 Set as battery system 10 12) HV-POWER-IN Port This port is used to reserved for other functions in future. Ignore it. 13) LV-POWER-IN Port This port is used to supply low voltage power. Terminal Name Usage...

  • Page 47: Interface Of Battery Module

    2.7. Interface of Battery Module Figure 2.7 Interface of Battery Module Instructions Instructions Battery Module Positive Link Out Interface Battery Module Negative Fan Power Interface Link In Interface Led Indicator 1) Battery Module Positive Terminal type: Terminal for 70mm² power cable. Usage: connect to cell positive of the main controller or negative of previous battery module, it has been connected by the manufacturer, do not change it.
  • Page 48 4) Link Out Interface Used to communicate and control next battery module, for the last battery module, there is a small terminal connector needed. All of them have been connected by the manufacturer, do not change the cables or any connection. 5) Fan Power Interface Supply power to the fan，have been connected by the manufacturer, do not change the cables or any connection of them.

  • Page 49: Installation And Usage

    3. Installation and Usage 3.1. Safe Handling Guide 1) Familiar with the product Be careful when unpacking the system. The product is heavy. Don't lift them with a pole. The weight of the product can be found in the chapter "Specifications".

  • Page 50: Installation Location

    4) Safety gear It is recommended to wear the following safety gear when dealing with the product: Insulated gloves Safety goggles Safety shoes 3.2. Installation location Make sure that the installation location meets the following conditions: ●The floor is flat and level. ●There are no flammable or explosive materials.

  • Page 51: Package Items

    Expansion M12*150 Fasten base to floor screw User manual Ecube Series Provide technical guidance 3.4. Prerequisite of Installation Location The cabinet must be installed on the concrete base, which should be pre-built by following these requirement： 1) Recommend height of base is at least 300mm for preventing plant invasion.
  • Page 52 Figure 3.1 The parameter of the concrete base-1 Figure 3.2 The parameter of the concrete base-2...

  • Page 53: Transfer Of Battery Cabinet

    3.5. Transfer of Battery Cabinet Transportation process of the battery cabinet: carefully and accurately transport the cabinet to the base (forklift is needed). Figure 3.3 The battery cabinet Figure 3.4Transportation by forklift...

  • Page 54: Fasten The Battery Cabinet

    3.6. Fasten the Battery Cabinet The battery cabinet must be installed on the concrete base as shown below refer to chapter 3.4. The process of fasten the system is: 1) Check the 8 fixed screw holes with diameter of 16mm on the bottom of the cabinet.

  • Page 55: Confirmation Of Connections

    allowable bending radius. 2) The cable’s temperature should be raised by electric heating when the cable’s temperature is lower than the temperature specified in the building code. 3) The cable must have enough margin in the cable box, cable well and facility switch.
  • Page 56 Figure 3.6 Schematic diagram of copper bar position Using a proper wire connect it to the PE copper bus of the system. 2) Connecting the power wire Based on system configuration, conncet to the positive port and negative port. 3) Connecting the communication wire Based on system configuration, connected the communication box to EMS, PCS, MPPT, transformer or other devices.

  • Page 57: Usage Guide

    3.8. Usage Guide 3.8.1. Confirmation before energization 1) Make sure that the battery modules, main controller, and Communication Box in the enclosure have no deformation or displacement. 2) Make sure the PE cables are connected securely. 3) Make sure the power cables are connected securely. 4) Make sure the communication cables are connected securely.

  • Page 58: Stop Operation

    Figure 3.7 Activation of the system 3.8.3. Stop Operation Stopping operation of battery: 1) Step 1: turn off the HV-EN bottom on the Communication Box. 2) Step 2: turn off the Communication Box power switch. 3) Step 3: press the power button of the main controller. 4) Step 4: turn off the power breaker of the main controller.

  • Page 59: Renon Cloud Platform Configuration

    Please dial up the second and sixth of function DIP switches as shown below,before Wi-Fi configuration： Figure 3.10 Function dial switch 1) Download and install RENON APP from Google or Apple Store by searching RenonSmart. Figure 3.11. Install RENON APP...
  • Page 60 2) You may acquire the Register Code from your installer for new account registration. If you already had an account, you may use it to login the APP directly otherwise you need to create an account. Figure 3.12 Start the APP & Create an account & Sign in 3) Turn to the page account, click the Network, then click BLE model,and following by the instruction of network setting for BLE configuration.
  • Page 61 Figure 3.14 Connecting Bluetooth of Product 5) Enter the SSID and password of your private WI-FI for connecting master controller to your private WI-FI. Make sure the Wi-Fi light on Communication Box will shine constantly. If the WiFi light on the communication box flashes quickly, it indicates abnormal WiFi communication.

  • Page 62: 4-Ghz Configuration

    3.9.2 4-GHz Configuration This method only requires inserting a valid SIM card and does not require any other settings to connect the battery system to the Renon Cloud Platform. If use LTE function, please contact the installer to confige the APN.
  • Page 63 Figure 3.19 Monitoring Device 2) Insert the useful 4GHz SIM Card to the SIM card port. When the system is powered on,it will connect to the Renon Cloud Platform automatically.

  • Page 64: Troubleshooting & Maintenance

    4. Troubleshooting & Maintenance 4.1. Regular maintenance 1) Check the battery modules every 3 months to verify if there are damages. 2) Check the battery modules every 3 months to verify whether the operating parameter is normal or there is no abnormal heating. 3) Check whether the system has abnormal noise every 3 months.

  • Page 65: Troubleshooting

    4.3. Troubleshooting Phenomenon Investigation & troubleshooting The LED light of battery is RED Try to check whether there are some Alarms Refer to chapter 3.8.2 to check the steps of starting battery Unable to turn on the battery Try to charge the battery by the activation charging function of the inverter when power is on Make sure the antenna is screwed properly.
