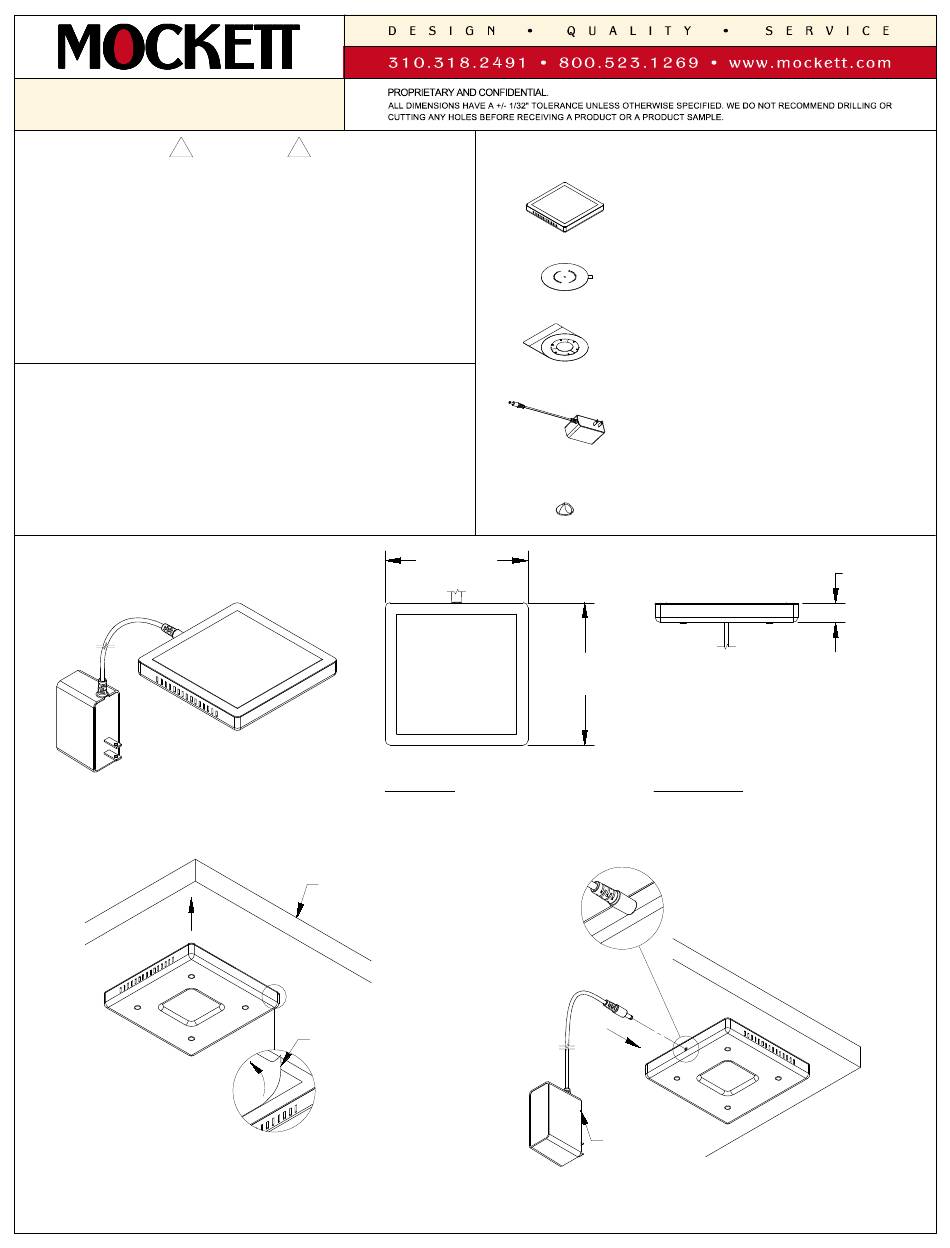

WCS12
!
·
To reduce the risk of electric shock use only indoors.
·
If any malfunction occurs, do not attempt to disassemble or
repair.
·
Avoid placing the charger in a high temperature environment
or near fire.
·
Allow enough clearance for part operation.
·
Do not place metal on the wireless charging area.
·
Metal objects, bank cards, digital IC cards should not be
placed between the charger and the phone to avoid damage.
·
To ensure proper performance, only use the included power
adapter with unit.
·
Do not put wireless charging accessories directly on the unit.
SPECIFICATIONS
·
6 ft. cord length.
·
Wireless output is 10W MAX.
·
Power adapter is 1-3/16" X 2-13/16" X 1-23/32".
·
The charging range is 25/32" [20.00mm] MIN. and 1-31/32"
[50.00mm] MAX.
·
Mobile device must be equipped with a wireless charging
receiver (Wireless charging accessories not included.). Check
mobile manufacturer for compatibility.
1
Determine the position and location of the WCS12 under the
work surface. Peel off pre-installed adhesive backing and
press down for a few seconds to ensure WCS12 is secure.
DO NOT place the unit where the cable can get strained or
trapped.
2024.12.10
WARNING
!
TOP VIEW
Work Surface
(Not Included)
(Pre-Installed)
Adhesive
Backing
4-11/16"
[119.00mm]
4-11/16"
[119.00mm]
2
Connect the power adapter to the WCS12. Plug the power
adapter into a nearby outlet.
1
TABLE OF CONTENTS
. . . . . . . . . . . 1X WCS12
. . . . . . . . . 1X Resonator
. . . . . . . . . . 1X Alignment
. . . . . . . . 1X Power Adapter
. . . . . . . . 2X Wire Manager
FRONT VIEW
Power
Adapter
Pad
Sensor Template
5/8"
[16.00mm]
Advertisement
Related Manuals for Mockett WCS12
Summary of Contents for Mockett WCS12
- Page 1 To reduce the risk of electric shock use only indoors. · If any malfunction occurs, do not attempt to disassemble or ... 1X WCS12 repair. · Avoid placing the charger in a high temperature environment or near fire.
- Page 2 Sensor Template LED Light Position the alignment sensor template on the area above Move the alignment sensor template until all (6) LEDs light the WCS12. (Pre-Installed) Adhesive Backing Peel off the pre-installed adhesive backing that is located on Remove the part of the alignment sensor template with the the back of the alignment sensor template.
- Page 3 WCS12 (Pre-Installed) Adhesive Backing Wire Manager Determine the position and location of the (2) wire managers under the work surface. Peel off the pre-installed adhesive backing and install by pressing down for a few seconds to Feed the powder adapter wire into the wire managers.
