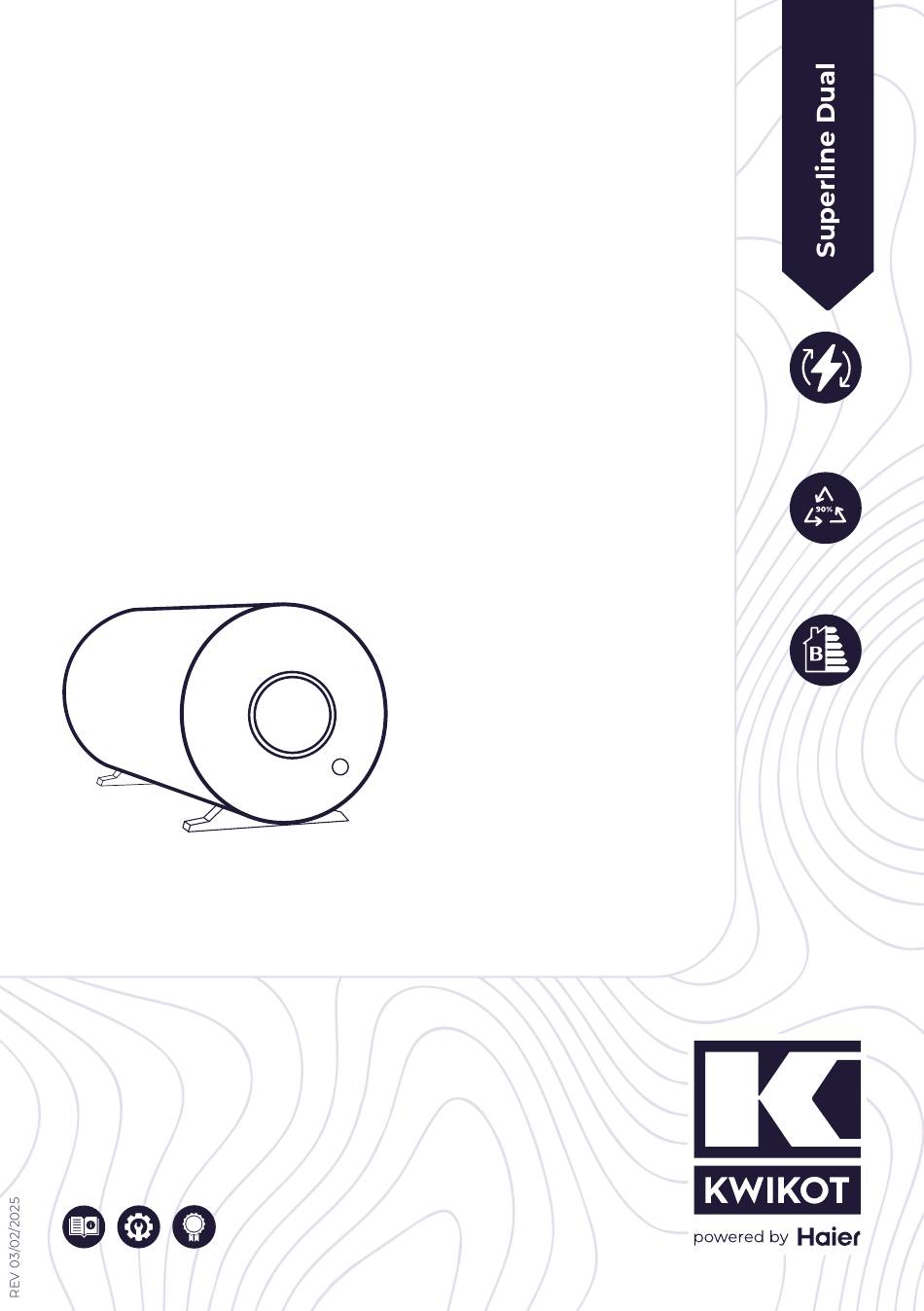

Installation and Warranty Manual
Electric Water Heaters
Renewable
Energy Ready
90% Recyclable
Materials
B Energy
Rating
Superline Dual 400 and 600
50L 100L 150L 200L 250L
www.kwikot.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the KWIKOT Superline Dual 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Haier KWIKOT Superline Dual 400

  • Page 1 Installation and Warranty Manual Electric Water Heaters Renewable Energy Ready 90% Recyclable Materials B Energy Rating Superline Dual 400 and 600 50L 100L 150L 200L 250L www.kwikot.com...
  • Page 2 Installation specification - Horizontal and floor Superline Dual Water Heater (400 kPa and 600kPa) - SANS 10254 installation compliant Earth bonding strap between hot and cold water Distribution board Vacuum breaker Water heater 300mm Hot water outlet Vacuum breaker circuit breaker height (hot 300mm height side)
  • Page 3 Installation specification - Vertical Superline Dual Water Heater (400 kPa and 600kPa) - SANS 10254 installation compliant Renewable energy ready Connection on back end dome Service access to the 2nd anode Earth bonding strap Vacuum between hot and breaker cold water 300mm Safety valve height (hot...
  • Page 4 Plumbing All installations of fixed electric water heaters (EWH) must comply with SANS 10254 and should be installed under supervision of a qualified plumber. 1. Flush the cold water supply line before connecting to the water heater. 2. Fit the Kwikot drain cock and Kwikot safety valve, which is supplied with the electric water heater, to the correct positions as indicated on the water heater.
  • Page 5 Wall mounted EWH requires a minimum of 250mm either side of the EWH to access the fixations on the EWH brackets. NB. When using gravity fed water supply ensure that there is an expan- sion relief installed on the cold water supply to the EWH. Electrical All electrical installations must comply with SANS 10142 code for the wiring of premises.
  • Page 6: Product Warranty

    Product Warranty Kwikot warrants that its electric water heaters are free from manufacturing defects. This is the only warranty given by Kwikot in respect of its electric water heaters. Kwikot gives no other warranties or representations, whether express or implied. No amendments or additions to the warranty shall be binding on Kwikot.
  • Page 7 3. All products included in the installation comply with SANS approvals, including the pressure control valve. 4. The electric water heater has been used for water which meets Kwikot’s specifications. 5. Where an electric water heater is wall mounted in the horizontal position, the brackets (feet) must be moved 90°...
  • Page 8 The warranty does not cover • Elements burnt out through commissioning without water or excessive calcification (lime-scaling) • Cosmetic damage that does not effect the operation of the water heater. • Burnouts due to loose connections. • Fair wear and tear. •...
  • Page 9 Water Specification and Servicing Requirements When installing a heat pump with a Kwikot, electric water heater, a Kwikot installation kit (HP-KIT-2) which is available from Kwikot must be used, in order not to invalidate the electric water heater warranty. Anode needs to be inspected &...
  • Page 10 Notes Installation and Warranty Manual - Superline Dual Electric Water Heaters...
  • Page 11 Notes...
  • Page 12 www.kwikot.com Support Warranty and Service za_insure@kwikot.com 0861 594 568 Admin, Payments, Product and Sales Queries kwikot.marketinginfo@kwikot.com 011 897 4600 Branches Gauteng Western Cape 3 Aberdeen Road, 15 Purdey Road, Industrial Sites, Sheffleld Business Park, Benoni Phillippi, Cape Town (011) 897 4600 (021) 690 2700 Eastern Cape KwaZulu-Natal...
