Electric Water Heater
ES50V-TF7(EU)
ES80V-TF7(EU)
ES30V-VH3(EU)
ES50V-VH3(EU)
ES80V-VH3(EU)
ES100V-VH3(EU)
ES30V-VH1(EU)
ES50V-VH1(EU)
ES80V-VH1(EU)
ES100V-VH1(EU)
This product is for home use only and should not be used for industrial or commercial purposes.
Instruction Manual
Please read this manual carefully before use.
Please keep it properly for future reference.
ES50V-TF7W(EU)
ES80V-TF7W(EU)
ES30V-VH3W(EU)
ES50V-VH3W(EU)
ES80V-VH3W(EU)
ES100V-VH3W(EU)
Advertisement
Related Manuals for Haier TF7 Series
Summary of Contents for Haier TF7 Series
- Page 1 Electric Water Heater Instruction Manual ES50V-TF7W(EU) ES50V-TF7(EU) ES80V-TF7W(EU) ES80V-TF7(EU) ES30V-VH3W(EU) ES30V-VH3(EU) ES50V-VH3W(EU) ES50V-VH3(EU) ES80V-VH3W(EU) ES80V-VH3(EU) ES100V-VH3W(EU) ES100V-VH3(EU) ES30V-VH1(EU) ES50V-VH1(EU) ES80V-VH1(EU) ES100V-VH1(EU) Please read this manual carefully before use. Please keep it properly for future reference. This product is for home use only and should not be used for industrial or commercial purposes.
- Page 2 1. Safety Precautions (Please Read Before Use)...........3-4 2. Specification - Packing List.................5-7 3. Installations....................7-9 4. Operations....................10-12 5. Cleaning and Maintenance................13 6. Transportation and Storage................13 7. Product Disposal..................13 8. Fault Clearance....................14 9. Product fiche....................15...
- Page 3 Safety Preautions (Please Read Before Use) Symbolic Interpretation Caution Warning It is necessary to allow disconnection The appliance is intended to be of the appliance from the supply after permanently connected to the Warning Warning installation. The disconnection may water mains and not connected by be achieved by having the plug a hose-set.
- Page 4 Safety Preautions (Please Read Before Use) Symbolic Interpretation Caution Warning Do not repair, maintain, dismantle or Children should be supervised to modify the water heater without ensure that they do not play with professional maintenance persons. the appliance. This appliance can be used by Use independent outlets and make children aged from 3 years and them reliably earthed.
- Page 5 Specification - Packing List External Dimensions Front View Rear View Side View Section View TF7 Serie TF7W Serie VH3 Serie e1=270 e1=190 VH3W Serie VH1 Serie A Hot water outlet B Cold water inlet C Inner liner D Heating tube E Temperature tube F Magnesium rod G Wall bracket...
- Page 6 Model a1(mm) b1(mm) c1(mm) d1(mm) e1(mm) f1(mm) g1(mm) h1(mm) ES30V-VH3W(EU) ES50V-VH3W(EU) ES80V-VH3W(EU) ES100V-VH3W(EU) 1230 ES30V-VH1(EU) ES50V-VH1(EU) ES80V-VH1(EU) ES100V-VH1(EU) 1230 Note: The allowable error range of the above parameters (dimensions) is ±10%. Technology Datas Rated Rated Voltage Rated Frequency Rated Pressure Waterproof Level Temperature All models...
- Page 7 Packing List Name Quantity Electric Water Safety Valve Instruction Expansion Heater(unit) (unit) Model Manual(unit) hook(unit) TF7/TF7W/VH3/VH3W/VH1 Series Installations Installations Cautions When installing the water heater, it should leave a certain amount of space (at least 300mm) to facilitate future maintenance. If the water heater is embedded in the gusset plate during installation, the gusset plate near the maintenance cover side should be movable to facilitate disassembling the maintenance cover during maintenance.
- Page 8 Installation Methods 360mm Figure 1 Installation Schematic - Vertical Installation (All Series) TF7/TF7W Series 190mm 270mm Hot water outlet VH3 Serie Safety valve 200mm Cold water inlet Nozzle Hot water VH3W/VH1 Series Cold water Water mixing valve valve Figure 2 valve Figure 3 Installation Schematic - Horizontal Installation (for TF7/TF7W/VH1/VH3W Series)
- Page 9 For TF7/TF7W/VH3/VH3W/VH1 Series, the vertical installation method is as follows: Refer to Figure 1 of the Installation Schematic, and drill two holes in the wall using an percussion drill to match the accessory expansion hook according to the dimensions shown in Figure 2.
- Page 10 Operations Operations After installation, because of the inner tank without water, you must open the inlet valve of tap water and outlet of water heater for the first time. The water mixing valve must be adjusted to the maximum hot water gear, and the water outlet shall be closed after the nozzle or other water outlets continu- ously discharge water (it means that the water in the container is full at this time).

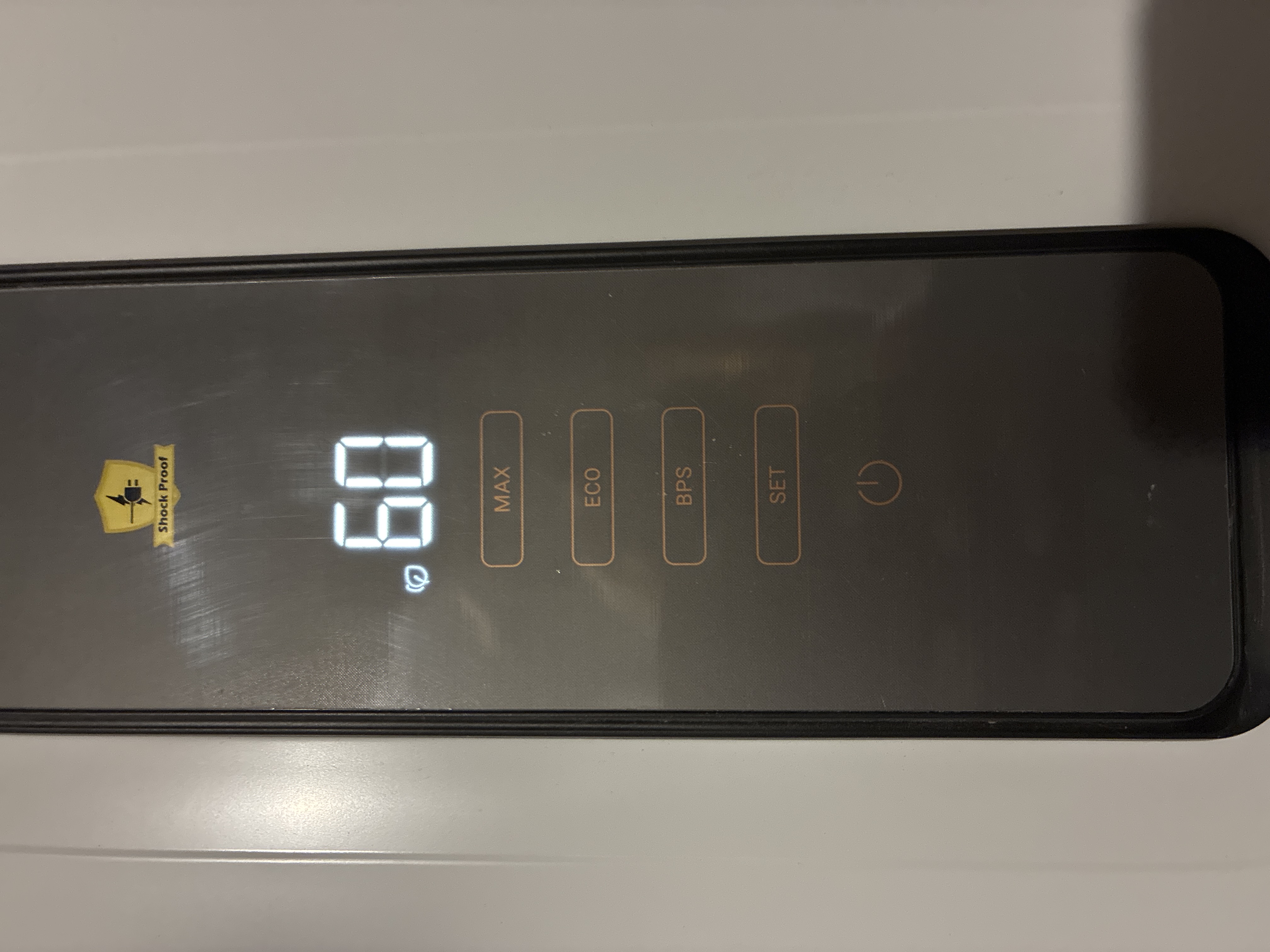

- Page 11 MAX Mode ( TF7/TF7W Series) Press the "MAX" button in the state of power-on, entering the MAX mode and illuming the corresponding icon « ». In this state, the two tanks are heated to the setting temperature, and the setting temperature range is 35-75°C. After heating, the machine will automatically exit the MAX mode and return to the normal mode.
- Page 12 Wi-Fi mode setting IN APP PAIRING PROCEDURE Step 1 wnload the hOn app on the stores Step 2 Step 3 Follow pairing instructions in the hOn App Precautions for Use 1. Do not turn on the power supply before the water heater is filled with water, protecting the machine from damage.
- Page 13 If there is no water flowing out, please contact Haier After-sales Service Department for repair or replacement. The safety inspection, removing the scale in heating pipe in time and replacing the magnesium rod shall be carried out by professionals regularly.
- Page 14 Fault Clearance Phenomenons Items to be Confirmed Solutions Whether the water supply system is cut off or the water pressure is too Check No water flow out Whether the water place is blocked and whether the hot water valve is Check and clean opened 1.
- Page 15 Product fiche Trade mark Haier Model ES50V-TF7(EU) ES80V-TF7(EU) ES50V-TF7W(EU) ES80V-TF7W(EU) Load profile Energy efficiency class Energy efficiency(%) 41.8 41.8 Annual electricity consumption(kWh) 1251 1229 1251 1229 Thermostat temperature setting(°C) Sound power level indoors(dB) Specific precautions Refer to the manual Daily electricity consumption(kWh) 7.163...
