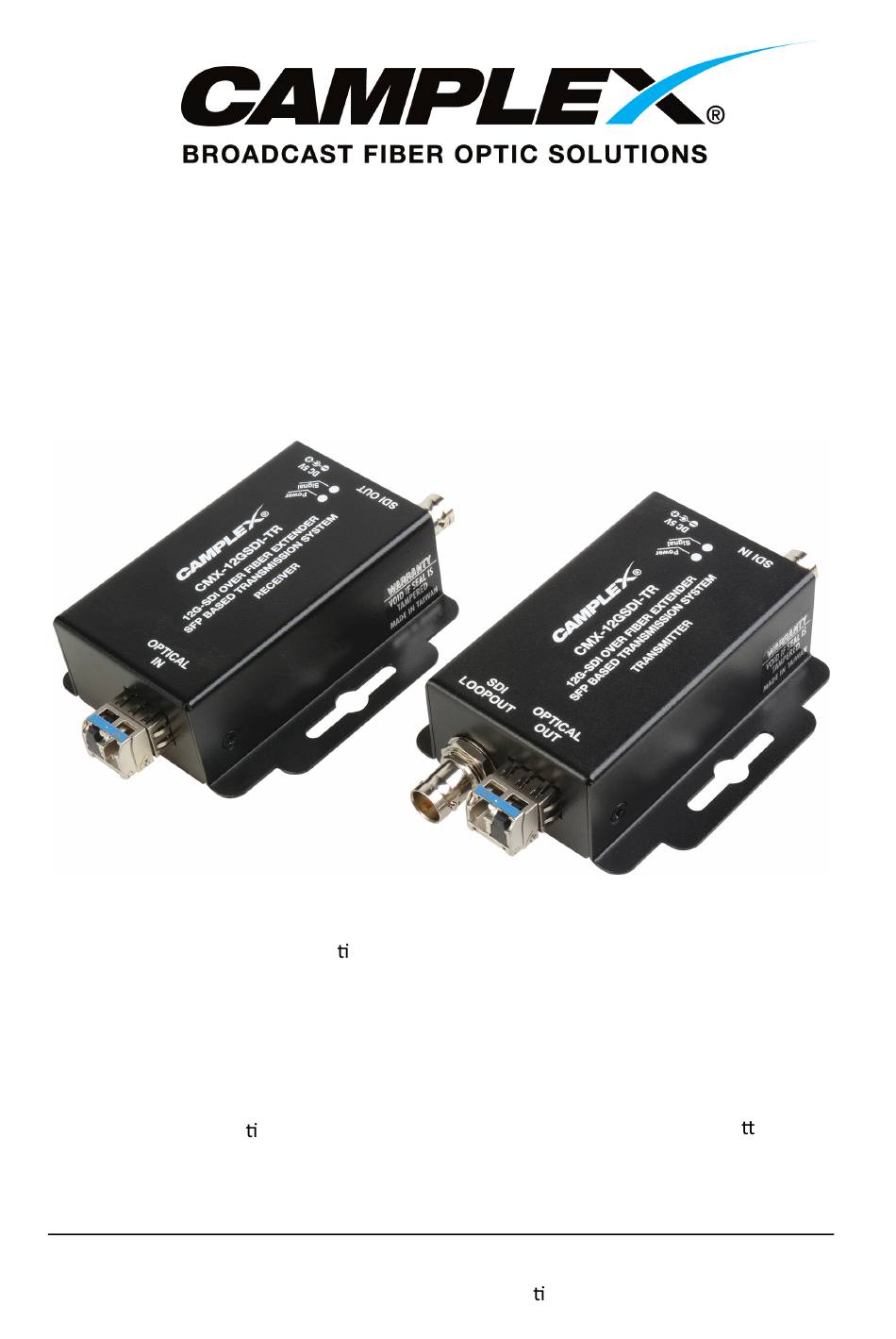

12G SDI Over Singlemode Fiber Extender
FEATURES
• Extends up to 6.25 miles over Singlemode Fiber
• SFP Based for Faster Connec vity
• Meets SMPTE ST 2082‐1 & ST 2082‐2 Standards
• 1 Reclocking SDI Loop Out on TX
• Embedded Audio
• Immune to RP‐198 Interference
• Input Signal Detec on LED
• Cable EQ
• Rugged Metal Housing
USER MANUAL
d
Camplex CMX‐12GSDI‐TR
CAMPLEX
812 Kings Highway • Sauger es, NY
12477
www.camplex.com
INCLUDES
Two 5VDC/2A Power Supplies
One 12G‐SDI Transmi er
One 12G‐SDI Receiver
Two LC Singlemode SFPs
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Camplex CMX-309FAB 24.576MB
Summary of Contents for Camplex CMX-309FAB 24.576MB
- Page 1 USER MANUAL Camplex CMX‐12GSDI‐TR 12G SDI Over Singlemode Fiber Extender FEATURES • Extends up to 6.25 miles over Singlemode Fiber • SFP Based for Faster Connec vity • Meets SMPTE ST 2082‐1 & ST 2082‐2 Standards • 1 Reclocking SDI Loop Out on TX • Embedded Audio INCLUDES ...
- Page 2 5 Loopout 6 Output 5VDC/2A Power Supply CMX‐12GSDI‐TR RECEIVER RX Front Rear 1 2 4 5 3 1 SDI Input—Connect to Display 2 Power LED 3 Signal LED 4 Power Supply Connec on 5 Input 5VDC/2A Power Supply Camplex CMX-12GSDI-TR Page 2...
- Page 3 Supports SMPTE 424M / HDTV (2.97Gbps and 2.97/1.001Gbps) SMPTE 2082‐1 / HDTV (5.94Gbps and 5.94/1.001Gbps) SMPTE 2082‐2 / HDTV (11.88Gbps and 11.88/1.001Gbps) Audio Embedded Audio Dimensions/ Weight 2.9 x 2.9 x 1.0 in / 7.4 oz Camplex CMX-12GSDI-TR Page 3...
- Page 4 Should this product fail to be in good working order within the one year warranty period, Camplex, at its op on, will repair or replace the unit, provided the unit has not been subjected to accident, disaster, abuse, or any unauthorized modifica ons including sta c discharge and power surges.
