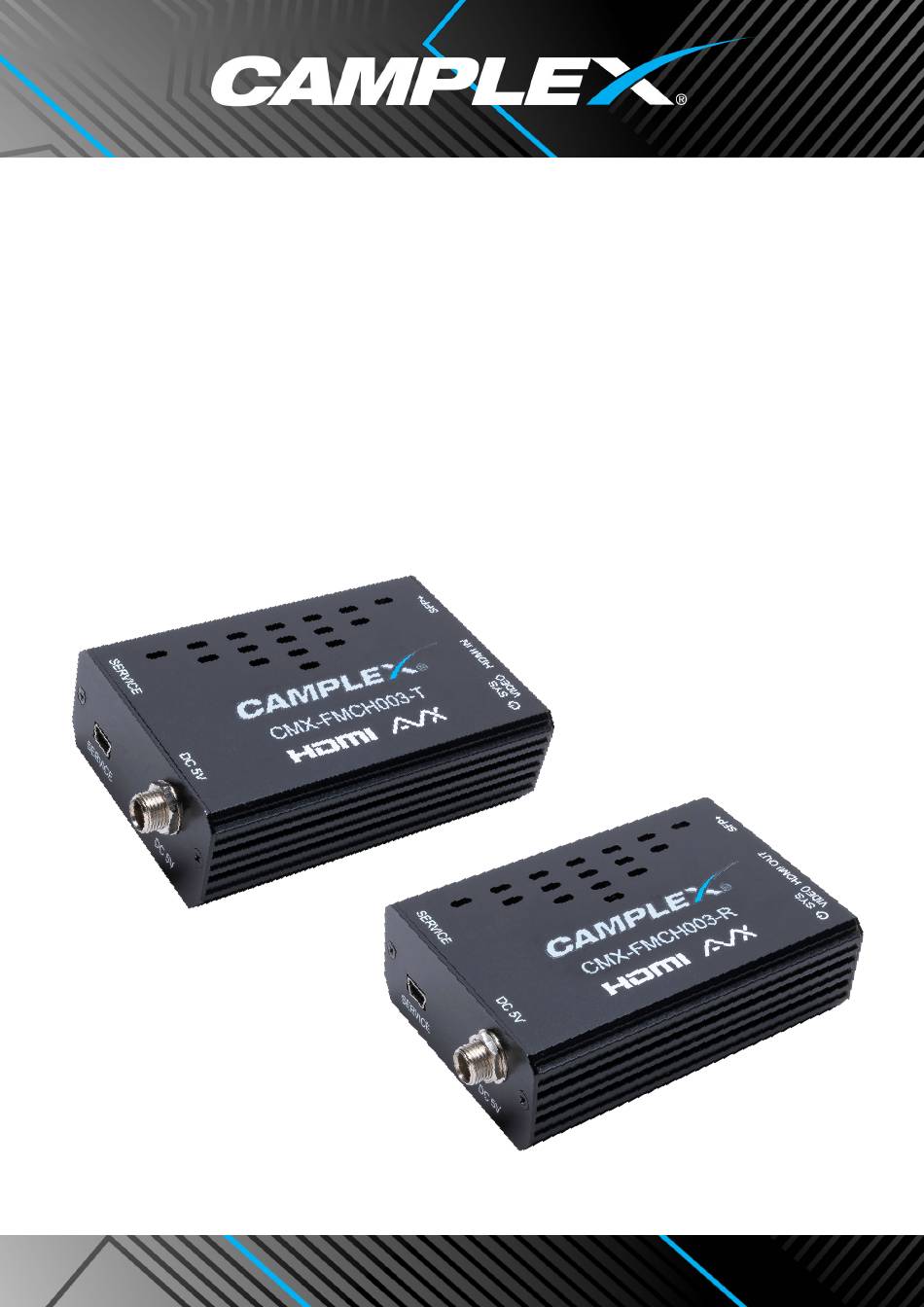

- Page 1 User Manual and Specifications CMX-FMCH003 4K60 HDMI over Fiber Extender Set...
- Page 2 CMX-FMCH003 4K60 HDMI over Fiber Extender Set SPECIFICATIONS Interfaces Interfaces Input Port 1 10GbE LAN (SFP+) Input Port 1 HDMI (Type A) Output Port 1 HDMI (Type A) Output Port 1 10GbE LAN (SFP+) Bi-directional Port Bi-directional Port Control I/O 1 USB (Mini-B) Control I/O 1 USB (Mini-B)
- Page 3 4K60 HDMI over Fiber Extender Set INTRODUCTION The Camplex CMX-FMCH003 extender set is designed for high quality 4K AV extension over Single Mode or Multimode fiber (SFP+ dependent) with very minimum latency. The compact size of the units allows for greater flexibility during installation.
- Page 4 CMX-FMCH003 4K60 HDMI over Fiber Extender Set Operation Controls and Functions Front Panel: Power LED: This LED will illuminate to indicate the unit is on and receiving power System LED: This LED will illuminate to indicate that the system is stable and ready to process audio/video streams Video LED: This LED will illuminate to indicate that the video source is stable, and streaming is in process...
- Page 5 CMX-FMCH003 4K60 HDMI over Fiber Extender Set Connection Diagram: Power Supply SERVICE DC 5V HDMI IN SFP+ VIDEO Media Player HDMI Input HDMI Output HDMI IN SFP+ Smart TV VIDEO Power Supply SERVICEDC 5V...
- Page 6 CMX-FMCH003 4K60 HDMI over Fiber Extender Set Video Specifications Supported: Supported Resolutions (Hz) 720x400p@70/85 640x480p@60/72/75/85 720x480i@60 720x480p@60 720x576i@50 720x576p@50 800x600p@56/60/72/75/85 848x480p@60 1024x768p@60/70/75/85 1152x864p@75 1280x720p@60 1280x768p@60/75/85 1280x800p@60/75/85 1280x960p@60/85 1280x1024p@60/75/85 1360x768p@60 1366x768p@60 1400x1050p@60 1440x900p@60/75 1600x1200p@60 1680x1050p@60 1920x1080i@50/60 1920x1080p@24/25/30 1920x1080p@50/60 2560x1440p@60RB 2569x1600p@60RB 3840x2160p@24/25/30 3840x2160p@50/60 (4:2:0) 3840x2160p@24 HDR10 3840x2160p@50/60 (4:2:0) HDR10...
- Page 7 CMX-FMCH003 4K60 HDMI over Fiber Extender Set Audio Specifications Supported: HDMI Input / 10 GbE Output: LPCM: Max Channels 8 Channels Sample Rate (kHz) 32, 44.1, 48 kHz Bitstream: Supported Formats Standard & High Definition Cable Specifications Supported: Cable Length: 1080p 4K30 4K60...
- Page 8 Data rates higher than 5.3Gbps or above 225MHz TMDS clock but below 10.2Gbps 4K60 (4K UHD+ Video) 4K@50/60Hz (4:4:4, 8-bit) 4K@50/60Hz (4:2:0, 10-bit HDR) Data rates higher than 10.2Gbps 812 Kings Highway | Saugerties, NY 12477 | (800) 445-7568 | www.camplex.com 100% Employee Owned Division of Tower Products Incorporated...
