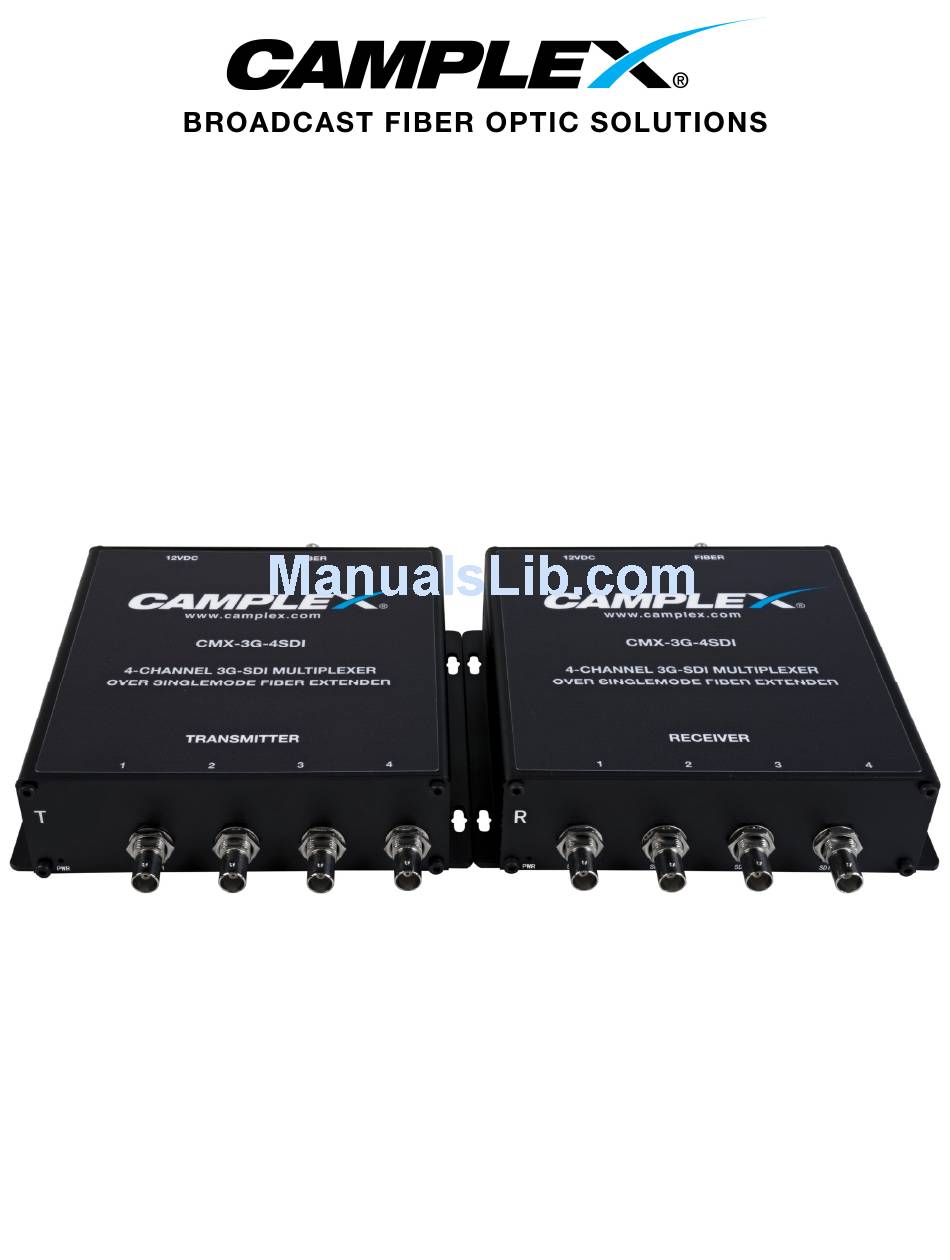

- Page 1 USER MANUAL CMX-3G-4SDI 4-Channel 3G-SDI Multiplexer Over Singlemode Fiber Extender...
- Page 2 Fiber Extender Kit The Camplex CMX‐3G‐4SDI mul plexer converts four 3G‐SDI camera inputs to one singlemode fiber sup‐ por ng SMPTE 424M 3Gbps HD‐SDI transmission up to 6 miles. The transmi er and receiver feature industry standard ST fiber connectors, quality 3G‐SDI BNC connectors, and a DC power jack.
- Page 3 CMX-3G-4SDI Features Transmi er 1 2 3 4 5 6 7 8 1 Power Indicator LED 5 SDI Input 4 with LED Indicator 2 SDI Input 1 with LED Indicator 6 ST Singlemode Fiber Op c Output 3 SDI Input 2 with LED Indicator 7 ...
- Page 4 CMX-3G-4SDI Features Receiver 1 2 3 4 5 6 7 8 1 Power Indicator LED 5 SDI Output 4 with LED Indicator 2 SDI Output 1 with LED Indicator 6 ST Singlemode Fiber Op c Output 3 SDI Output 2 with LED Indicator 7 ...
- Page 5 CMX-3G-4SDI Set Up Instructions 1. Secure the units in a safe loca on, where they will not be subject to impact and where there is room around the unit so nothing will interfere with the fiber op c cabling causing it to bend sharply in a ght radius in any way which can severely affect the signal transfer.
- Page 6 There are no user‐serviceable parts inside the unit. If the unit requires service contact your au‐ thorized dealer, or an authorized repair service company. Camplex 812 Kings Highway Sauger es, NY 12477 www.camplex.com...
