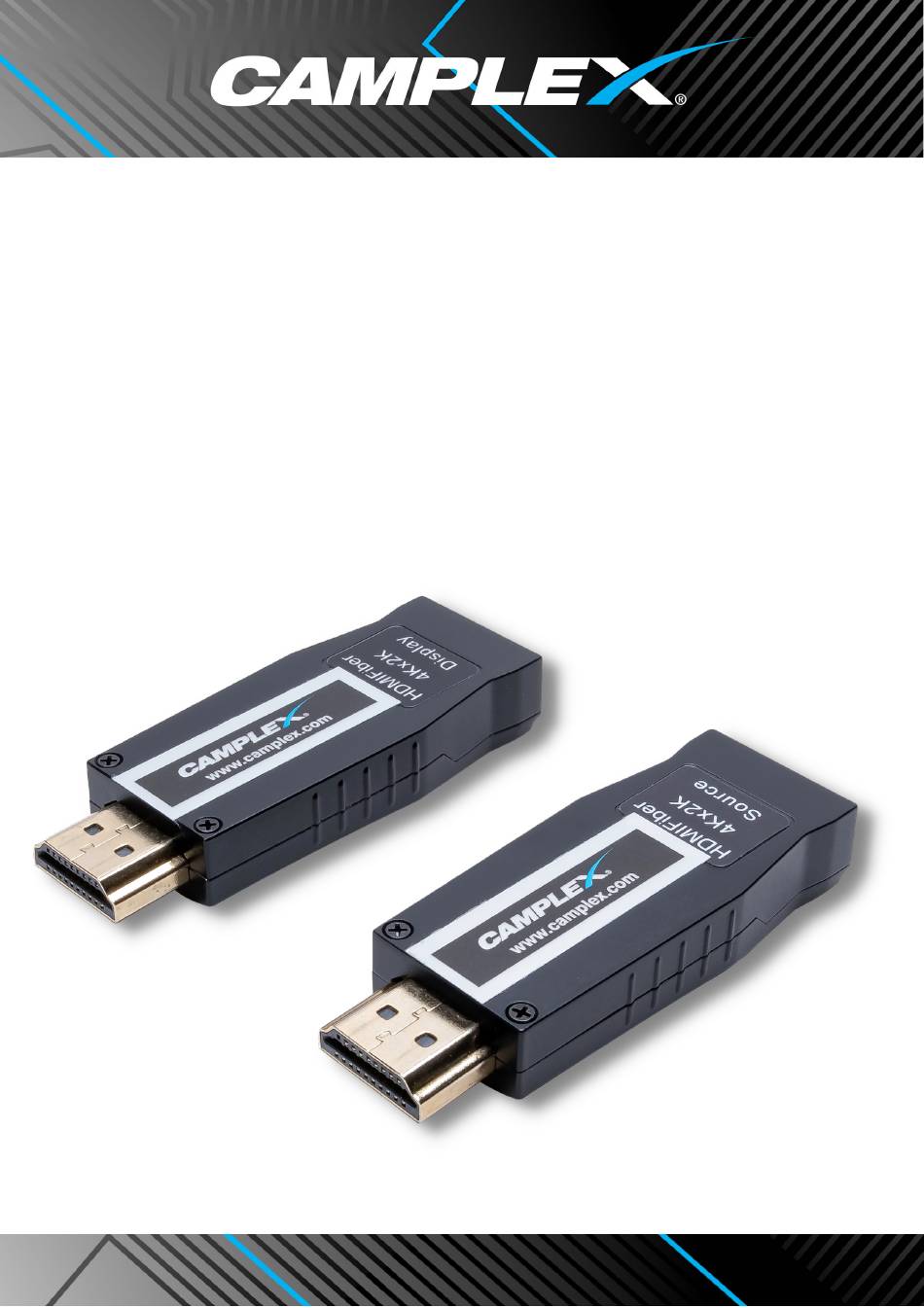

  • Page 1 User Manual and Specifications CMX-HDMI-SM-TR 4K/30Hz HDMI Over Single-Core Single Mode Multimode Fiber Extender...
  • Page 2 CMX-HDMI-SM-TR DESCRIPTION The Camplex CMX-HDMI-SM-TR is a 4K/30Hz HDMI over Single-Core SM/MM compact fiber extender that is pluggable directly into your device. Extend your 4K video source over fiber up to 300m to your desired display with this incredibly compact set. The set also promotes secure data with negligible RFI/EMI emissions or loss of video quality due to no copper conductor present.
  • Page 3 CMX-HDMI-SM-TR CONNECTION DIAGRAM: Connect the CMX-HDMI-SM-TR transmitter, marked "source" on the unit, to the video source. Connect the CMX-HDMI-SM-TR receiver, marked "display" on the unit, to the display. Connect the source and display units utilizing a Single Mode or OM3 Multimode LC fiber cable.
  • Page 4 To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit WARRANTY 1 Year 812 Kings Highway, Saugerties, NY 12477 | 1.800.445.7568 | sales@camplex.com 100% Employee Owned Division of Tower Products Incorporated...
