Camplex CMX-HDMI-SFPL User Manual

Hdmi over fiber sfp extender sfp-based transmission system
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
FEATURES
• Transmission Up to 10km over Single Mode Fiber
• Single Fiber Simplex Operation
• Video Resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
• EDID Management
• HDMI Loop Out
• Audio Embedding on Tx, Audio Extraction on Rx
• Bi-Directional Infrared Control
• LED Indicators for Power, Optical, & HDMI
• Locking Power Adapters
• CE, RoHS Certified
INCLUDES
Two 5VDC/2A Power
Two SFP Modules
Two Pair IR Blasters
Two RS232 Connectors
USER MANUAL
d

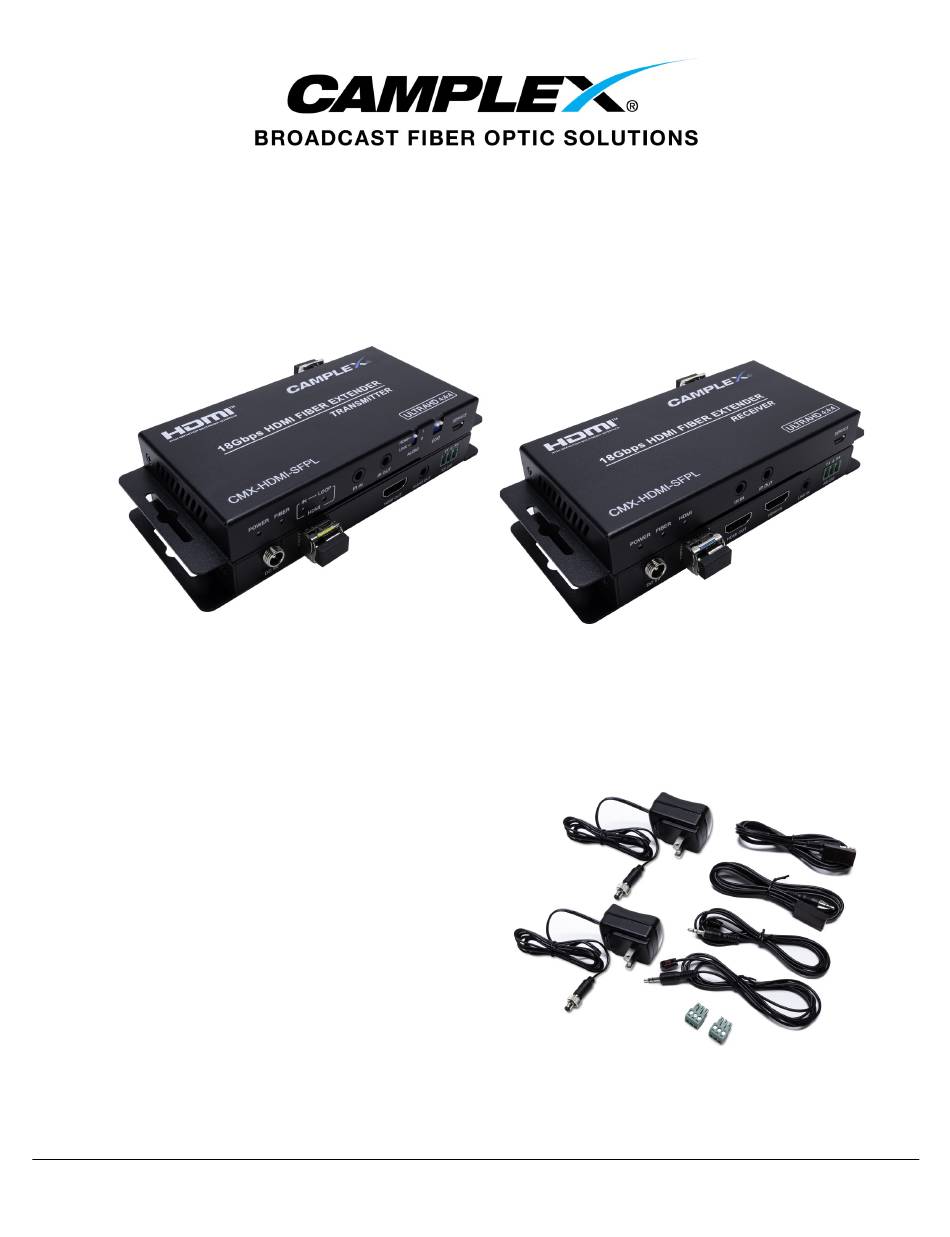

Camplex CMX-HDMI-SFPL
HDMI over Fiber SFP Extender
SFP-Based Transmission System
CAMPLEX Broadcast Fiber Solutions
812 Kings Highway • Saugerties, NY 12477
www.camplex.com
